Washing and post-processing
Washing and post-processing equipment for 3D prints: the SHINING 3D FabWash washing station, HeyGears UltraCraft Wash, the Graphy Tera Harz Spinner centrifuge for direct-printed aligners and the Tera Harz Care ultrasonic cleaner with heater. Automated washing standardizes the process and protects the surface of the prints. Equipment price on request, demo available.
Products · 4
Why washing must be standardized
After printing, uncured resin remains on the print and in its pores. Manual rinsing is not reproducible – time, temperature and solvent contamination vary. Washing too briefly leaves a tacky surface, washing too long weakens thin walls. An automatic unit runs the same cycle every time.
Units
- FabWash – smart washing station with automatic print release and wash-time selection; for the AccuFab-D1s build platform, there is the FabWash adapter.
- HeyGears UltraCraft Wash – up to 20 parts per 4–6 min. cycle, isopropanol (99%) or ethanol (95%), also mixes 1 kg resin bottles.

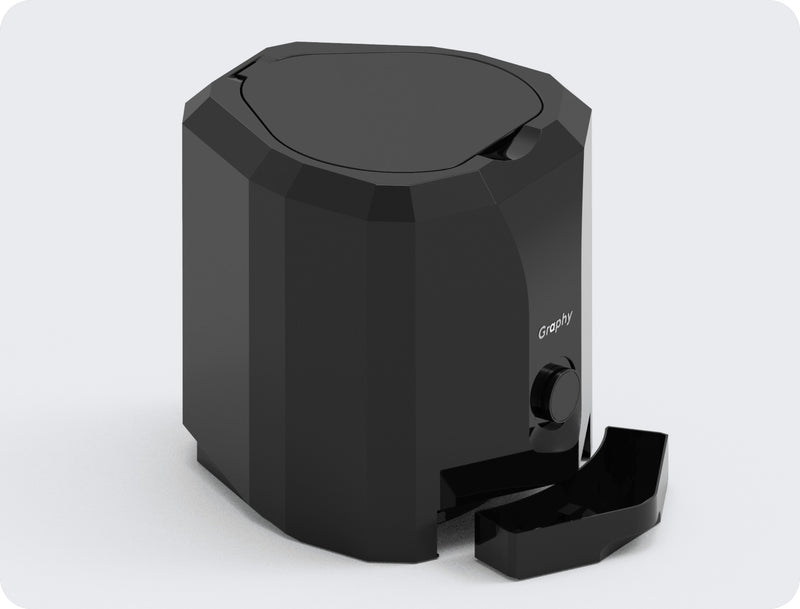

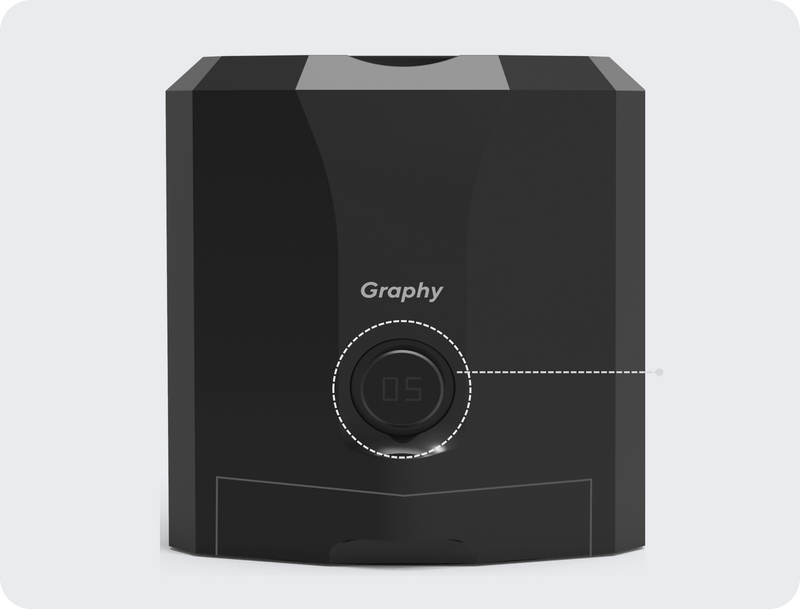

- Tera Harz Spinner – heated centrifuge that removes excess resin from up to 16 aligners without washing in alcohol.

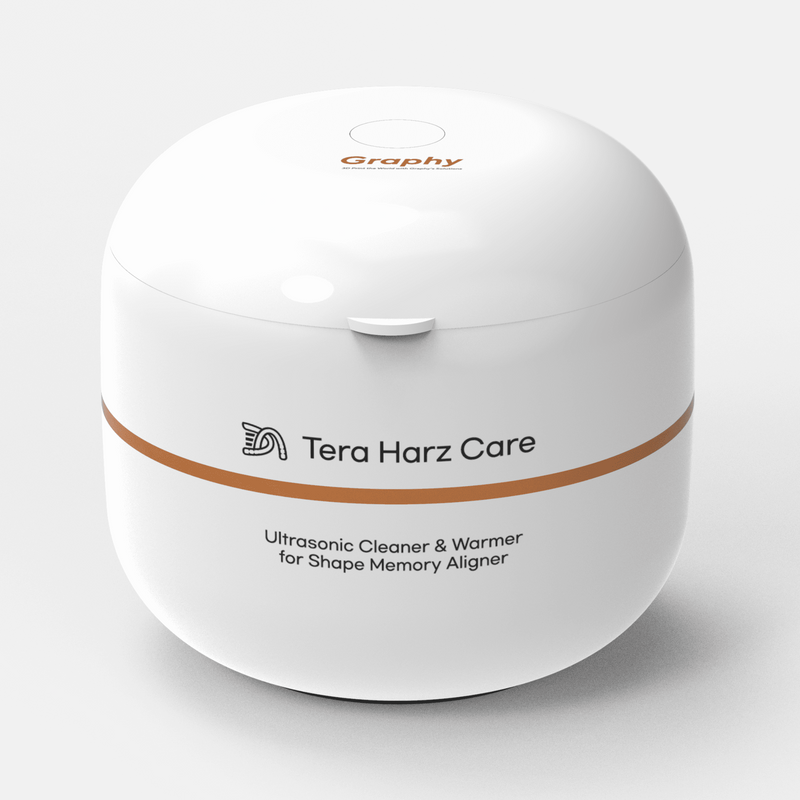

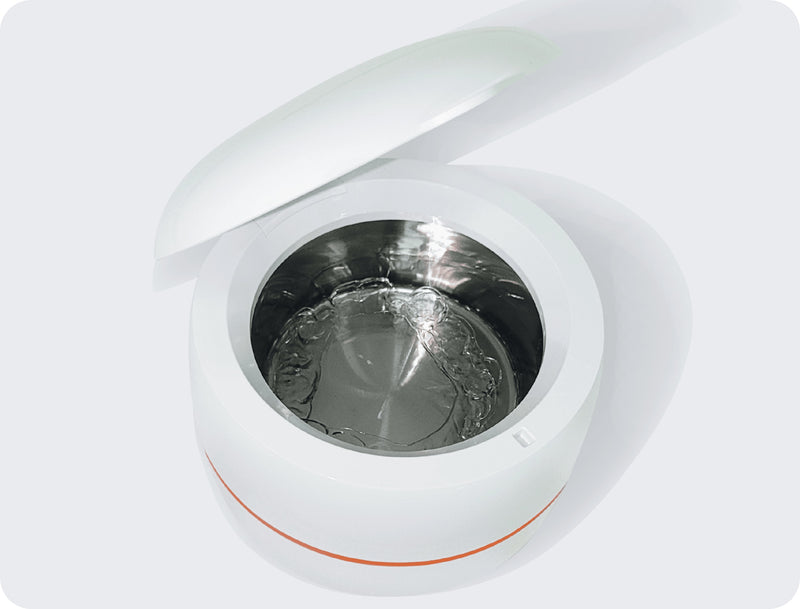

- Tera Harz Care – compact ultrasonic cleaner and warmer for shape-memory aligner care at the clinic and at home.
How to choose
Choose according to your printer and resins: for the HeyGears system – UltraCraft Wash, for the AccuFab series – FabWash, for Graphy aligners – Spinner. After washing, prints are dried and cured – see UV curing units.
Inquiry and demo
Price on request. We will prepare an offer together with a printer and curing equipment, and after purchase we will help set up the process.
Frequently asked questions
What liquid is used to wash 3D prints?
Most commonly isopropanol (IPA). For HeyGears UltraCraft Wash, the manufacturer allows 99% isopropanol or 95% ethanol. Graphy aligners are cleaned in a centrifuge without alcohol. Always follow the resin manufacturer's instructions.
Why is a centrifuge used for aligners?
The manufacturer of Graphy Tera Harz TC-85DAC aligners specifies removing excess resin with a centrifuge (Tera Harz Spinner), as washing in alcohol may alter the material's properties.
How many parts fit in the UltraCraft Wash?
Up to 20 parts per 4–6 min. cycle.
How much does a washing unit cost?
Price on request. Contact us and we will send an offer.
