Tera Harz Spinner Resin Centrifuge
Graphy Tera Harz Spinner
€413,22 excl. VAT
Market prices for comparison: from €540,00 excl. VAT
Other sellers’ public prices for the same model (not a previous IMMT price): Esadental 540 €, OrthoDepot 599 € – public prices excl. VAT, same model, checked 2026-10-13
Price incl. VAT · VAT invoice with every order
DPD / UPS courier delivery · usually 2–7 business days
EU companies with a valid VAT number buy without VAT – enter your VAT number at checkout.

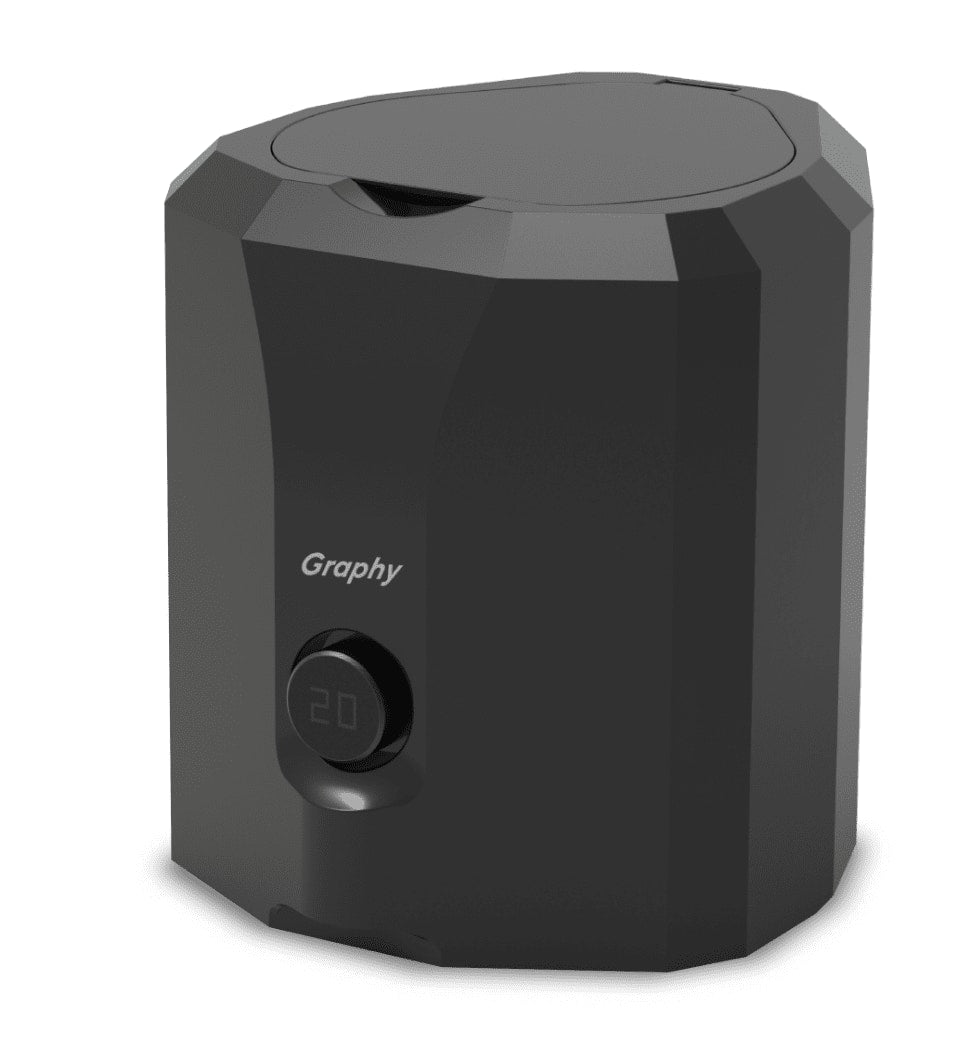

Tera Harz Spinner – a Graphy centrifuge for removing uncured resin from directly 3D-printed shape memory aligners (SMA, Shape Memory Aligner™). The unit is used after printing and reduces manual cleaning work.A powerful, quiet spin drive combined with internal all-round heating (Graphy...
Description- Consultations
- Help choosing the configuration and materials
- Delivery
- In Lithuania, the Baltics and worldwide
Questions about this product?
Our product specialist will help you choose the right configuration.
Description
Tera Harz Spinner – a Graphy centrifuge for removing uncured resin from directly 3D-printed shape memory aligners (SMA, Shape Memory Aligner™). The unit is used after printing and reduces manual cleaning work.
A powerful, quiet spin drive combined with internal all-round heating (Graphy patented technology) effectively removes residual resin within minutes. Up to 16 aligners can be hung on the centrifuge hooks at once – they are easy to attach and remove. Rotation stops smoothly, and a safety brake engages when the door is opened.
Operation is simple: digital display, knob and smart control dial with a notification system; cycle time is adjustable from 1 to 10 min. Drained resin residue is automatically collected in the bottom drawer, making the unit easy to maintain.
- Up to 16 aligners per cycle
- Heating during operation
- Adjustable duration – 1–10 min
- Rotation speed – 500 rpm
- Bottom drawer for collecting resin residue
Robust design
More efficient resin removal thanks to a powerful, quiet spin system with internal heating from all sides.

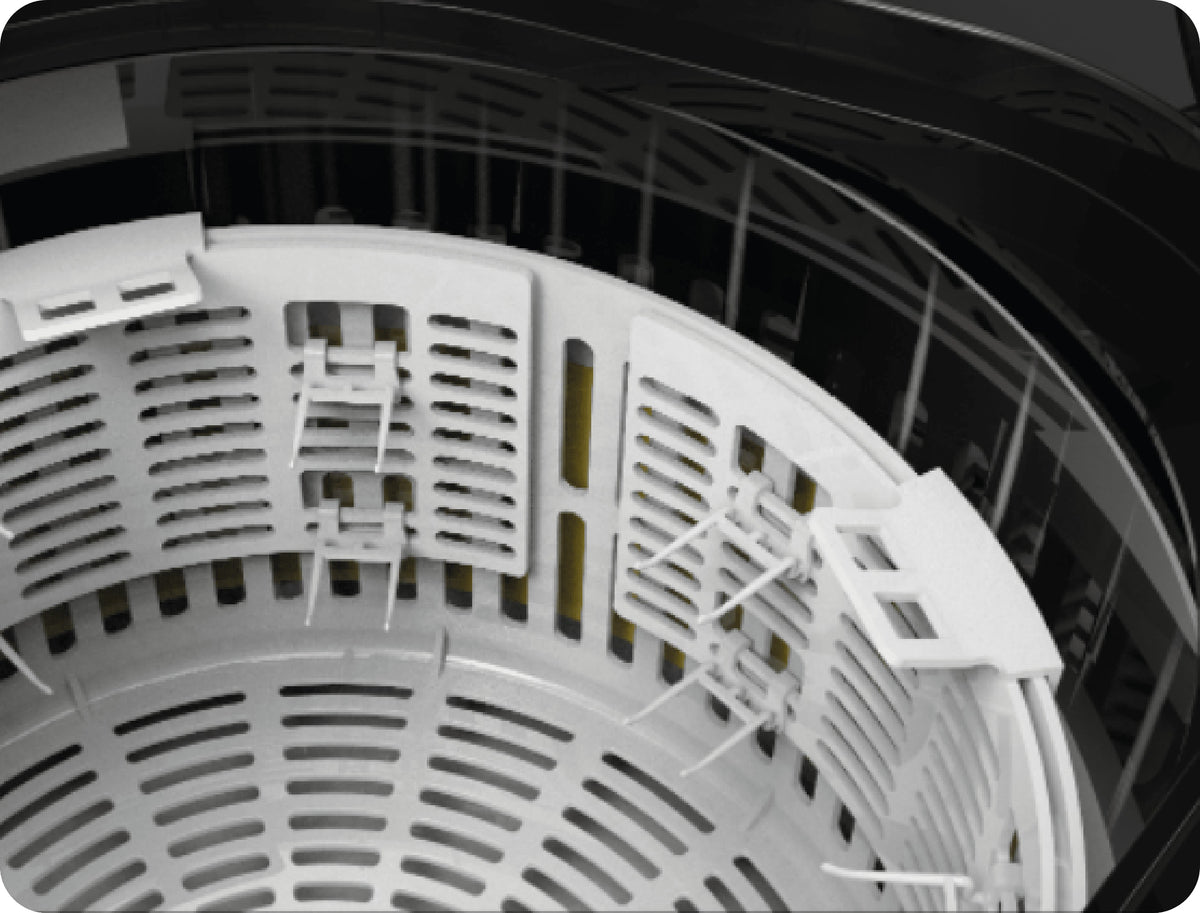

Spacious, versatile inner chamber

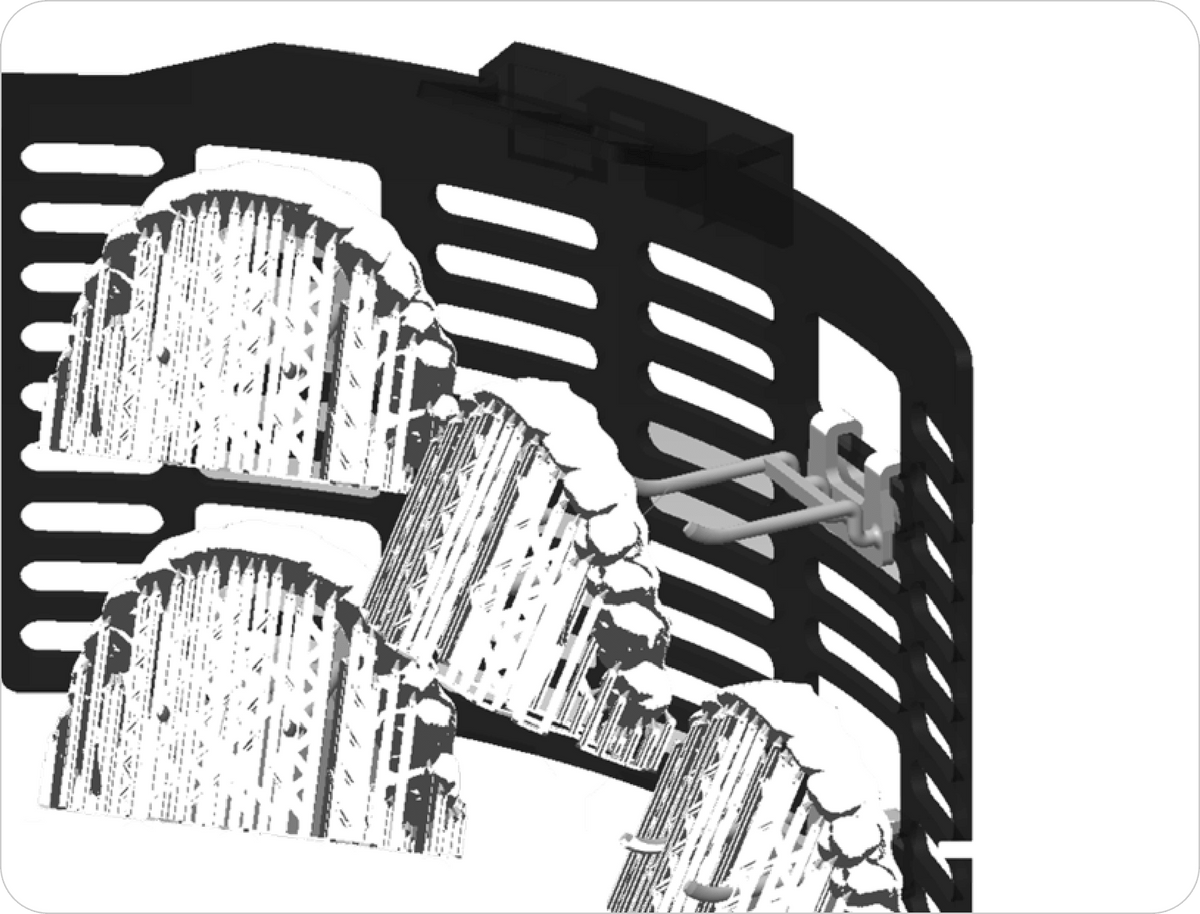

Fast and easy to use – up to 16 SMA can be mounted at once, and spinning stops safely and smoothly, giving you full control of the process.

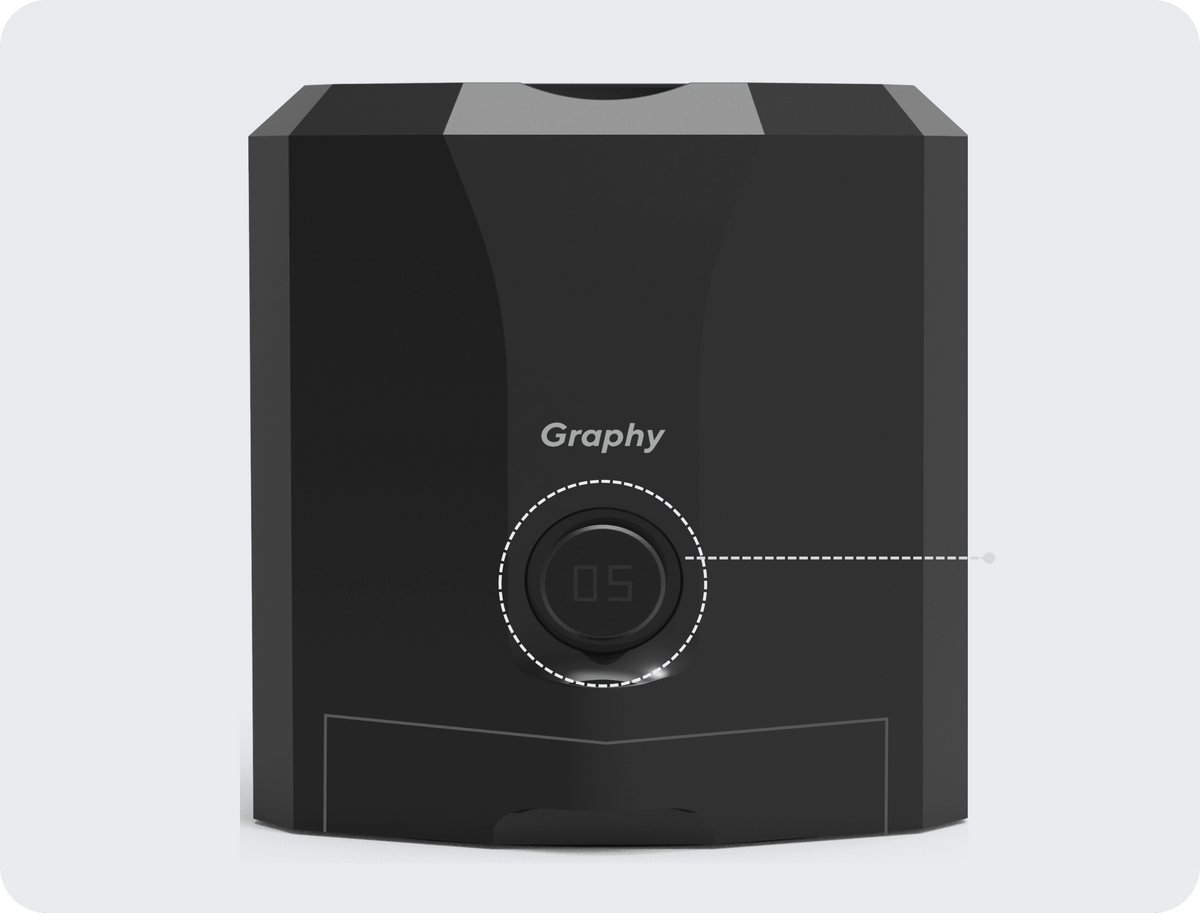

Simple, intuitive monitoring
Digital display, knob control, smart dial (notification system) and simple on / off.

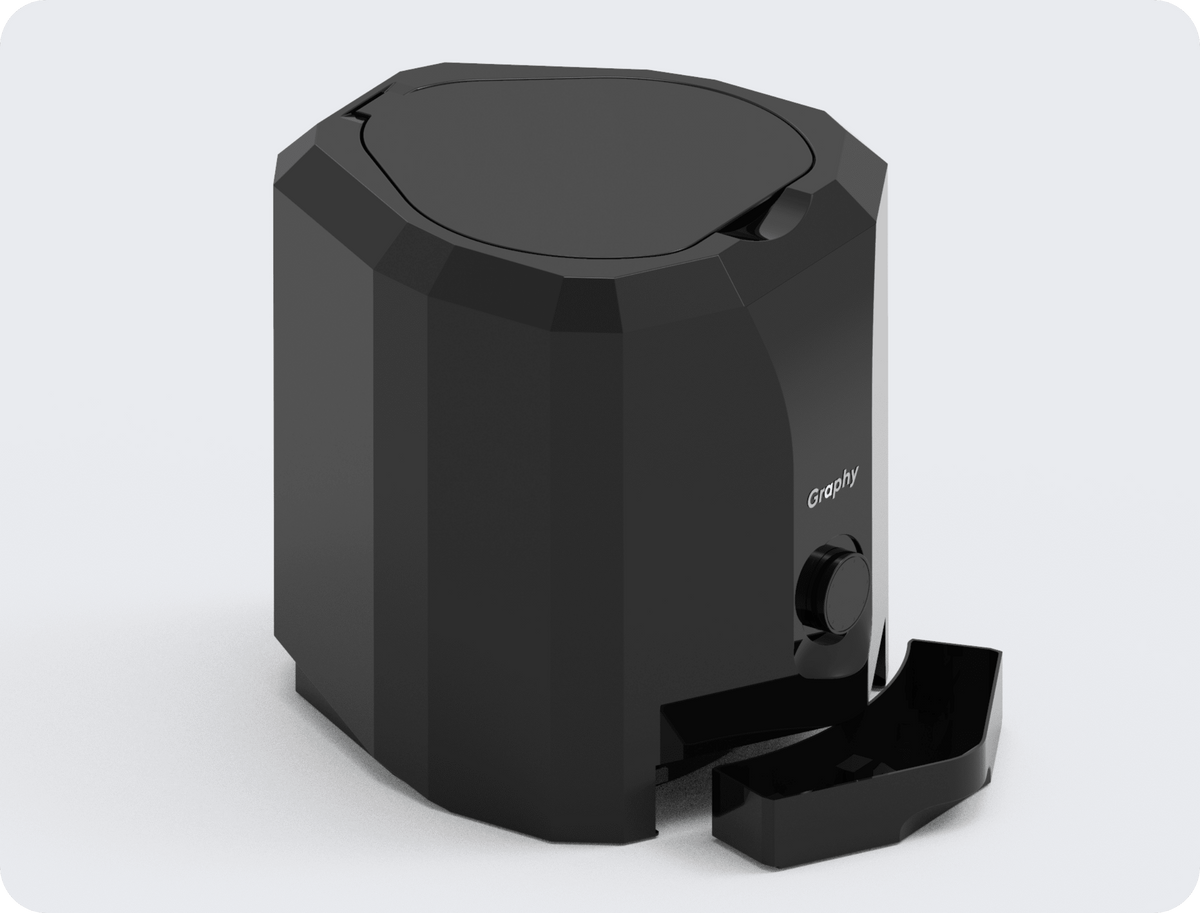

Practical, economical design

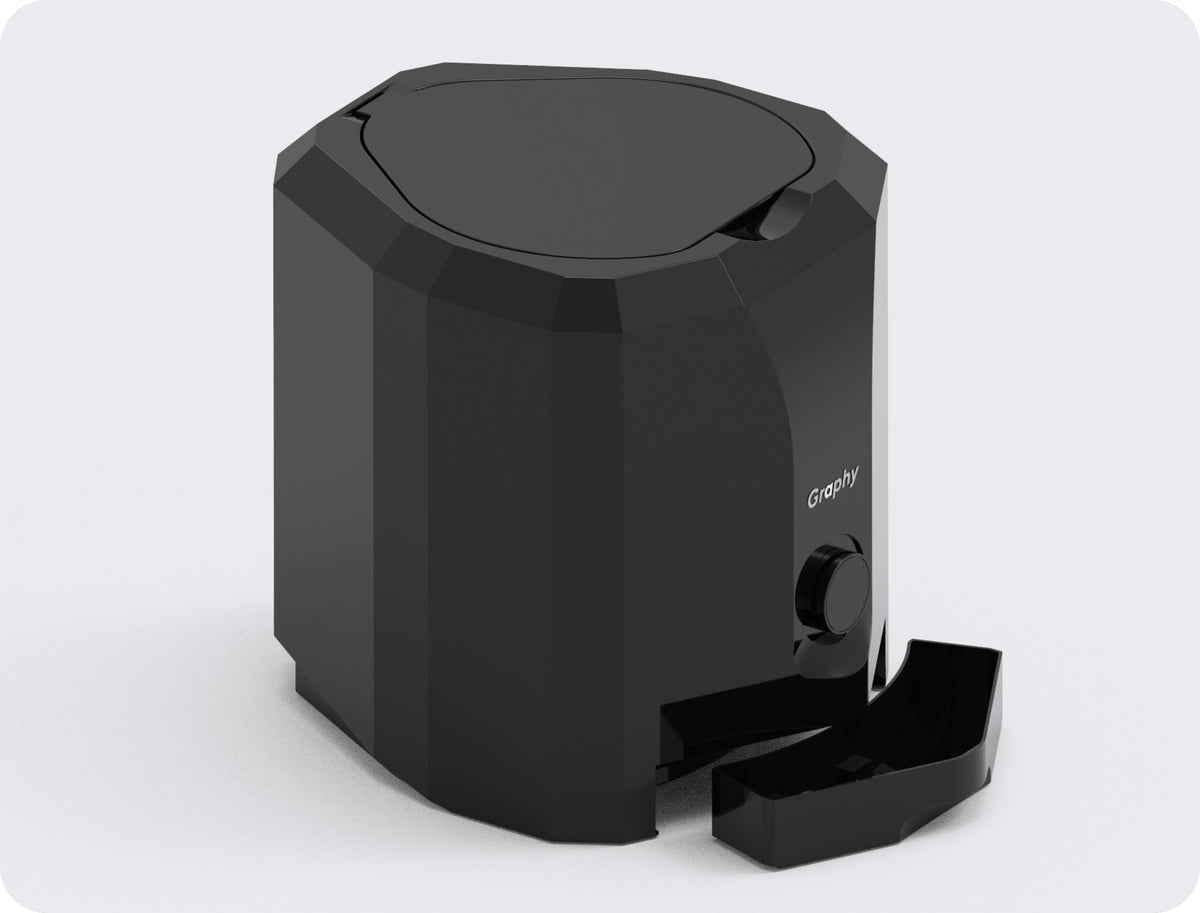

Resin residue is automatically collected in the bottom drawer, making maintenance easy.
Technical specifications
Technical data
| Property | Unit | Tera Harz Spinner | Notes |
|---|---|---|---|
| Product name | – | Tera Harz Spinner (Model: THSP) | |
| Information | – | Aligner centrifuge (resin residue removal) | |
| Dimensions | mm | 390 × 450 × 430 | W × D × H |
| Weight | kg | 14 | |
| Capacity | pcs | Max. 16 aligners | Simultaneous loading |
| Time range | min | 1–10 (adjustable) | Adjustable time |
| Features | – | Digital Knob Control; internal heating (active during operation); safety stop ~10 s | |
| Rotational speed | rpm | 500 | |
| Power consumption | W | 50 | |
| Rated voltage | V / A | 100–240 V, 5 A | |
| Warranty | – | 1 year |
Frequently asked questions
What is the Tera Harz Spinner centrifuge for?
For removing uncured resin from directly 3D-printed shape-memory aligners (Graphy SMA) immediately after printing – it replaces much of the manual cleaning work.
How many aligners fit in one cycle?
Up to 16 aligners on the centrifuge hooks; the cycle time is adjustable from 1 to 10 min, and internal heating from all sides helps remove resin residue within a few minutes.
Is the unit safe and easy to maintain?
Rotation stops smoothly, a safety stop is triggered when the door is opened, and drained resin is collected in a bottom drawer that only needs to be emptied periodically.
Is additional washing needed after the centrifuge?
The Spinner removes most of the residue; the final aligner post-processing (washing, curing in the Tera Harz Cure chamber) is carried out according to the Graphy protocol, which we provide during installation.
