High resolution
A 34 µm pixel size, 4K resolution and ±50 µm accuracy allow fine details of crowns, bridges and other restorations to be reproduced accurately.

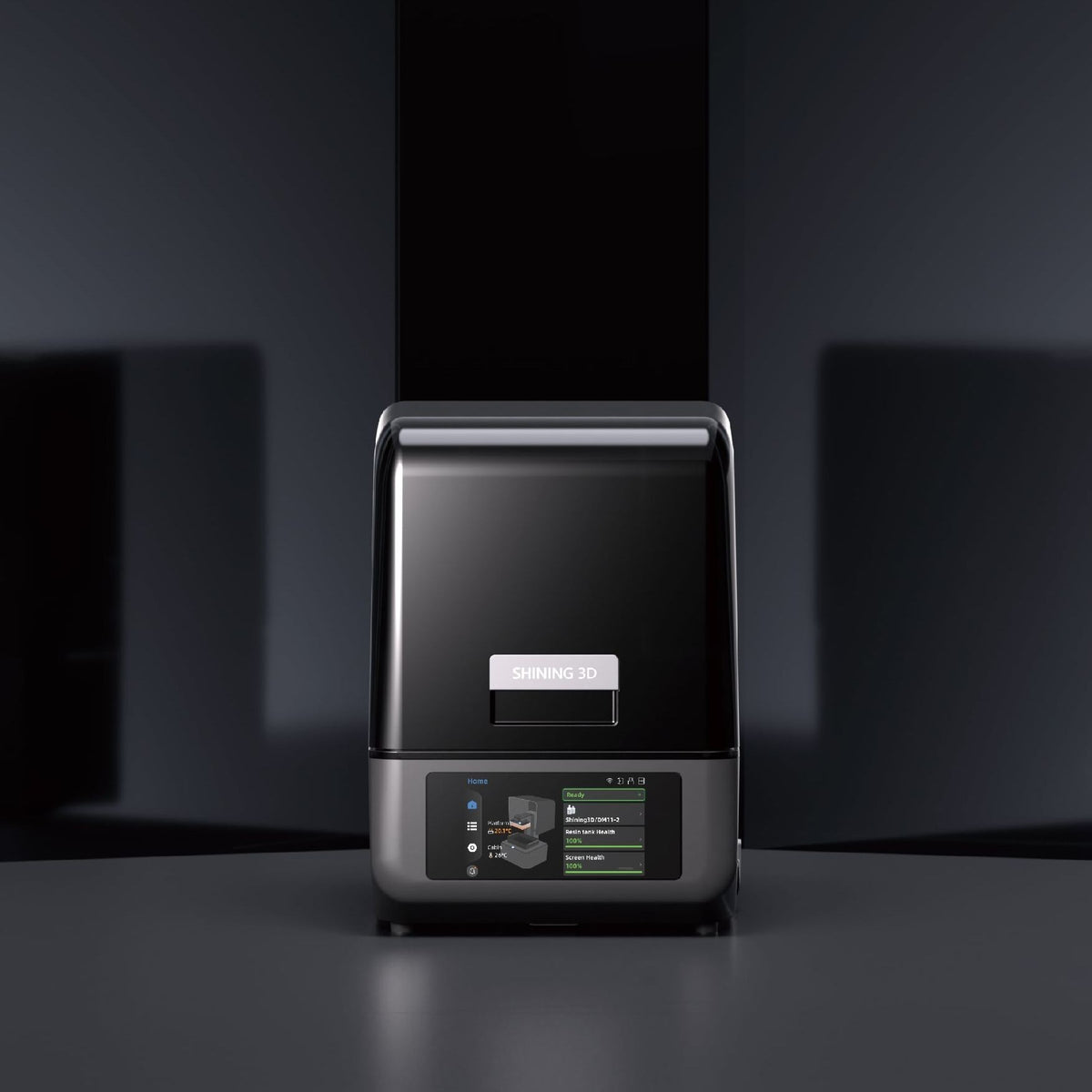

Shining3D AccuFab-Aris – LCD 3D Printer
€1.681,90
€1.390,00 excl. VAT
Price incl. VAT · VAT invoice with every order
DPD / UPS courier delivery · usually 2–7 business days
EU companies with a valid VAT number buy without VAT – enter your VAT number at checkout.
Shining3D AccuFab-Aris – a compact LCD 3D printer for dental clinics and labs that want to bring the digital workflow straight into the clinic (chairside). The unit prints dental resin parts quickly and accurately, shortening the time from scan to finished part.The...
Description- Consultations
- Help choosing the configuration and materials
- Delivery
- In Lithuania, the Baltic states and worldwide
Questions about this product?
Our product specialist will help you choose the right configuration.
Description

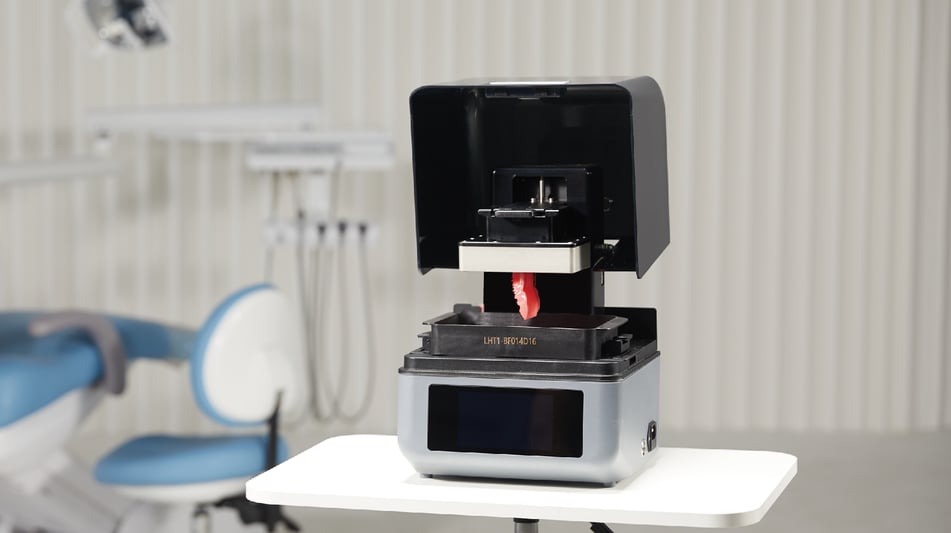

Shining3D AccuFab-Aris – a compact LCD 3D printer for dental clinics and labs that want to bring the digital workflow straight into the clinic (chairside). The unit prints dental resin parts quickly and accurately, shortening the time from scan to finished part.
The printer is suitable for models, surgical guides, splints and temporary restorations. A 34 µm pixel size, 4K resolution and ±50 µm accuracy ensure precise detail reproduction, while the thermostatically controlled 30 °C build platform reduces resin deformation and the risk of parts detaching from the platform.
Key advantages
- One-touch automatic leveling and Z-axis calibration
- NFC resin tank recognition and resin level detection
- USB, Wi-Fi and Ethernet connectivity for network operation
- Screen can be replaced in 10 seconds – less downtime

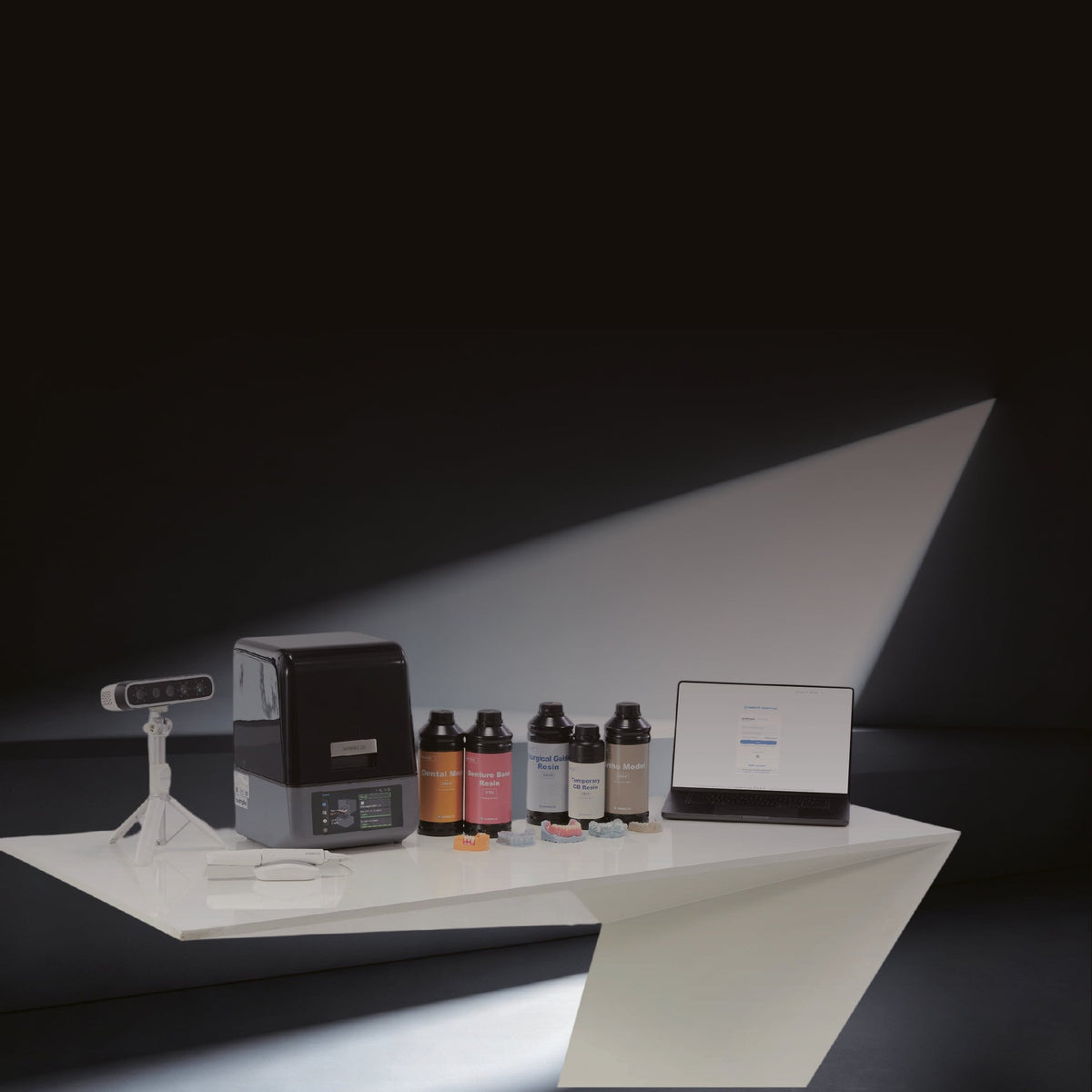

- Compatible with the SHINING DENT resin line and the FabCure 1S post-curing unit
Stable temperature
A build platform thermostatically controlled at 30 °C reduces resin deformation and improves part adhesion to the platform throughout printing.
Quick setup
One-button leveling, automatic Z-axis calibration and NFC resin tank recognition shorten setup time.
Easy care
The screen can be replaced in 10 seconds, and an integrated status panel shows the device status in real time.
Flexible connectivity
USB, Wi-Fi and Ethernet connections let you send files remotely or directly from the scanning workstation.
Frequently asked questions
Who is the AccuFab-Aris for?
Clinics and labs that want to print directly in the practice (chairside): models, surgical guides, splints, temporary restorations.
What is the accuracy?
34 μm pixel size, 4K resolution and ±50 μm accuracy; a temperature-controlled 30 °C platform reduces resin deformation and the risk of detachment.
Is calibration complicated?
No – one-button automatic leveling and Z-axis calibration; the resin tank is recognized via NFC, and remaining resin is detected.
What happens if the screen fails?
The LCD screen can be replaced in ~10 seconds – downtime is minimal. Connections: USB, Wi-Fi, Ethernet.
Technical data
- Build platform
- 130 × 80 mm
- Pixel size
- 34 µm
- Layer thickness
- 50–125 µm (adjustable)
- Printing accuracy
- ±50 µm
- Printing speed
- 60 mm/h
- Resin tank volume
- 200 ml
- Connections
- USB / Wi-Fi / Ethernet
- Dimensions
- 257 × 236 × 364 mm
- Weight
- up to 10 kg
- Compatible resins
- SHINING DENT resin line
