Complete production cycle
The printer, washing and curing units and the release module are supplied together as a matched system.
HeyGears DENTAL PRO – A2D HD Printing, Washing and Curing Bundle
€10.272,90
€8.490,00 excl. VAT
HeyGears offer
Gift€300 worth of resins as a gift
Value excl. VAT. Resins chosen for your needs from manufacturer-approved materials. Equipment price is not reduced.
Offer termsIn the bundle
Price incl. VAT · VAT invoice with every order
DPD / UPS courier delivery · usually 2–7 business days
EU companies with a valid VAT number buy without VAT – enter your VAT number at checkout.
Need an offer or want to see it in action?

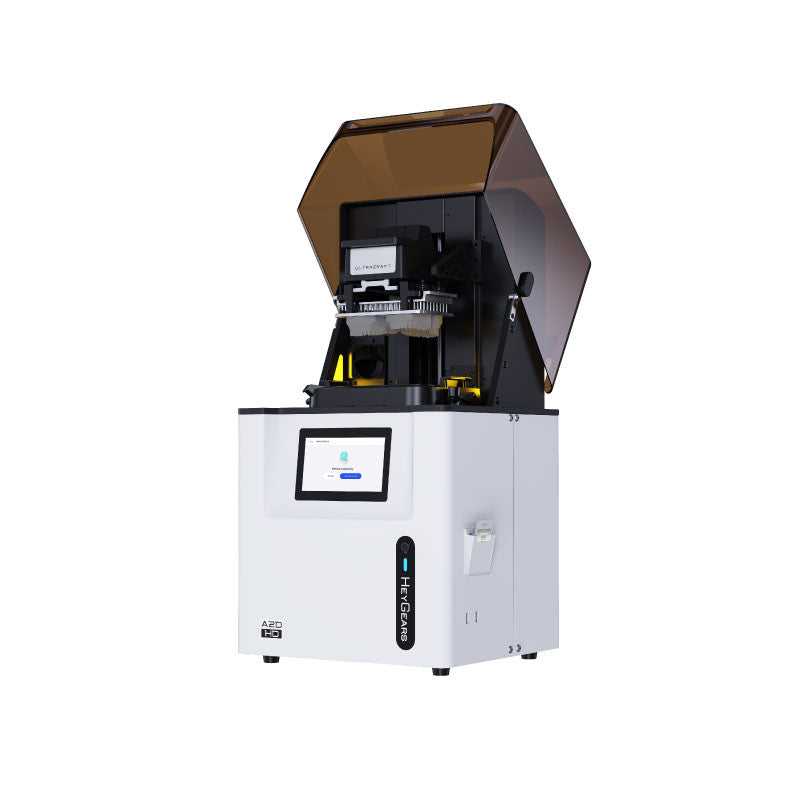

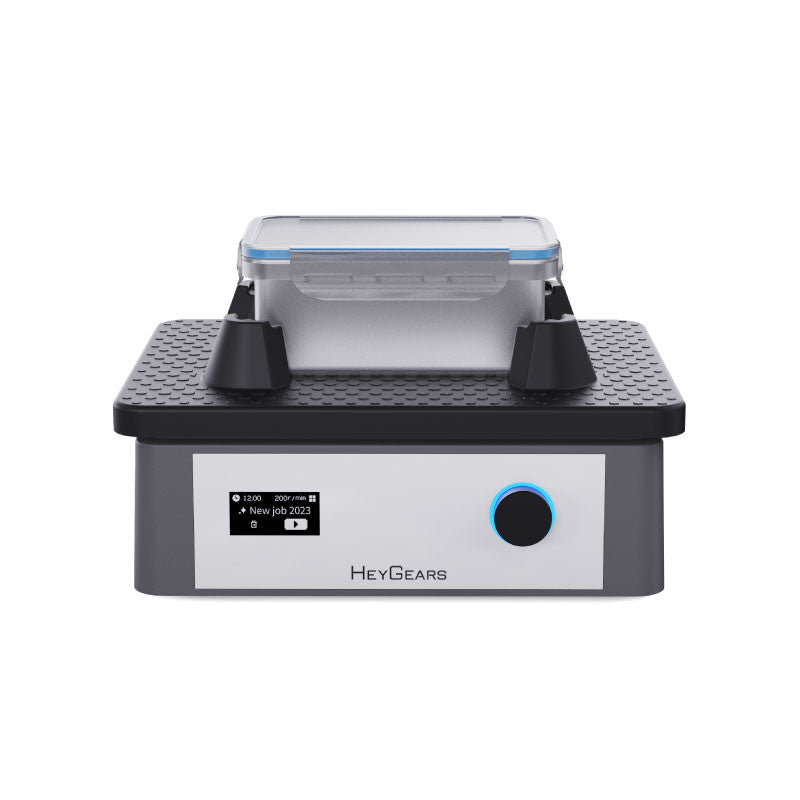

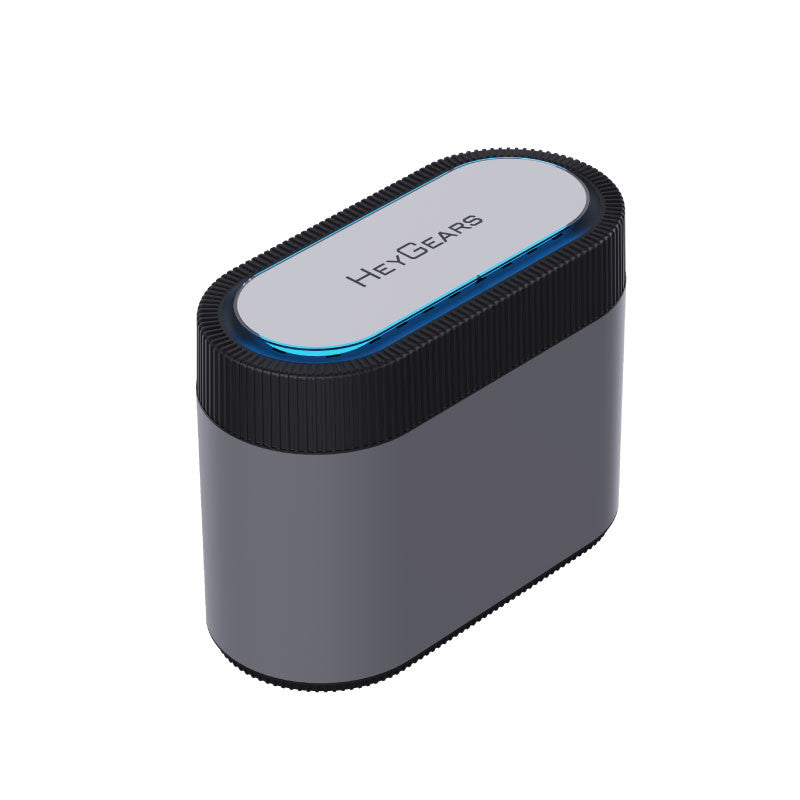

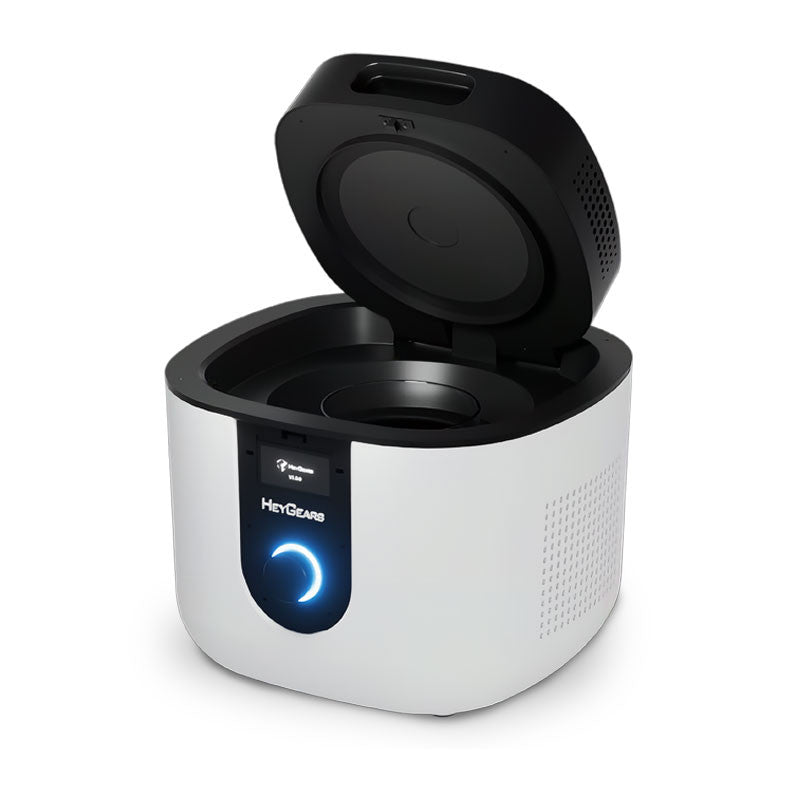

The complete HeyGears UltraCraft A2D-HD bundle covers the entire dental 3D production chain: the A2D-HD DLP 3D printer, the UltraCraft Wash unit for removing resin residue, the UltraCraft AirCure curing unit and the Pulsing Release Module, which makes part release easier. With...
Description- Consultations
- Help choosing the configuration and materials
- Delivery
- In Lithuania, the Baltic states and worldwide
Questions about this product?
Our product specialist will help you choose the right configuration.
Description
The complete HeyGears UltraCraft A2D-HD bundle covers the entire dental 3D production chain: the A2D-HD DLP 3D printer, the UltraCraft Wash unit for removing resin residue, the UltraCraft AirCure curing unit and the Pulsing Release Module, which makes part release easier. With this bundle, a lab or clinic can immediately start the full digital production cycle – from printing to a ready-to-use part.
The A2D-HD printer prints up to five full-arch models in 20 minutes and automatically recognizes the loaded UltraPrint-Dental resin. UltraCraft Wash cleans parts in 4–6 minutes, and UltraCraft AirCure completes the process with controlled post-curing. Together with the HT resin tank, the Pulsing Release Module reduces part release force by up to 90% and delivers a transparent surface that requires no polishing – especially relevant for splints and other clear appliances.
- The full cycle from printing to a finished part in one bundle
- Fully matched components
- Suitable for fixed and removable prosthetics, implantology and orthodontics
- Less manual finishing and polishing
Automatic washing and curing
UltraCraft Wash and AirCure reduce the need for manual post-processing.
Easier part release
The Pulsing Release Module reduces release force by up to 90 % compared with a standard tank.
Surface without polishing
This combination allows clear parts to achieve up to 88 % light transmittance without additional polishing.
Wide range of applications
With HeyGears UltraPrint-Dental resins, the system covers more than 50 dental applications.
Frequently asked questions
What is included in the complete set?
The A2D-HD DLP 3D printer, the UltraCraft Wash washing unit, the UltraCraft AirCure curing unit and the Pulsing Release Module – the entire chain from printing to a ready-to-use part.
What is the printer's throughput?
Up to five full-arch models are printed in 20 min; the printer automatically recognizes the inserted UltraPrint-Dental resin and adjusts the parameters.
What does the Pulsing Release Module do?
Together with the HT resin tank, it reduces the part separation force by up to 90 % and produces a clear surface that needs no polishing – especially relevant for splints and other clear products.
How long do washing and curing take?
UltraCraft Wash cleans parts in 4–6 min, and the AirCure curing cycle takes up to 10 min with an automatically selected strategy.
Technical data
- Kit contents
- A2D-HD printer, UltraCraft Wash, UltraCraft AirCure, Pulsing Release Module
- Printing technology
- DLP, 385 nm and 405 nm
- Build volume (printer)
- 163,2 × 91,8 × 110 mm
- Accuracy
- ±42,5 µm (HD), ±21,3 µm with 4K upgrade
- Washing time
- 4–6 min, up to 20 parts per cycle
- Curing time
- ≤ 10 min
- Pulsing Release Module dimensions
- 310 × 148 × 235 mm, 3 kg
