FabCure N2 Post-Curing Unit

Name: FabCure N2 Post-Curing Unit
Brand: SHINING 3D
SKU: S3D-FABCURE-N2
Price: 3254.90 EUR
Availability: InStock

€3.254,90

€2.690,00 excl. VAT

Price incl. VAT · VAT invoice with every order
DPD / UPS courier delivery · usually 2–7 business days
EU companies with a valid VAT number buy without VAT – enter your VAT number at checkout.

FabCure N2 is a post-curing station for dental prints – the key to stronger and more accurate results. It provides uniform, controlled exposure according to the material profile and ensures repeatable results in the clinic and the lab. Key benefits:• Stronger, more...

Description

Consultation: Help choosing the configuration and materials
Delivery: In Lithuania, the Baltics and worldwide

Questions about this product?

Our product specialist will help you choose the right configuration.

uzsakymai@immt.lt

Description

FabCure N2 is a post-curing station for dental prints – the key to stronger and more accurate results. It provides uniform, controlled exposure according to the material profile and ensures repeatable results in the clinic and the lab.

Key benefits:
• Stronger, more accurate prints after curing
• Consistent, automated process with material profiles
• Uniform exposure and control of curing parameters
• Easy operation, repeatable results in daily work

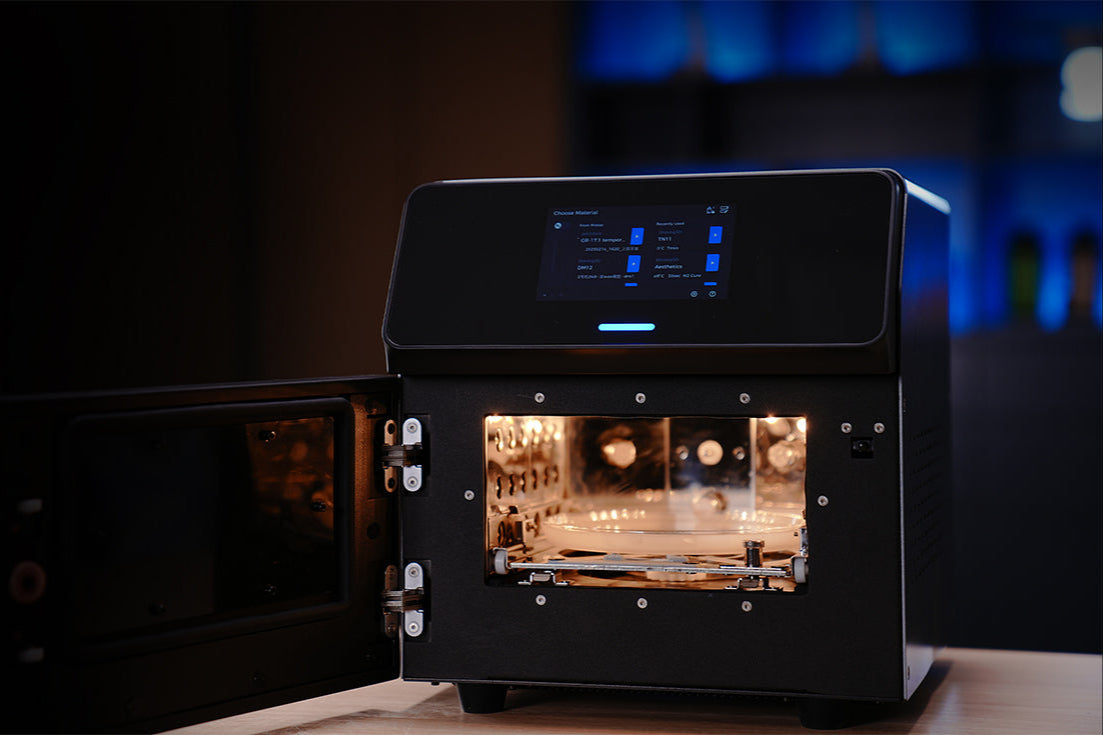

Better material properties with 365 nm UV light

Not all curing systems are equal! The dedicated 365 nm light in FabCure N2 delivers:

• Unmatched strength – stronger, longer-lasting dental parts

• Very high surface hardness – excellent wear resistance even under heavy loads

• Medical-grade biocompatibility – safe and reliable for all dental restorations

Better material properties with 365 nm UV light

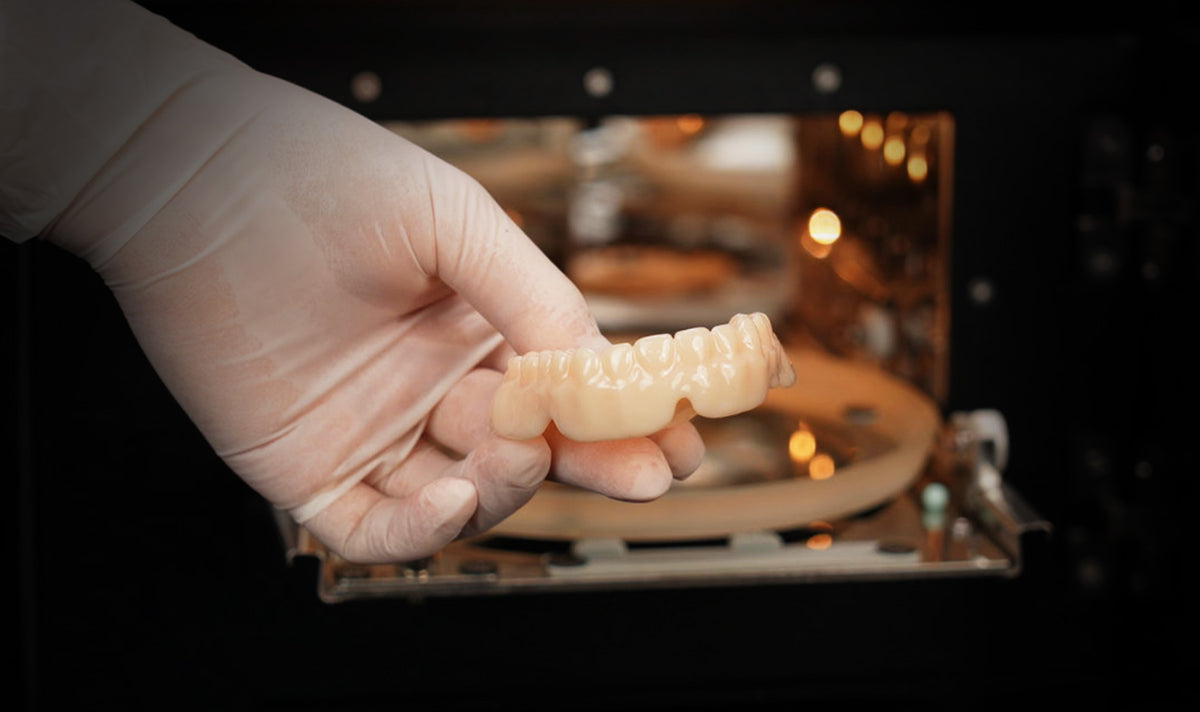

No tacky surfaces – oxygen-free curing

With its automated nitrogen system, FabCure N2 eliminates the effect of oxygen and delivers:

• Perfectly smooth, tack-free parts – no residue and no under-cured surfaces

• Excellent results for All-on-X, clear aligners, retainers, night guards and more

• Higher curing efficiency – every print meets the highest quality standards

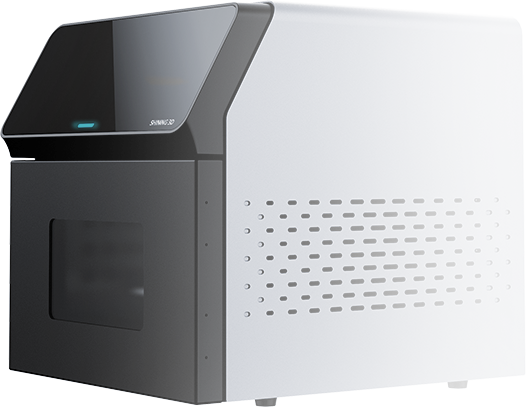

Precise temperature control for flawless results

FabCure N2 provides precise heating so you can:

• Speed up curing – faster results without compromising quality

• Ensure perfect accuracy – no deformation or distortion

• Get the most out of your resins – tailored curing for high-performance materials

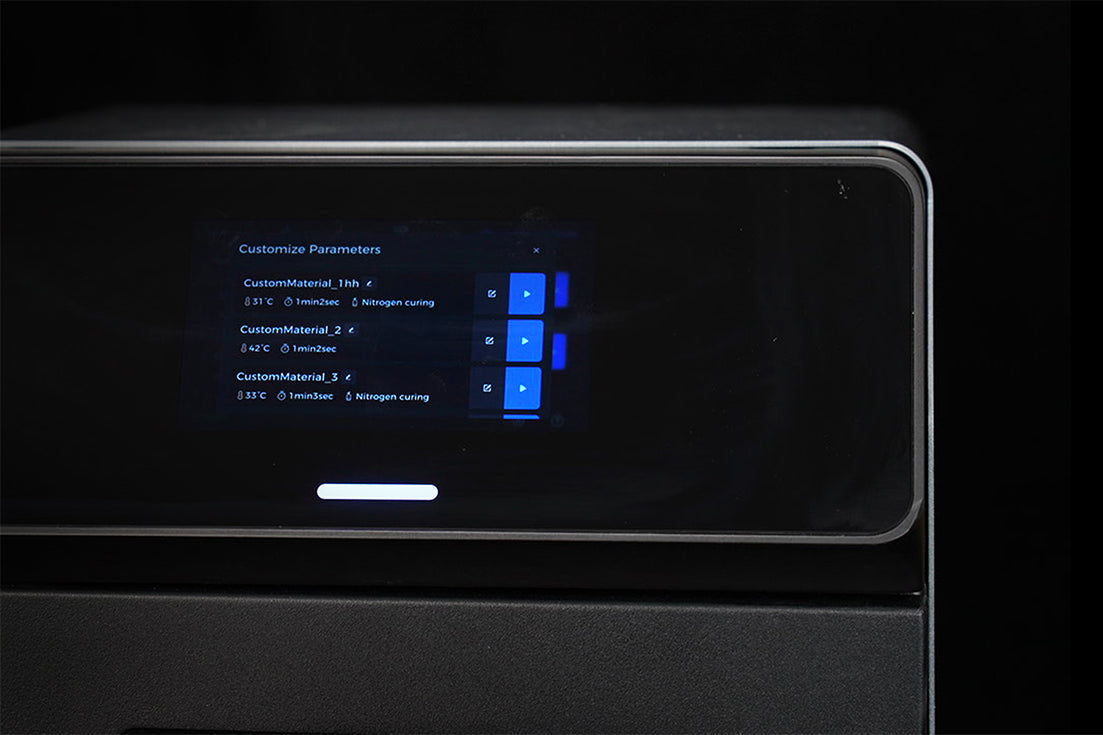

Designed for a seamless workflow

• Smart nitrogen management – fully automated, effortless operation

• Intuitive interface – simple, streamlined processes for labs and clinics

• Consistent, repeatable quality – no fluctuations and no waste

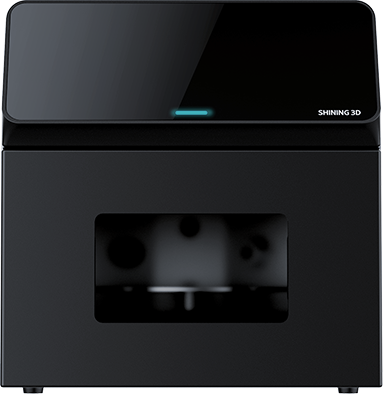

Take your dental solutions to the next level

FabCure N2 is built for precision and delivers excellent results in:

• Clear aligners, surgical guides and dentures

• Crowns, bridges and fixed restorations

• Advanced orthodontic and prosthetic solutions

Technical data

Unit dimensions: 346 × 307 × 308 mm
Shipping dimensions: 460 × 420 × 450 mm
Weight: 15,5 kg
Wavelength: 365–385 nm
Turntable diameter: 150 mm
Max. part height: 72 mm
Power supply: AC 100–240 V; 7,3 A; 50/60 Hz
Note: SHINING 3D reserves the right to change specifications and illustrations.

Frequently asked questions

What difference does curing in a nitrogen atmosphere make?

Nitrogen displaces oxygen from the chamber, so no tacky oxygen-inhibited layer forms on the print – resulting in a cleaner surface and better mechanical properties of the material.

What wavelength of light is used?

365–385 nm UV LED – the dedicated 365 nm light achieves more complete resin polymerization. The curing chamber holds parts up to 72 mm high on a 150 mm diameter turntable.

Is a separate nitrogen cylinder needed?

The unit has an automated nitrogen system with smart control – no additional intervention is needed during the process. Curing temperature is precisely controlled according to the material profile.

Which printers is FabCure N2 suitable for?

All SHINING 3D AccuFab series printers and other resin prints that require controlled post-curing. We will help you choose the right curing unit for your materials.
