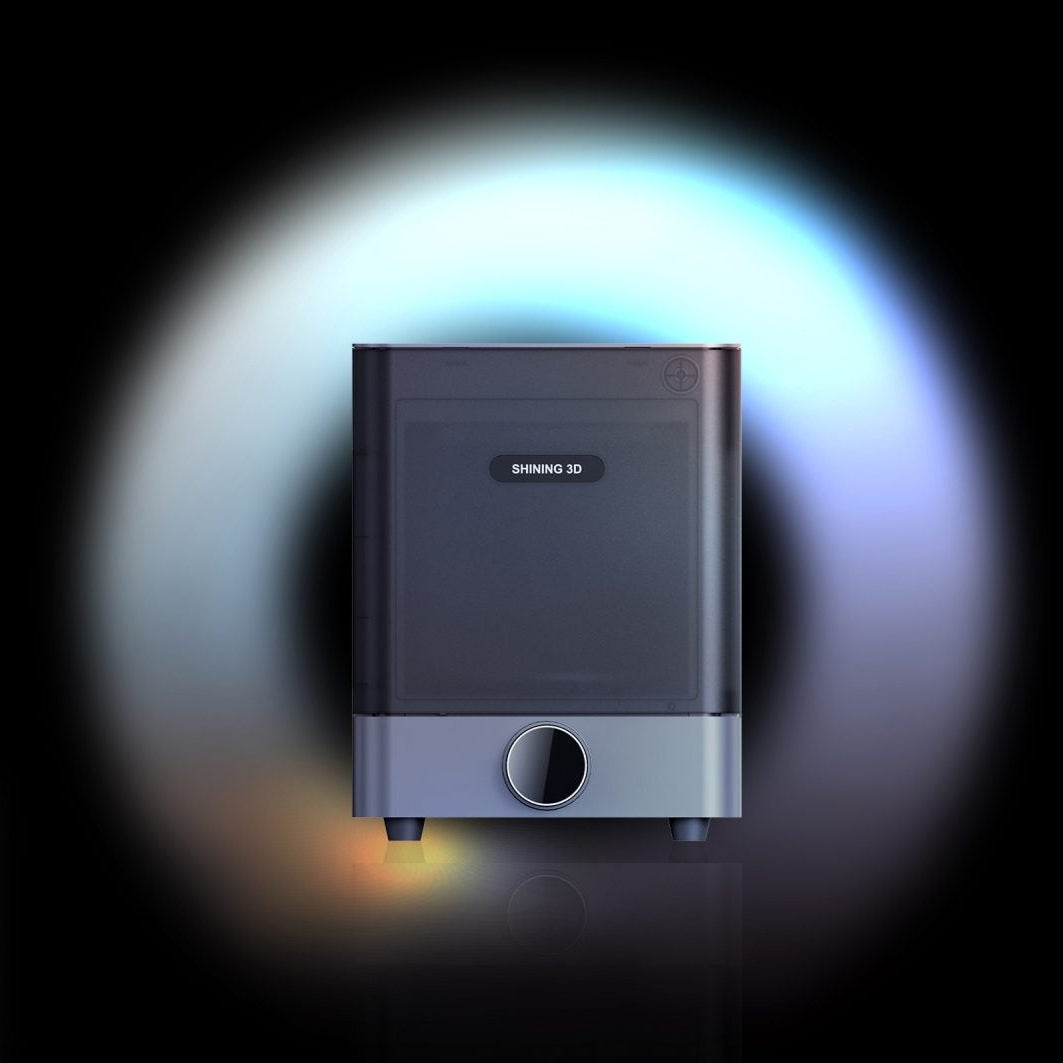

FabCure 2 Post-Curing Unit

Name: FabCure 2 Post-Curing Unit
Brand: SHINING 3D
SKU: S3D-FABCURE-2
Price: 1027.29 EUR
Availability: InStock

€1.027,29

€849,00 excl. VAT

Price incl. VAT · VAT invoice with every order
DPD / UPS courier delivery · usually 2–7 business days
EU companies with a valid VAT number buy without VAT – enter your VAT number at checkout.

FabCure 2 is a post-curing station for dental 3D prints. High-power multi-directional light curing, fast chamber heating and smart material profiles ensure consistently high quality in the clinic and the lab. A larger chamber and an OLED display make daily work easier....

Description

Consultation: Help choosing the configuration and materials
Delivery: In Lithuania, the Baltics and worldwide

Questions about this product?

Our product specialist will help you choose the right configuration.

uzsakymai@immt.lt

Description

Key benefits:
• High-power curing with light from multiple sides
• Fast chamber heating
• Adjustable curing parameters
• Larger curing chamber / volume
• Smart material library
• Easy control via OLED display

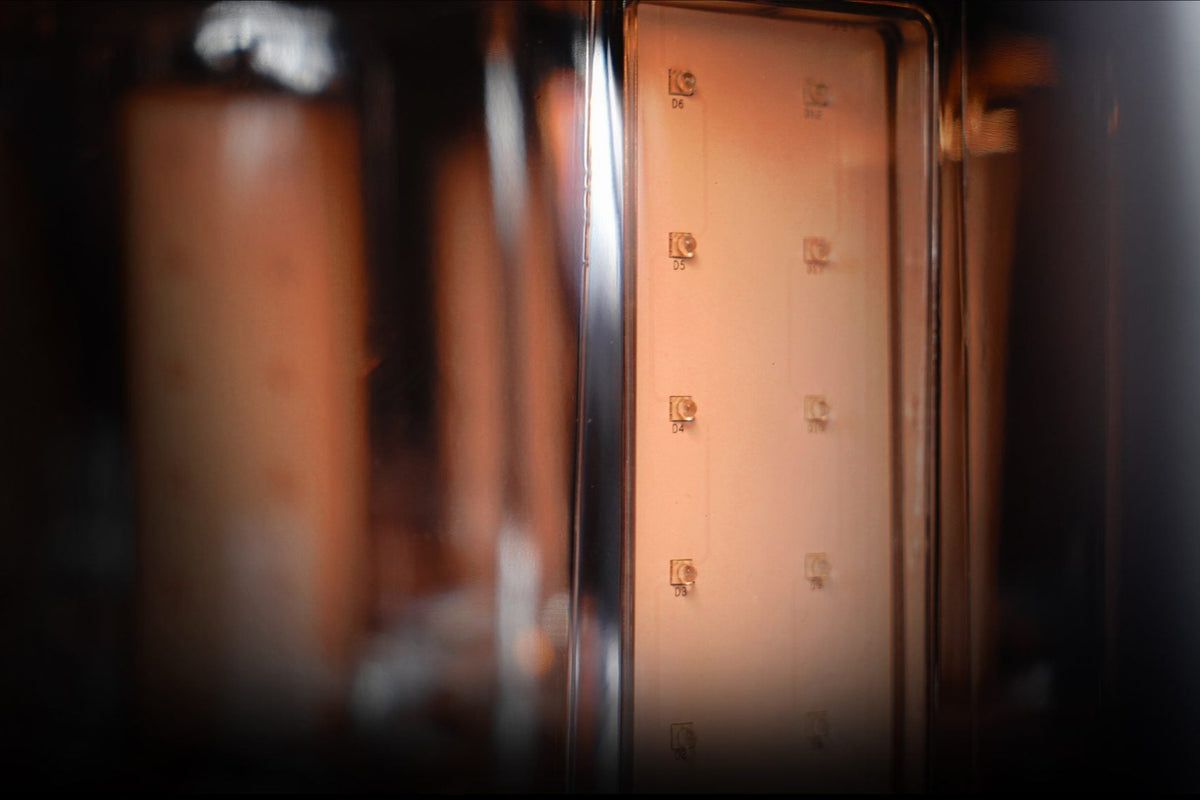

High-power multi-directional light curing

• 30 multi-directional LEDs on the sides and bottom emit strong UV light that quickly penetrates deeper below the surface and fully cures the print within minutes.

• 70 W of power ensures a high-energy curing cycle and an efficient process.

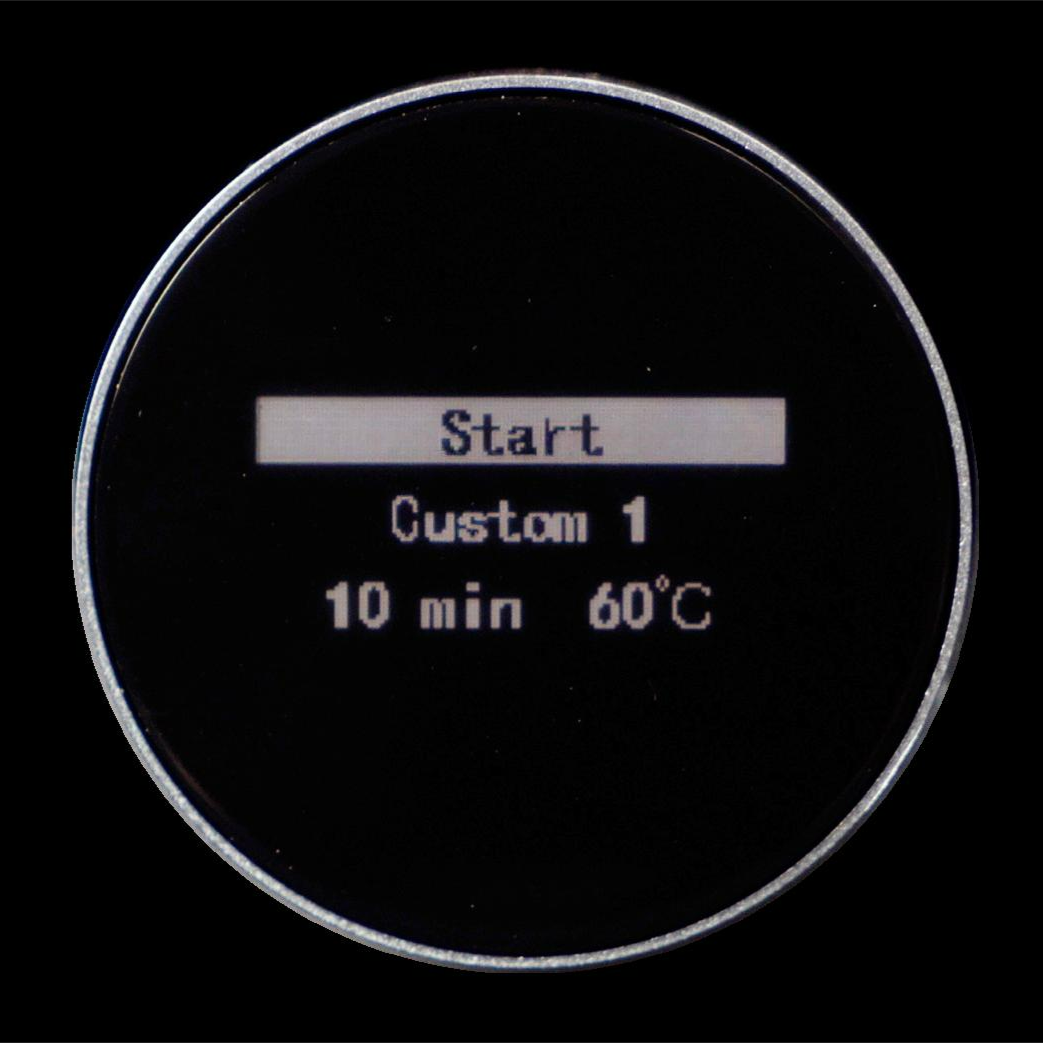

Fast chamber heating

• Ceramic heating module with multiple integrated temperature sensors.

• The chamber heats up quickly to 60°C, improving mechanical properties and flexural strength.

• The FabCure 2 heating system precisely maintains an ambient temperature of up to 60°C.

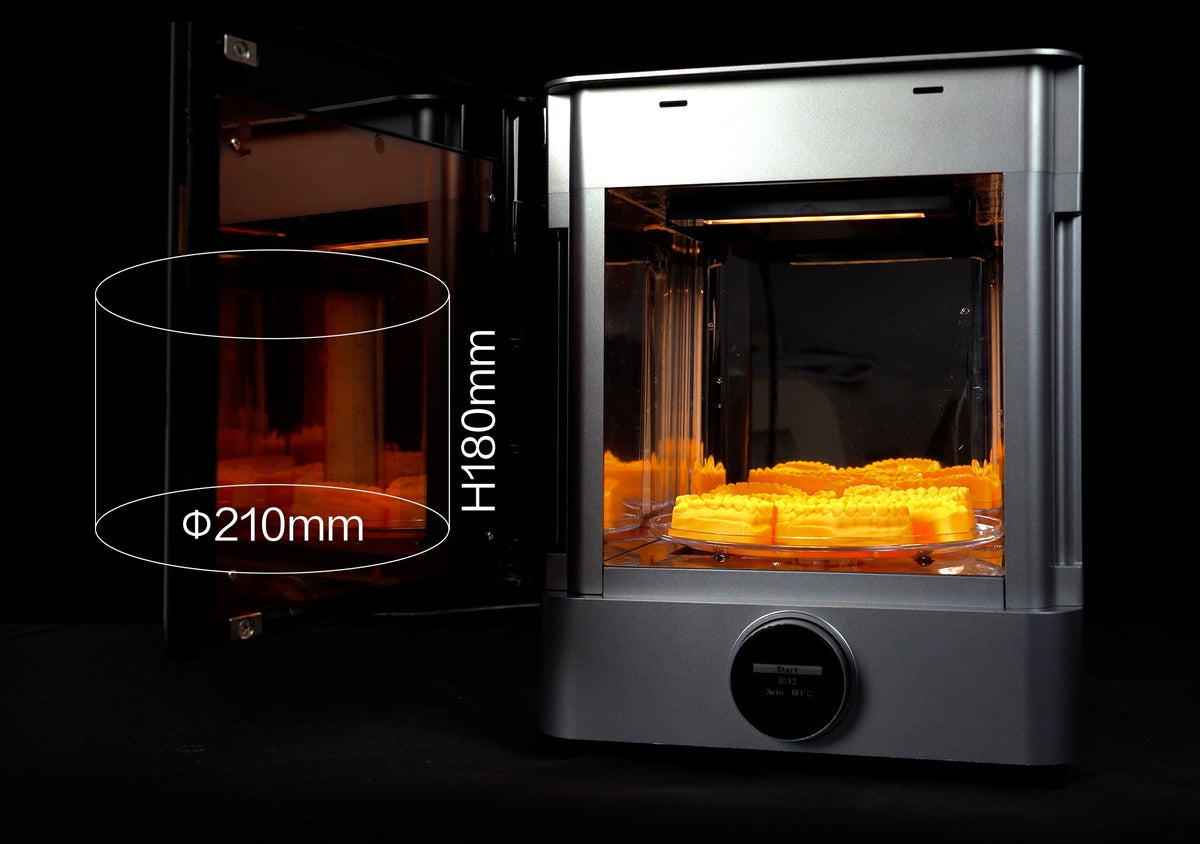

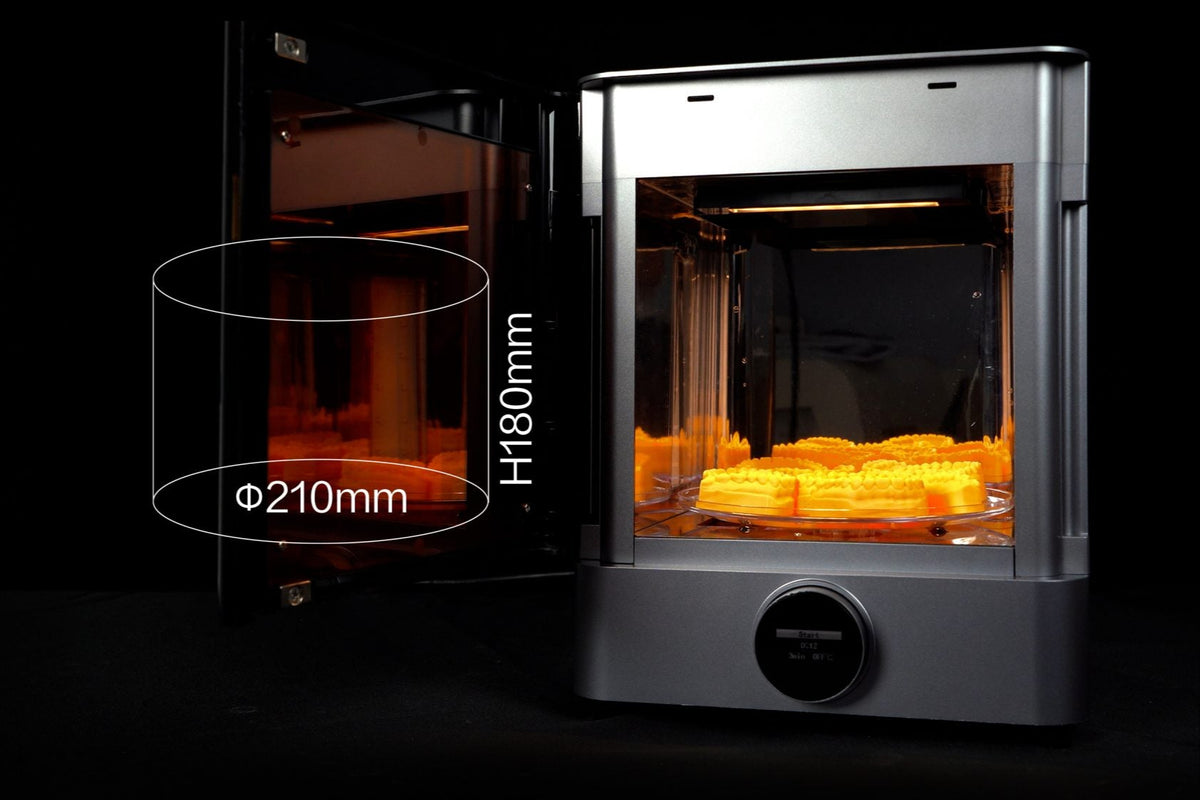

Larger curing chamber

• Curing space up to Ø210 mm × 180 mm (height) – suitable for a wide range of dental products.

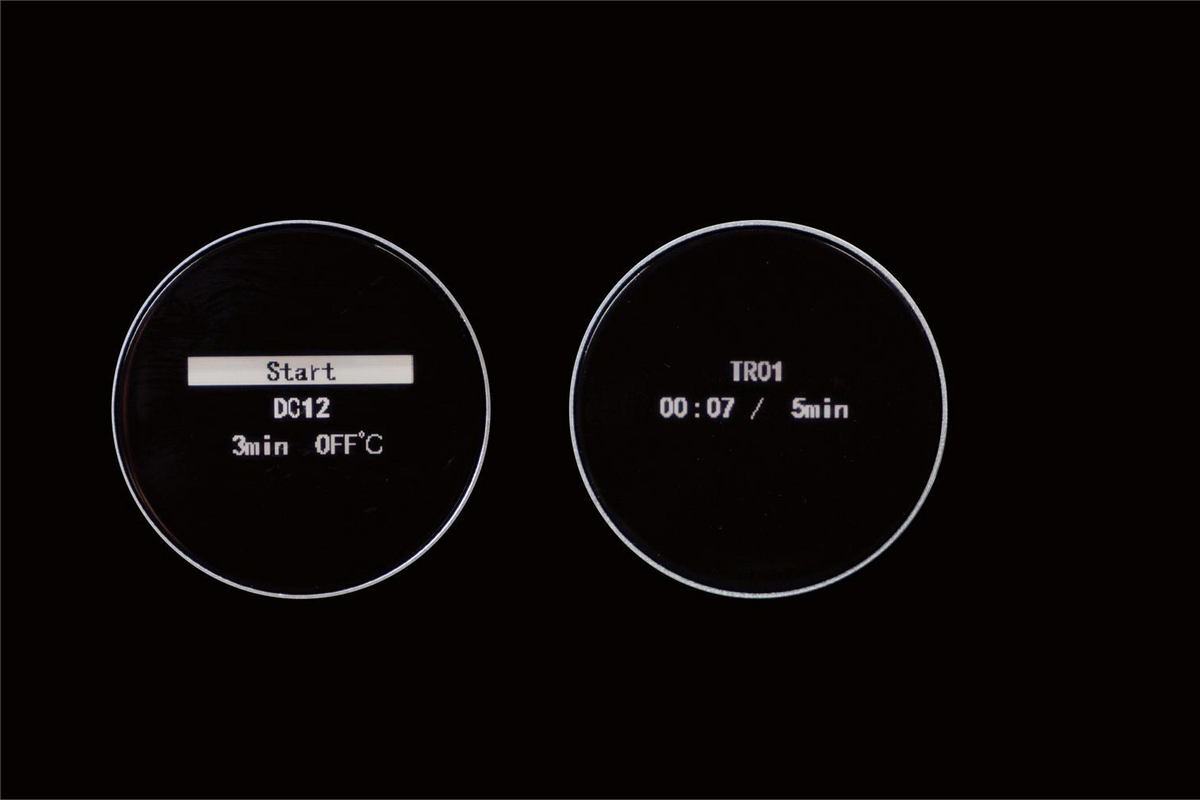

Customizable curing parameters

• FabCure 2 provides optimal curing parameters for Shining 3D resins, updated over the air (OTA).

• Supports individually configurable parameter settings.

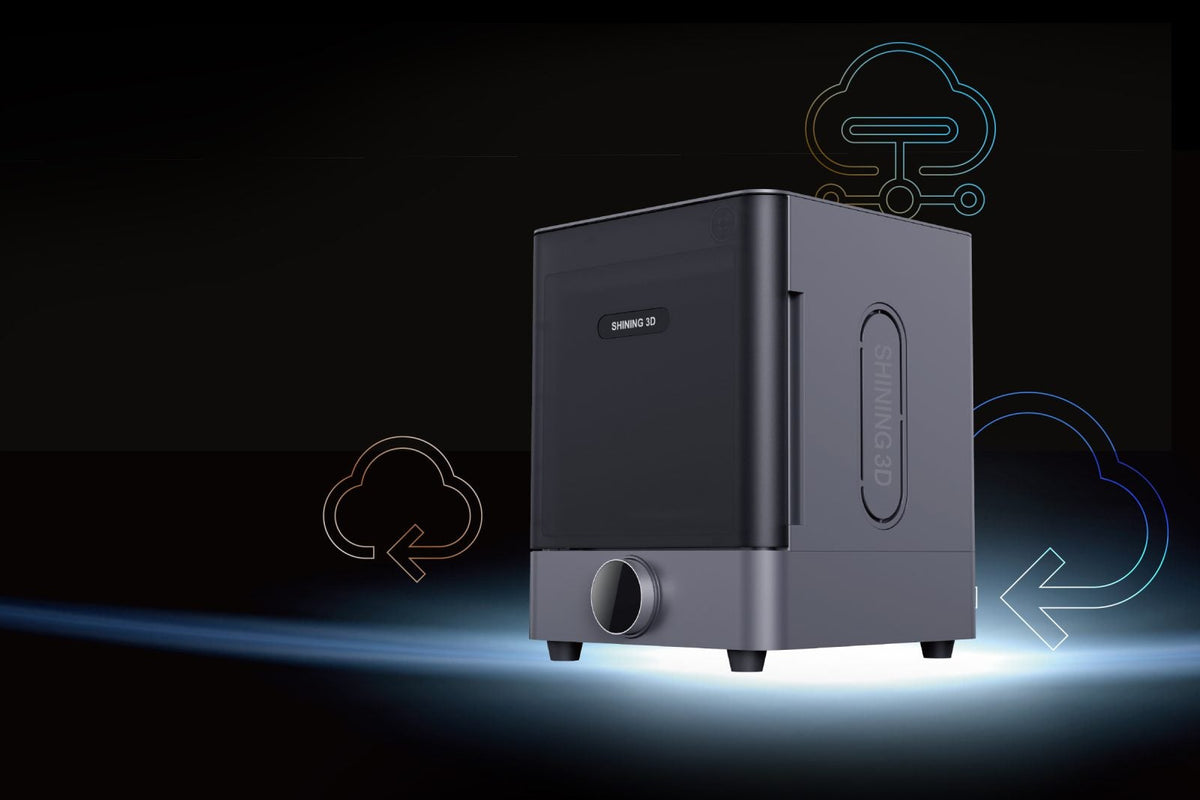

Smart material library

• Thanks to the latest cloud material library, FabCure 2 always stays in sync.

• Built-in Wi-Fi enables over-the-air (OTA) updates – the latest firmware and configurations reach the unit automatically.

• The unit continuously “learns” from our process engineers and keeps receiving improved profiles and parameters.

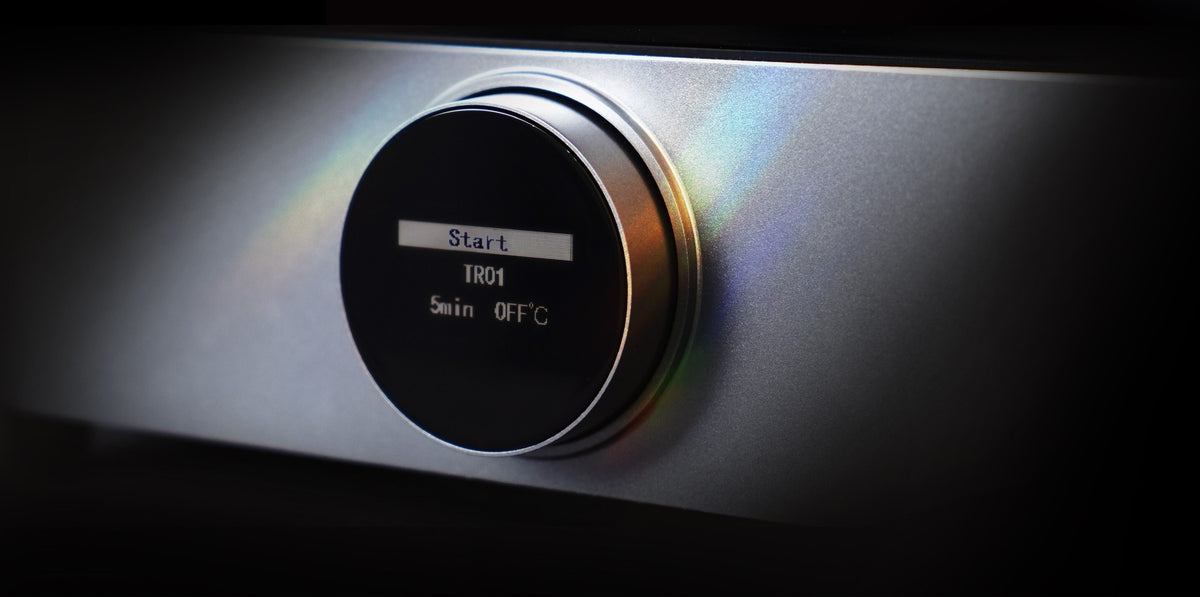

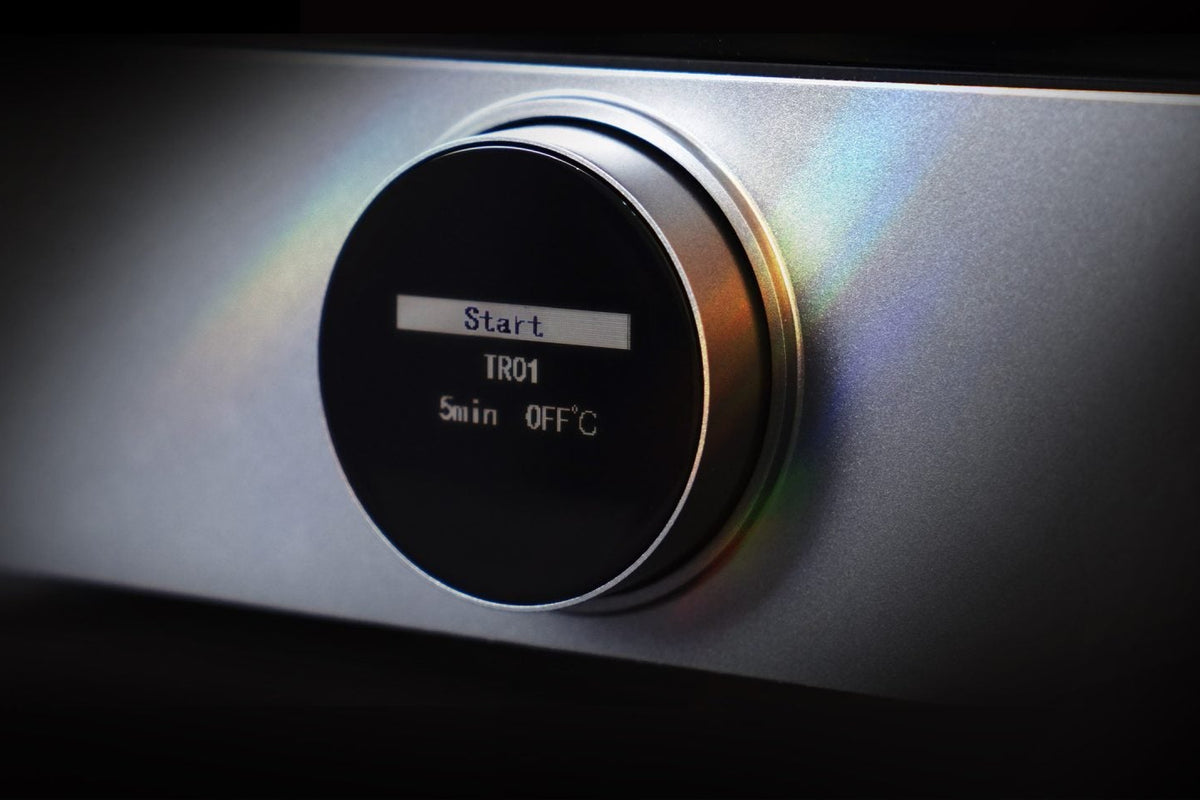

Easy control with OLED display

A popular, convenient control knob integrated with an OLED display makes operating the unit interactive and intuitive.

FabCure 2 is recommended as the standard post-curing unit for Shining 3D 3D printers. With FabCure 2, every resin curing profile is carefully calibrated so that tightly controlled heat and light allow the print to reach its maximum properties. The unit precisely defines the post-processing steps, ensures high accuracy and optimal material properties, and automates the entire process.

Technical data

Dimensions (W × D × H): 290 × 290 × 367,5 mm
Weight: 10,5 kg
Curing space: Ø210 mm × 180 mm (height)
Operating temperature: 10–30°C
Max. curing temperature: 60°C
Light source: UV LED
Wavelength: 385–405 nm
LED power: 70 W
Power supply: AC 100–240 V, 150 W
Connectivity: Wi-Fi

Frequently asked questions

What size parts can be cured?

The curing space is Ø210 mm × 180 mm high, so it fits models, guides, splints and larger prosthetic parts.

Where does the light come from and is curing even?

30 multi-directional LEDs (385–405 nm, 70 W) are located on the sides and bottom, and a ceramic heating module with several temperature sensors quickly heats the chamber to 60 °C – the result is even from all sides.

Do I need to set curing parameters myself?

No – FabCure 2 has a cloud-synchronized material library with optimized profiles for SHINING 3D resins. If needed, parameters can be adjusted on the OLED display.

Is FabCure 2 a standard accessory for AccuFab equipment?

Yes, the manufacturer recommends it as the standard post-curing unit for SHINING 3D 3D printers; it connects via Wi-Fi.
