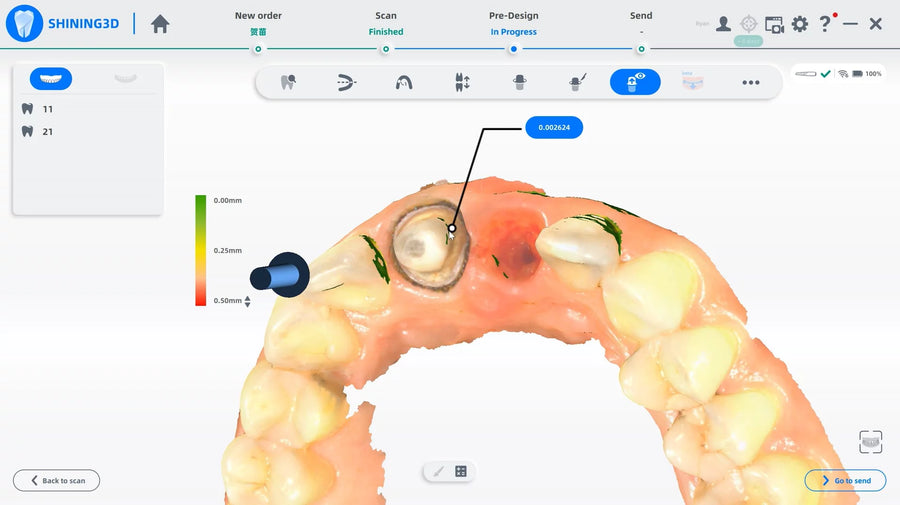

Undercut analysis
Undercut levels are visible during scanning, making them easier for the dentist to assess.

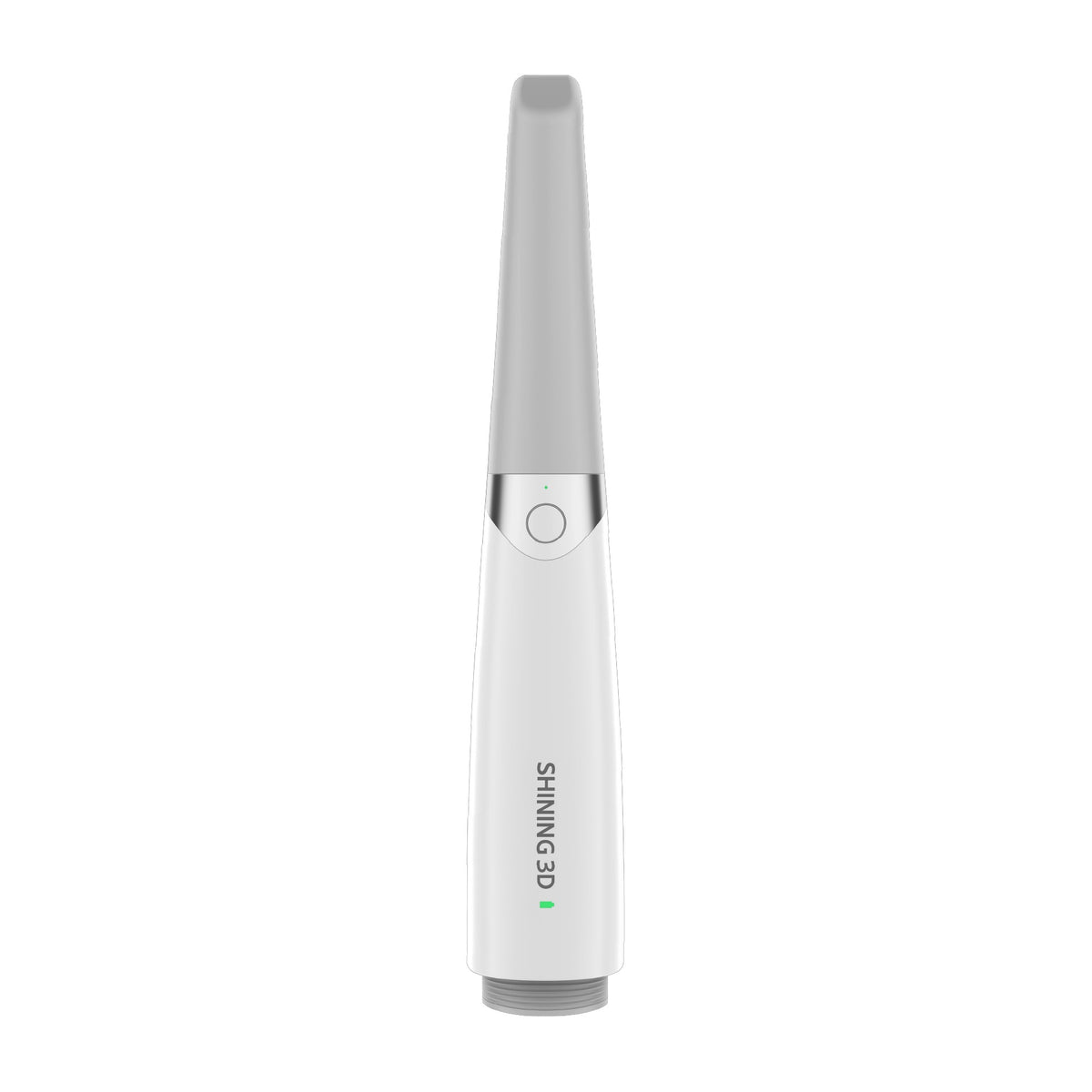

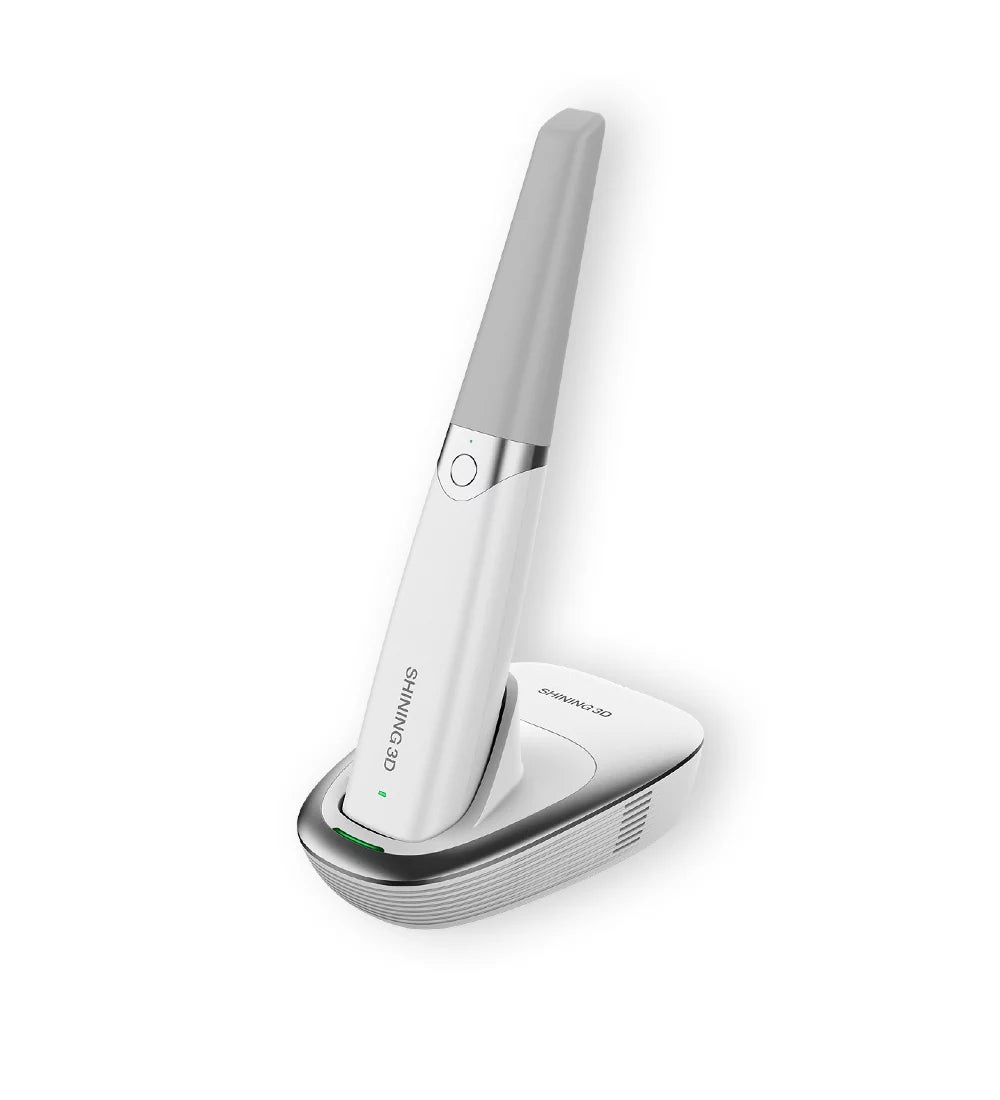

Intraoral Scanner Aoralscan 3 Wireless
€12.500,00
€10.330,58 excl. VAT
SHINING 3D offer
Added value+ €2.300 prosthetic work credit
„Choose your own lab – IMMT pays for work up to €2.300.“
How the credit worksPrice incl. VAT · VAT invoice with every order
DPD / UPS courier delivery · usually 2–7 business days
EU companies with a valid VAT number buy without VAT – enter your VAT number at checkout.
Need an offer or want to see it in action?
All the advantages of Aoralscan 3 – and more. The wireless version offers a more convenient workflow, fast and stable scanning over Wi-Fi 6 and long operating time. Key benefits:• Wireless – freedom to work around the patient• Fast, stable scanning via...
Description- Consultations
- Help choosing the configuration and materials
- Delivery
- In Lithuania, the Baltics and worldwide
Questions about this product?
Our product specialist will help you choose the right configuration.
Description

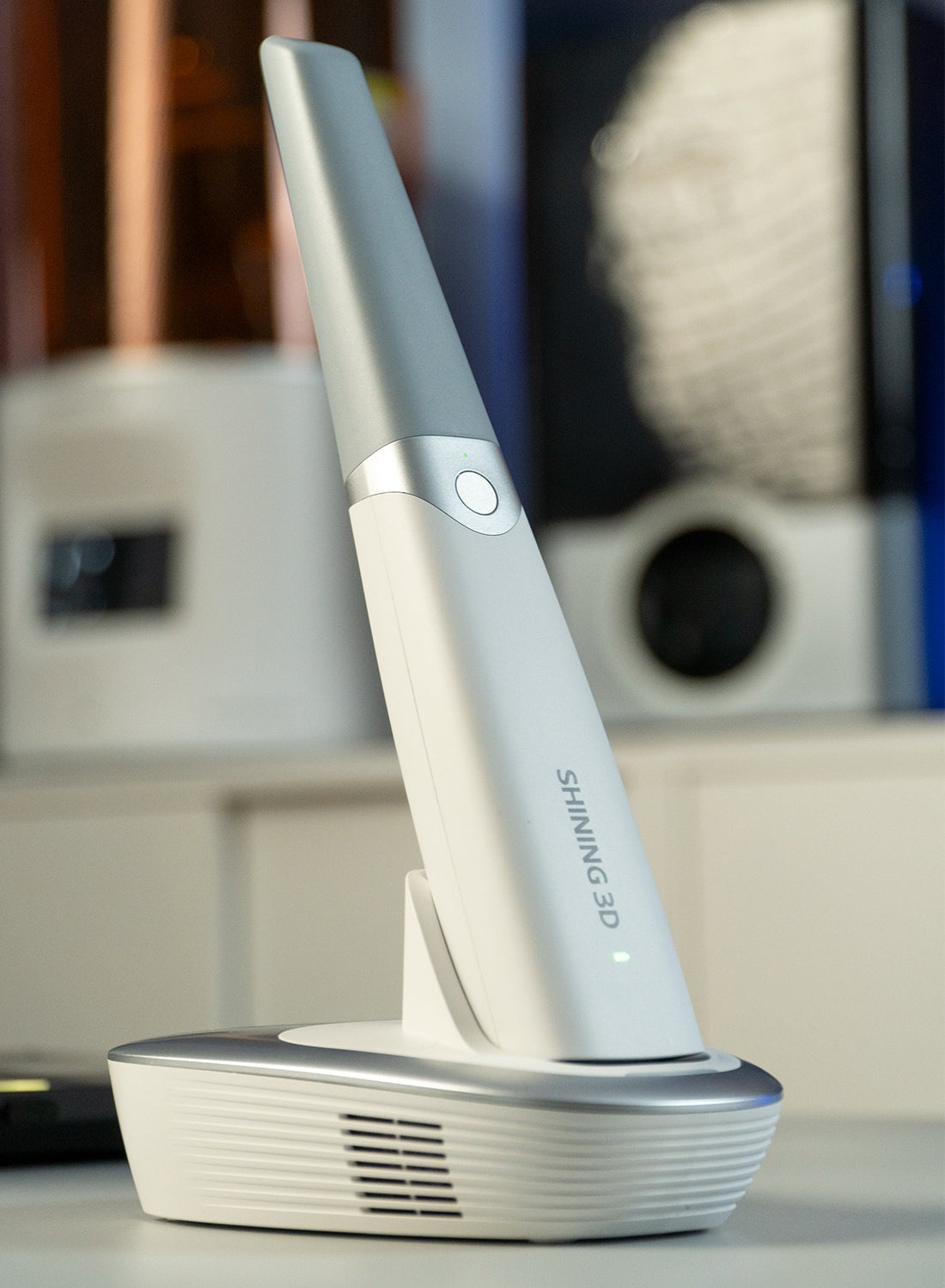

All the advantages of Aoralscan 3 – and more. The wireless version offers a more convenient workflow, fast and stable scanning over Wi-Fi 6 and long operating time.
Key benefits:
• Wireless – freedom to work around the patient
• Fast, stable scanning via Wi-Fi 6
• Long battery life: ~2 h of continuous scanning, up to 10 days on standby, about 60 scans per charge
• Two interchangeable tips: standard 16 × 12 mm and mini 9 × 12 mm
• Advanced software: orthodontic simulations, model creation, temporary crown design and more
01

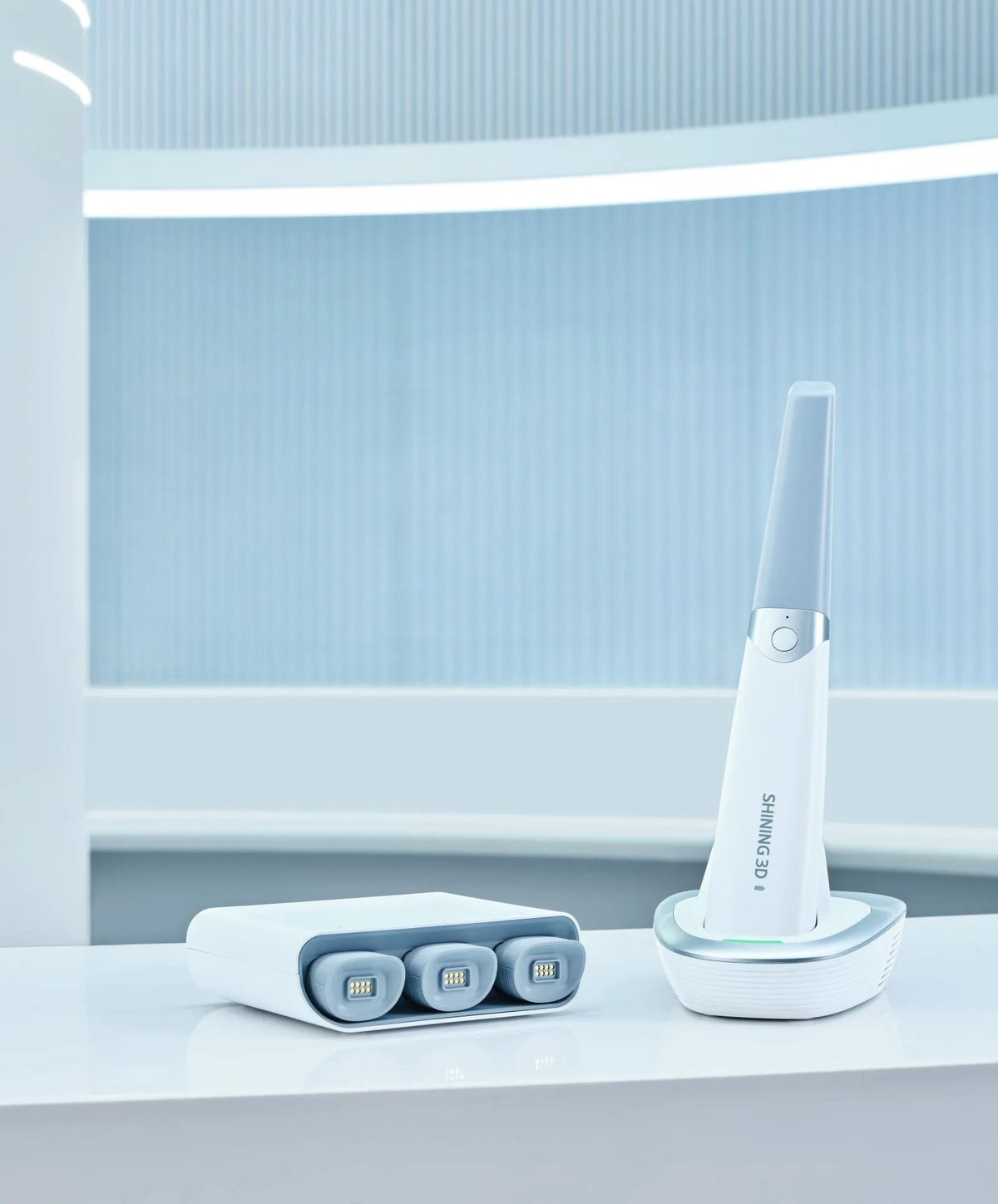

Advantages
• Integrated Wi-Fi 6 technology ensures smooth scanning and fast, stable data transfer.
• Scanning time per case: approx. 2 min (upper + lower arch + bite).
• Up to 60 cases per charge; 3 batteries included in total.
• After scanning, place the scanner in the holder / charging station – it charges automatically.
• The built-in gesture sensor reduces the need to touch the computer during scanning.
• Can be paired with multiple chairs and dentists in the clinic.
• Includes advanced software with model creation and 3D print preparation features.
• A wired scanning mode is also available.
02

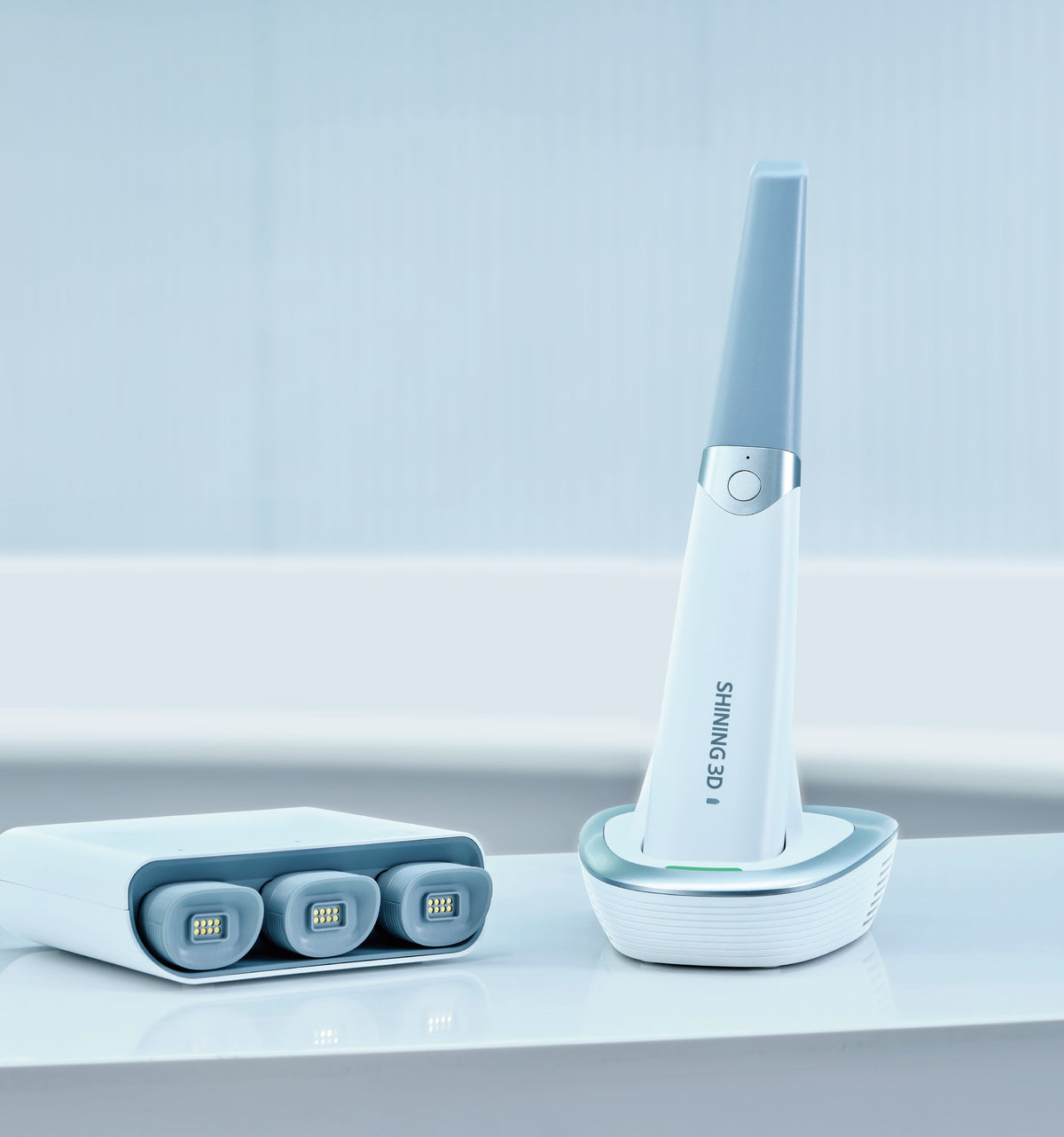

• Up to 2 hours of continuous scanning
• 3 swappable batteries – uninterrupted scanning
• Tips in two sizes: for adults and children
03
Motion sensor
Minimal contact with the computer – safe and efficient scanning.
04
Brighter image
Illuminates the scanned area, making surface data even more accurate and clearer.
05
Metal scanning
An improved scanning algorithm provides better capture and reconstruction of metal teeth and prosthetic components.
06
Smooth scanning of edentulous patients
07

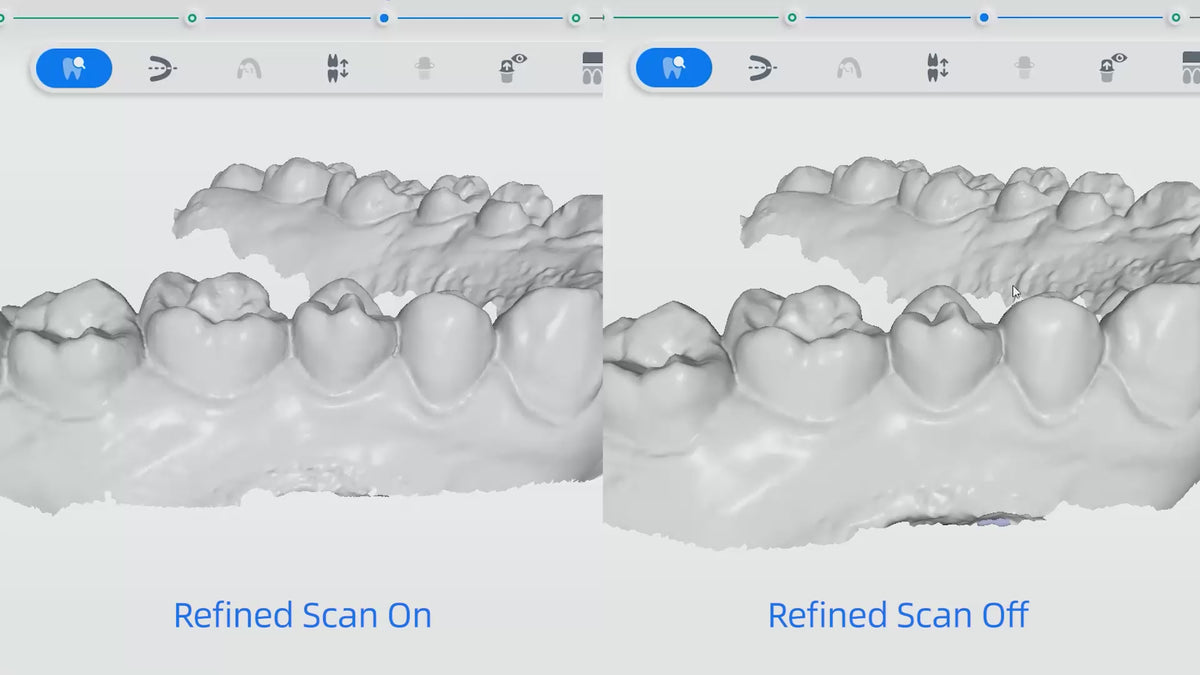

AI scanning
Automatically recognizes and filters out unwanted soft tissue data during scanning, making the process faster and "cleaner".
Clinical toolkit

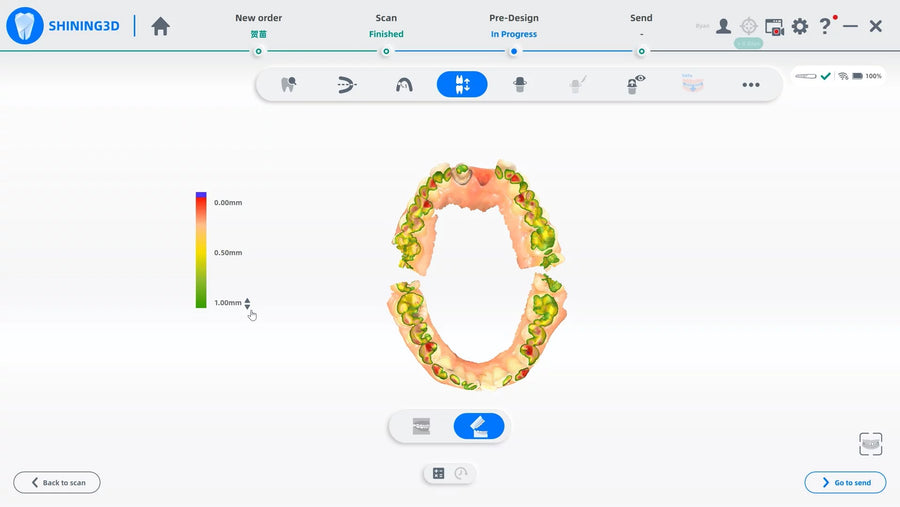

Occlusion check
Ensures accurate representation of occlusal relationships for further use.

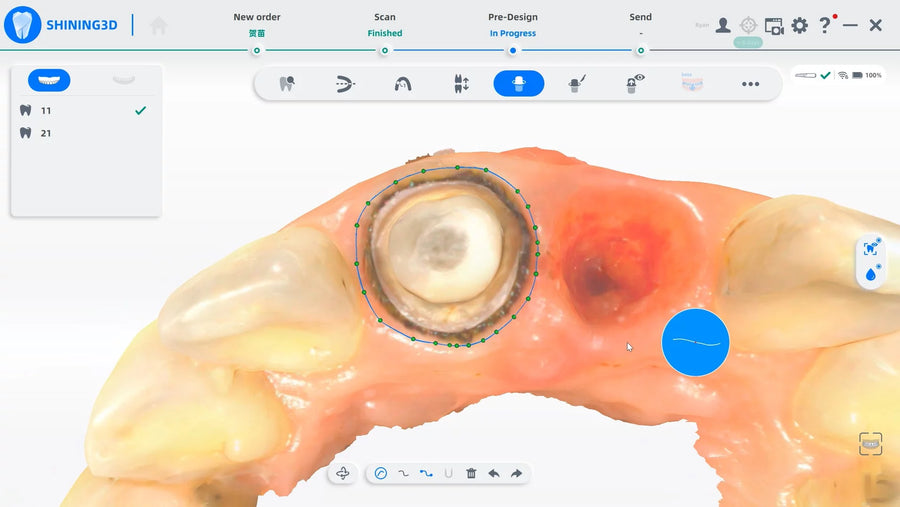

Margin line detection
Enables fast, automatic marking of preparation margins, making collaboration between the dentist and dental technician easier.
08
Applications
The Aoralscan 3 Wireless intraoral scanner can be used for a wide range of clinical indications, including restorations, implantology and orthodontics. Whether it is single-visit restorations or complex treatment carried out jointly by the clinic and the dental lab, the device always delivers a state-of-the-art user experience.
Technical data
- Scanning field
- – Standard tip
16 × 12 mm
- – Mini tip
12 × 9 mm
- Scanning depth
−2 mm to 20 mm from the tip exit surface
- Tip sterilization (autoclave, up to 100 cycles)
121°C / 102,9 kPa / 30 min; 134°C / 205,8 kPa / 4 min
- Tip preheating
40 s (anti-fog)
- Scanning principle
non-contact, structured light
- Wireless technology
Wi-Fi 6 (802.11 a/n/ac/ax)
- Effective wireless range
same room, up to 5 m
- Battery life
2 h of continuous scanning; 10 days on standby
- Dimensions (L × W × H)
270 ± 3 × 50 ± 3 × 40 ± 3 mm (with battery and tip)
- Total weight
330 ± 20 g (with battery and tip)
- Output format
STL, OBJ, PLY
- Connection
USB 3.0
- Power supply
12 V DC / 3 A
- Recommended Mac configuration
- Processor
at least M2 (8-core CPU, 10-core GPU); recommended: M1 Pro (8C CPU / 14C GPU), M2 Pro (10C CPU / 16C GPU), M1 Max (10C CPU / 24 or 32C GPU), M3 (8C CPU / 10C GPU), M4 (10C CPU / 10C GPU)
- RAM
16 GB or more
- Storage
SSD, 1 TB recommended
- Operating system
macOS Ventura 13 or later
- Interface
at least one USB-C port
- Recommended PC configuration
- CPU
Intel® Core™ i7-11700H or i7-10700F; at least i7-8700F; i7-11800H recommended
- Memory
32 GB recommended
- Storage
at least 256 GB SSD; 2 TB SSD recommended
- GPU
NVIDIA RTX 2060 / 2070 / 3060 / 3070 / 3080
- Operating system
Windows 10/11 Professional (64-bit)
- Display resolution
1920 × 1080, 60 Hz or higher
- I/O ports
≥ 2 USB 3.0 Type-A ports (or newer)
Frequently asked questions
How does the scanner connect to the computer?
Via Wi-Fi 6 (802.11 a/n/ac/ax) in the same room at a distance of up to 5 m – with no cable around the patient. A USB 3.0 connection for wired mode is included.
How many scans can be performed on one charge?
About 2 hours of continuous scanning (roughly 60 scans) and up to 10 days in standby.
Can the tips be autoclaved?
Yes – up to 100 cycles: 121 °C / 102.9 kPa / 30 min or 134 °C / 205.8 kPa / 4 min. Tip preheating (40 s) prevents fogging.
What does AI scanning offer?
During scanning, unnecessary soft tissue data is automatically recognized and filtered out, metal and edentulous jaws scan better, and a motion sensor lets you work with almost no need to touch the computer.
