Lightweight
Weighs only 106 g – comfortable to use all day with less hand fatigue.

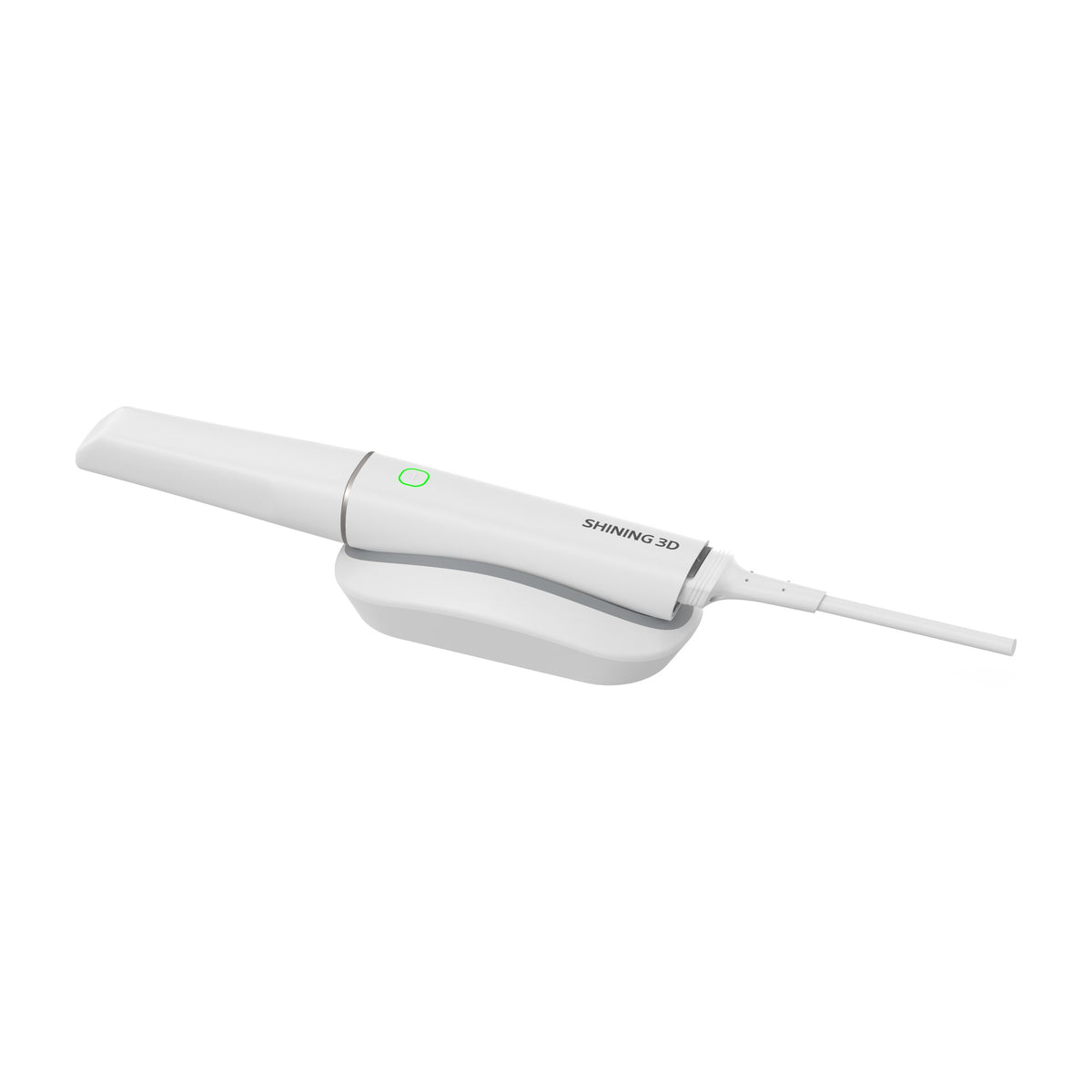

Shining 3D Aoralscan Elf – lightweight intraoral scanner
€11.500,00
€9.504,13 excl. VAT
SHINING 3D offer
Added value+ €2.000 prosthetic work credit
„Choose your own lab – IMMT pays for work up to €2.000.“
How the credit worksPrice incl. VAT · VAT invoice with every order
DPD / UPS courier delivery · usually 2–7 business days
EU companies with a valid VAT number buy without VAT – enter your VAT number at checkout.
Need an offer or want to see it in action?
Aoralscan Elf – a Shining 3D intraoral scanner designed as an affordable, very lightweight device for digital impressions. Weighing only 106 g, it reduces hand fatigue during longer procedures and connects to the computer with a single Type-C cable, without additional adapters....
Description- Consultations
- Help choosing the configuration and materials
- Delivery
- In Lithuania, the Baltic states and worldwide
Questions about this product?
Our product specialist will help you choose the right configuration.
Description
Aoralscan Elf – a Shining 3D intraoral scanner designed as an affordable, very lightweight device for digital impressions. Weighing only 106 g, it reduces hand fatigue during longer procedures and connects to the computer with a single Type-C cable, without additional adapters. Designed for dentists and labs that want to switch to digital impressions without a large investment.
The scanner uses non-contact structured light and captures true-color 3D images without powdering the teeth. With the three interchangeable tips included (large, standard and mini), scanning can be adapted to anything from an edentulous jaw to a child's smaller mouth. The integrated IntelliBite function automatically analyzes the occlusal surfaces and makes evaluating results easier.
- Weight: 106 g, ergonomic handle
- Connects with a single Type-C cable
- Three interchangeable tips for different clinical situations
- AI-powered IntelliBite bite analysis
- Open file formats: STL, OBJ, PLY
Aoralscan Elf does not offer intraoral photogrammetry (IPG) and does not support coded scan bodies – these functions are available on the Aoralscan Elite and Elite Wireless models. Elf can be used with the AoStation or e-Motion carts.
Single-cable connection
Connects with a single Type-C cable, no extra adapters or power supplies needed.
Powder-free color scanning
Captures true-color 3D images of teeth and soft tissue without additional preparation.
IntelliBite analysis
An AI tool automatically detects occlusal surfaces and makes it easier to discuss results with the patient.
Three tips
Large, standard and mini tips let you adapt the scanner to a wide range of clinical situations.
Frequently asked questions
Who is the Aoralscan Elf for?
Clinics and labs that want to switch to digital impressions without a large investment: it is an affordable and very light (106 g) scanner for everyday work.
How does it connect to the computer?
With a single Type-C cable, without additional adapters or power supplies.
Which tips are included?
Three interchangeable tips – large, standard and mini – suitable for both an edentulous jaw and a child's narrower mouth.
What is IntelliBite?
An integrated function that automatically analyzes occlusal surfaces and makes it easier to evaluate results after scanning.
Technical data
- Weight
- 106 g (without cable)
- Dimensions
- 245,5 × 27 × 30,5 mm
- Scanning principle
- non-contact, structured light
- Accuracy
- up to 0,05 mm
- Scan field (tips)
- large 19 × 14 mm; standard 16 × 12 mm; mini 12 × 9 mm
- Connection
- USB Type-C, 5 V / 3 A
- File formats
- STL, OBJ, PLY
- Operating system
- Windows 10 Professional 64-bit or later
- IPG / coded scan bodies
- not supported
- Cart compatibility
- AoStation, e-Motion
- Warranty
- 2 years
