Accurate impressions
The high elastic modulus (2895 MPa) reduces tray flexing under pressure.

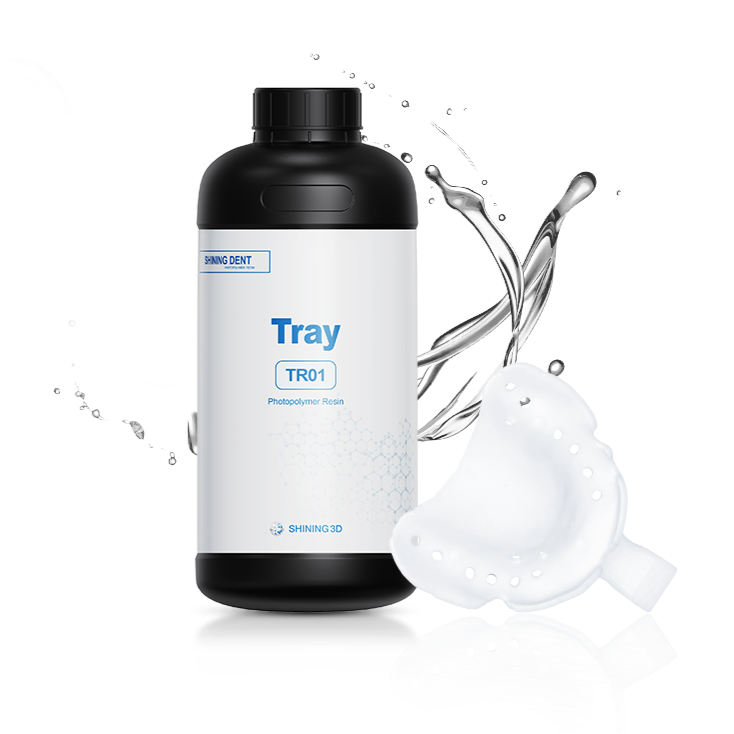

SHINING DENT Custom Tray Resin TR01
Custom Tray Resin TR01
€168,19
€139,00 excl. VAT
Price incl. VAT · VAT invoice with every order
DPD / UPS courier delivery · usually 2–7 business days
EU companies with a valid VAT number buy without VAT – enter your VAT number at checkout.
SHINING DENT TR01 – a white, biocompatible photopolymer 3D resin for printing custom impression trays. Its high elastic modulus means the printed tray flexes very little under high pressure, resulting in more accurate impressions. Thanks to its biocompatibility, the tray can be...
Description- Consultations
- Help choosing the configuration and materials
- Delivery
- In Lithuania, the Baltic states and worldwide
Questions about this product?
Our product specialist will help you choose the right configuration.
Description
SHINING DENT TR01 – a white, biocompatible photopolymer 3D resin for printing custom impression trays. Its high elastic modulus means the printed tray flexes very little under high pressure, resulting in more accurate impressions. Thanks to its biocompatibility, the tray can be used safely for short-term intraoral contact.
According to the manufacturer's description, the resin is also suitable for denture baseplates and other functional trays, and has a barely perceptible odor and taste. According to the manufacturer, a 1 kg bottle yields 35–38 trays.
After printing, the tray is washed and post-cured (FabCure 2 – 7 min).

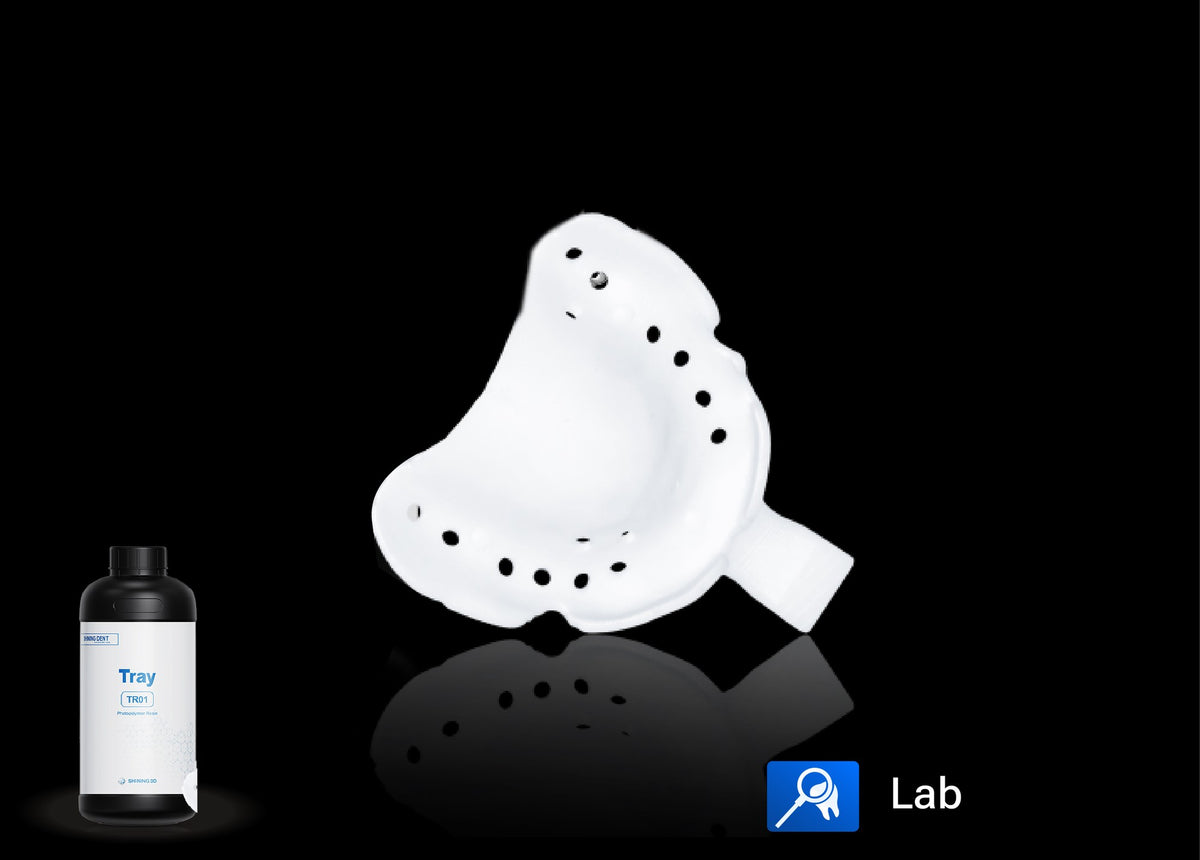

A custom tray printed from a digital model replicates the patient's anatomy, so the impression material is distributed more evenly. The resin is designed for SHINING 3D AccuFab series printers with a 405 nm wavelength.
- Custom impression trays for prosthodontics and implantology
- High rigidity – minimal deflection under pressure
- Biocompatible, for short-term intraoral contact
- Pack size – 1 kg bottle
Biocompatible
Safe for short-term contact in the oral cavity.
Economical
About 35–38 trays can be printed from a 1 kg bottle.
Technical data
- Indication
- custom impression trays, base plates
- Color
- white
- Packaging
- 1 kg bottle (approx. 35–38 trays)
- Wavelength
- 405 nm
- Viscosity
- 362 cps (25 °C)
- Hardness (Shore D)
- 87
- Flexural strength
- 93 MPa (ISO 178)
- Elastic modulus
- 2895 MPa (ISO 178)
- Tensile strength
- 45 MPa (ISO 527)
- Elongation at break
- 4,9 % (ISO 527)
- Post-curing
- FabCure 2: 7 min
- Storage conditions
- −10–60 °C, relative humidity 5–90 %
- Compatible printers
- SHINING 3D AccuFab series printers
