Biocompatible
FDA Class I and ISO 10993 compliance: for non-implantable devices, contact up to 24 h.

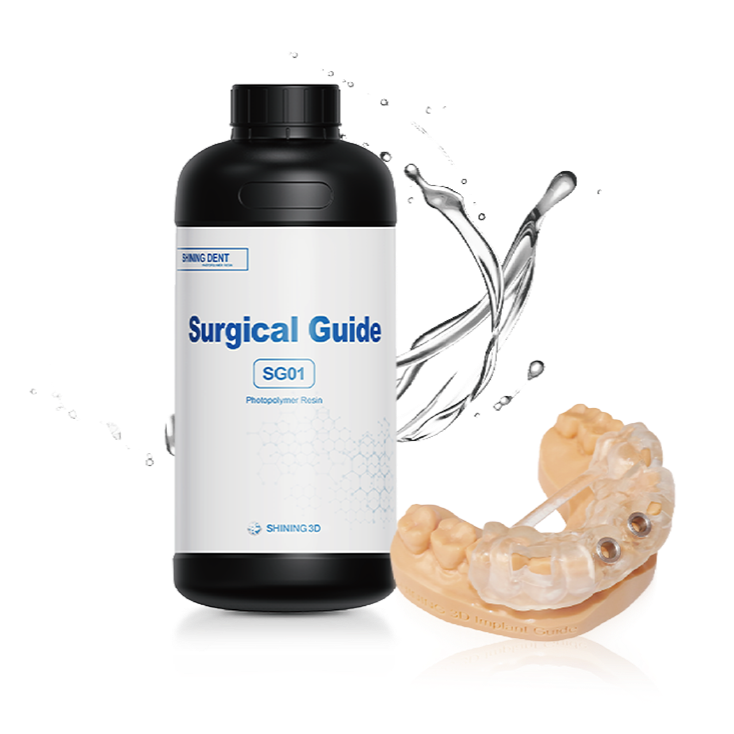

SHINING DENT Surgical Guide Resin SG01
Surgical Guide Resin SG01
€163,35
€135,00 excl. VAT
Price incl. VAT · VAT invoice with every order
DPD / UPS courier delivery · usually 2–7 business days
EU companies with a valid VAT number buy without VAT – enter your VAT number at checkout.
SHINING DENT SG01 is a clear, biocompatible photopolymer 3D resin for printing dental surgical guides. According to the manufacturer, the resin is FDA-registered as a Class I medical device and meets ISO 10993 requirements, making it suitable for custom, non-implantable devices with...
Description- Consultations
- Help choosing the configuration and materials
- Delivery
- In Lithuania, the Baltic states and worldwide
Questions about this product?
Our product specialist will help you choose the right configuration.
Description

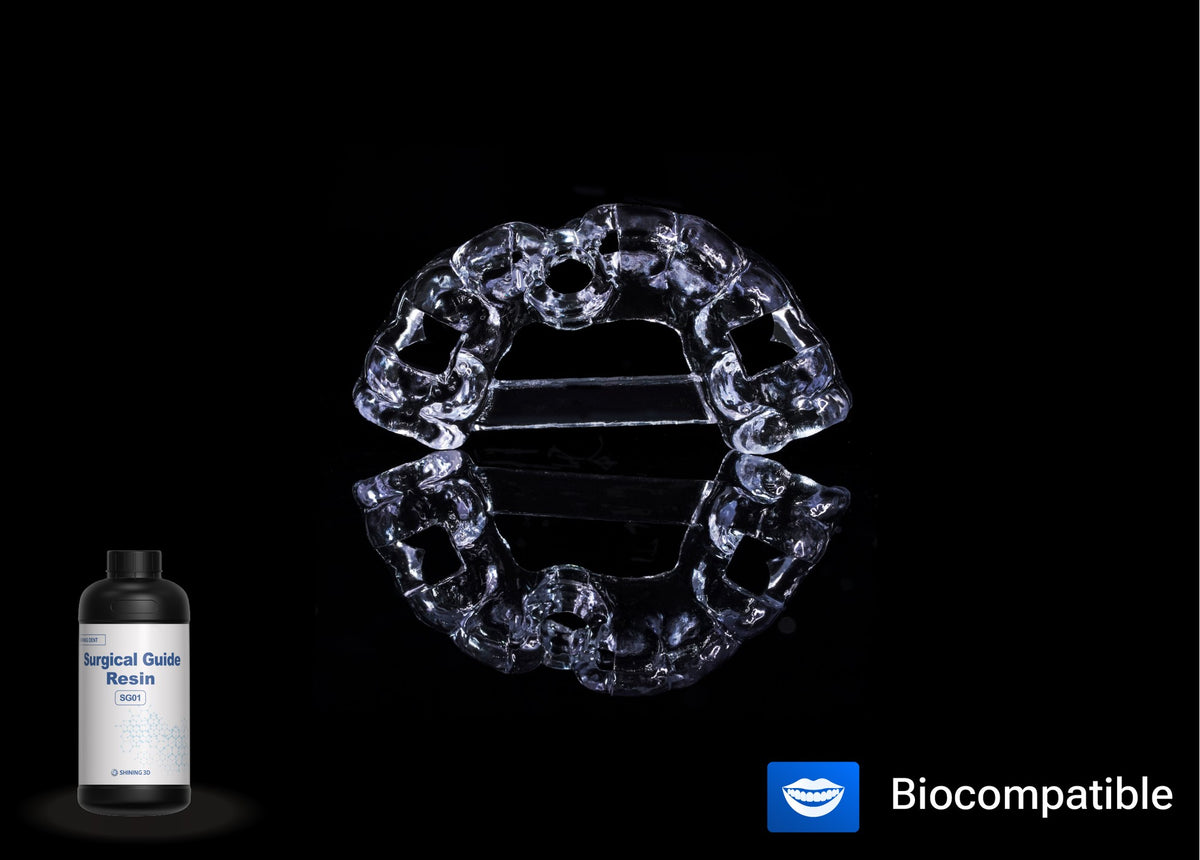

SHINING DENT SG01 is a clear, biocompatible photopolymer 3D resin for printing dental surgical guides. According to the manufacturer, the resin is FDA-registered as a Class I medical device and meets ISO 10993 requirements, making it suitable for custom, non-implantable devices with body contact of up to 24 hours.
SG01 is a rigid polymer with minimal deflection, so the guide keeps its shape during the procedure and provides stable, precise drill guidance. Its transparency allows the fit of the guide on the teeth and mucosa, as well as the surgical field, to be seen. According to the manufacturer, one 1 kg bottle yields 40–43 guides.
After printing, the guide is washed in 95% ethanol and post-cured for 5 min (FabCure 1 or FabCure 2).
The resin is designed for 405 nm SHINING 3D AccuFab series printers, and its flexural strength (81 MPa) and flexural modulus (2047 MPa) ensure guide rigidity.
- Surgical guides for implantology
- Orthodontic guides (Ortho Guide)
- Rigid, minimal deflection
- Clear – fit is easy to see
- Packaging – 1 kg bottle
Rigid and stable
Minimal flexing allows the guide to hold its shape and guide the drill accurately.
Transparent
The guide fit and the surgical field are clearly visible.
Short post-processing
Post-curing takes only 5 min.
Technical data
- Indication
- surgical guides, orthodontic guides
- Color
- clear
- Packaging
- 1 kg bottle (approx. 40–43 guides)
- Wavelength
- 405 nm
- Viscosity
- 527 cps (25 °C)
- Hardness (Shore D)
- 84
- Flexural strength
- 81 MPa (ISO 178)
- Elastic modulus
- 2047 MPa (ISO 178)
- Tensile strength
- 43 MPa (ISO 527)
- Elongation at break
- 12,2 % (ISO 527)
- Biocompatibility
- FDA Class I, ISO 10993; body contact up to 24 h
- Washing
- 95 % ethanol, ultrasonic bath 60 + 10 s
- Post-curing
- FabCure 1 / FabCure 2: 5 min
- Compatible printers
- SHINING 3D AccuFab series printers
