3D Face Scanner MetiSmile MR
€7.490,00 excl. VAT
Price incl. VAT · VAT invoice with every order
DPD / UPS courier delivery · usually 2–7 business days
EU companies with a valid VAT number buy without VAT – enter your VAT number at checkout.
MetiSmile MR – an advanced 3D face scanner for dentistry that combines fast geometry capture with detailed HD texture and mandibular movement trajectory recording. The system automatically aligns facial data with IOS/CBCT data, guides the user step by step and works in...
Description- Consultations
- Help choosing the configuration and materials
- Delivery
- In Lithuania, the Baltics and worldwide
Questions about this product?
Our product specialist will help you choose the right configuration.
Description
MetiSmile MR – an advanced 3D face scanner for dentistry that combines fast geometry capture with detailed HD texture and mandibular movement trajectory recording. The system automatically aligns facial data with IOS/CBCT data, guides the user step by step and works in handheld or fixed mode. Flash-free (IR) scanning is gentle on the eyes, while automatic brightness adjustment ensures consistent color and skin rendering. Open export in STL/OBJ/PLY formats makes collaboration with the lab easier. All this in an elegant, compact ~800 g housing.
Key benefits
• Mandibular movement recording – reliable functional and occlusal analysis
• Fast scanning – smooth appointments and less time spent on documentation
• HD texture – lifelike reproduction of color and skin detail
• Automatic data alignment – face + IOS + (optionally) CBCT in one coordinate system
• Guided workflow – step-by-step instructions, shorter learning curve
• Flash-free IR + automatic brightness – patient comfort and consistent results
• Handheld and fixed modes – flexible use in the treatment room or studio
• Open ecosystem – export to STL / OBJ / PLY, easy CAD integration

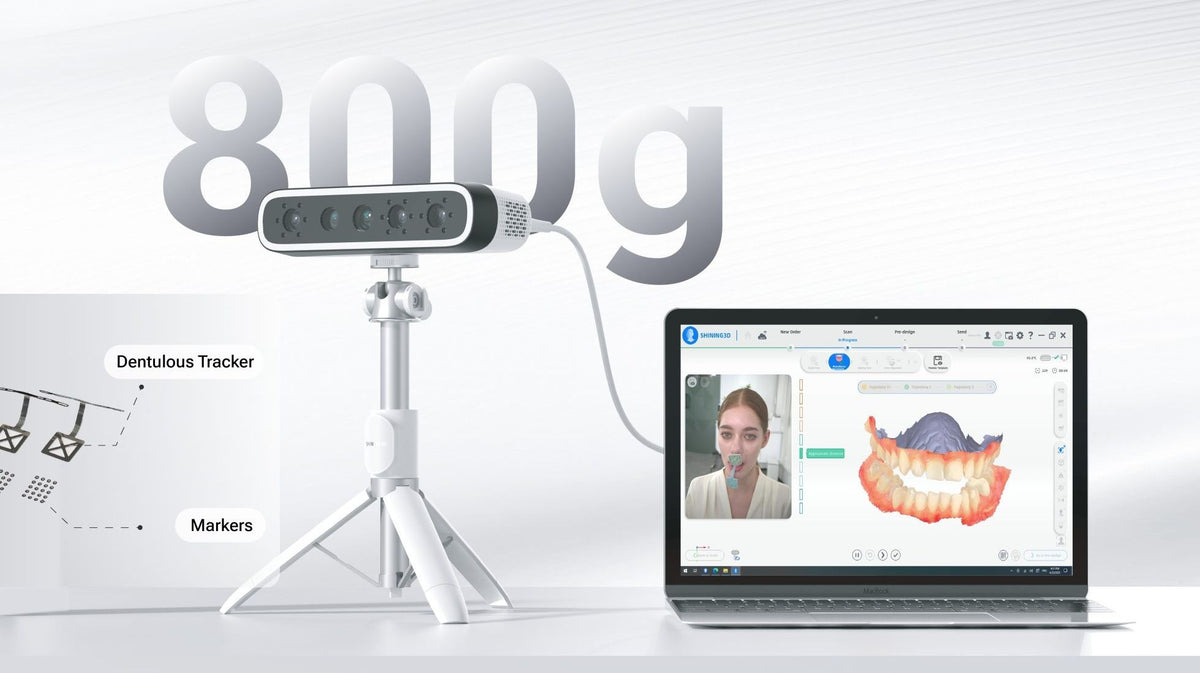

• Light and compact – about 800 g, comfortable to use and easy to move
Software features
• Ortho Simulation – visualization and planning of orthodontic treatment

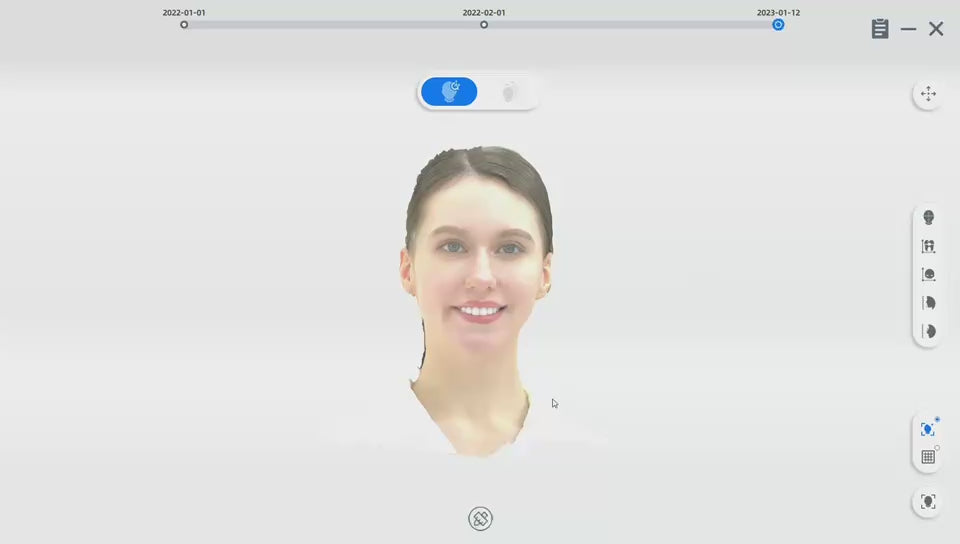

• Facial feature measurements and comparisons – esthetics, symmetry, before / after documentation

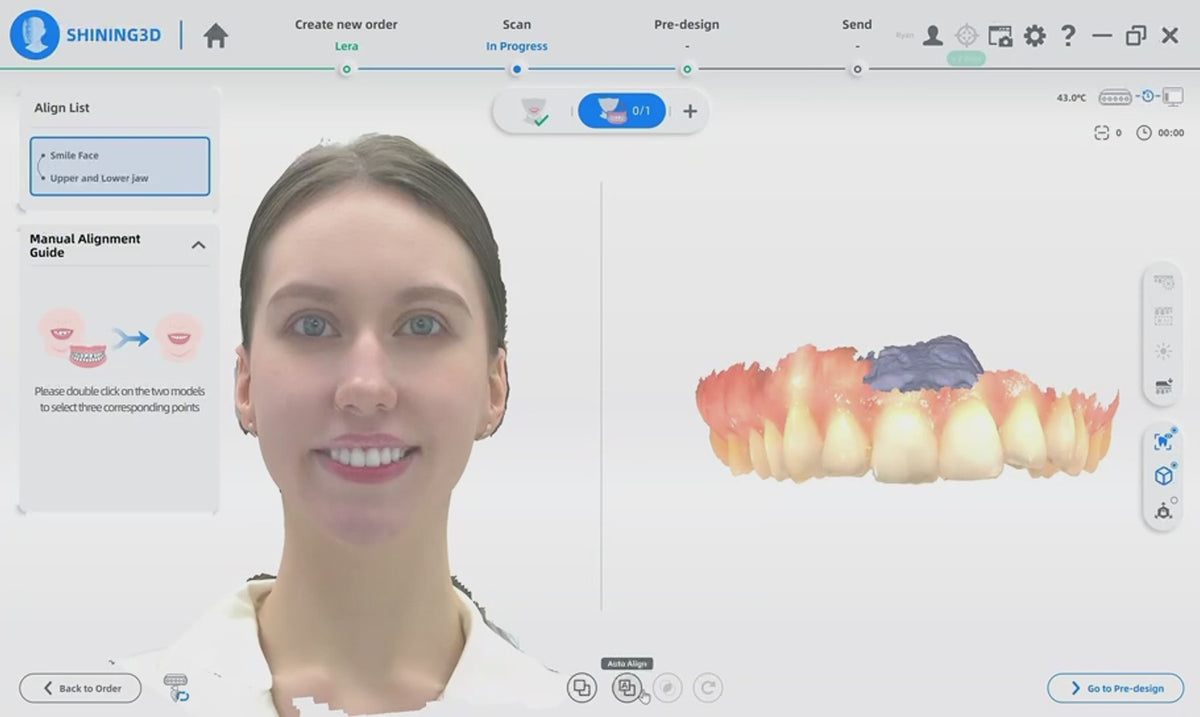

• Automatic alignment – of facial and intraoral (IOS) scans
• Smart guidance – tips at every scanning step

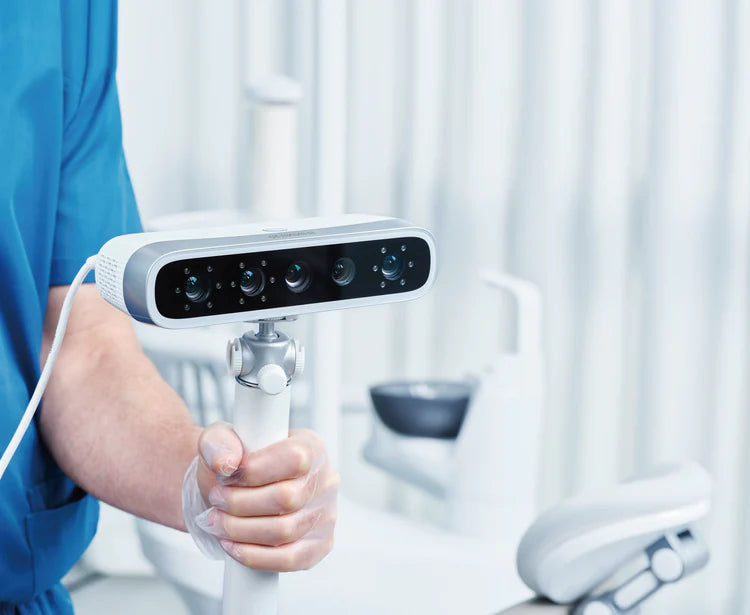

MetiSmile
The first face scanner developed and manufactured by SHINING 3D exclusively for dentistry. It quickly captures facial information, creates a 3D model and, with advanced software, supports clinical diagnostics.

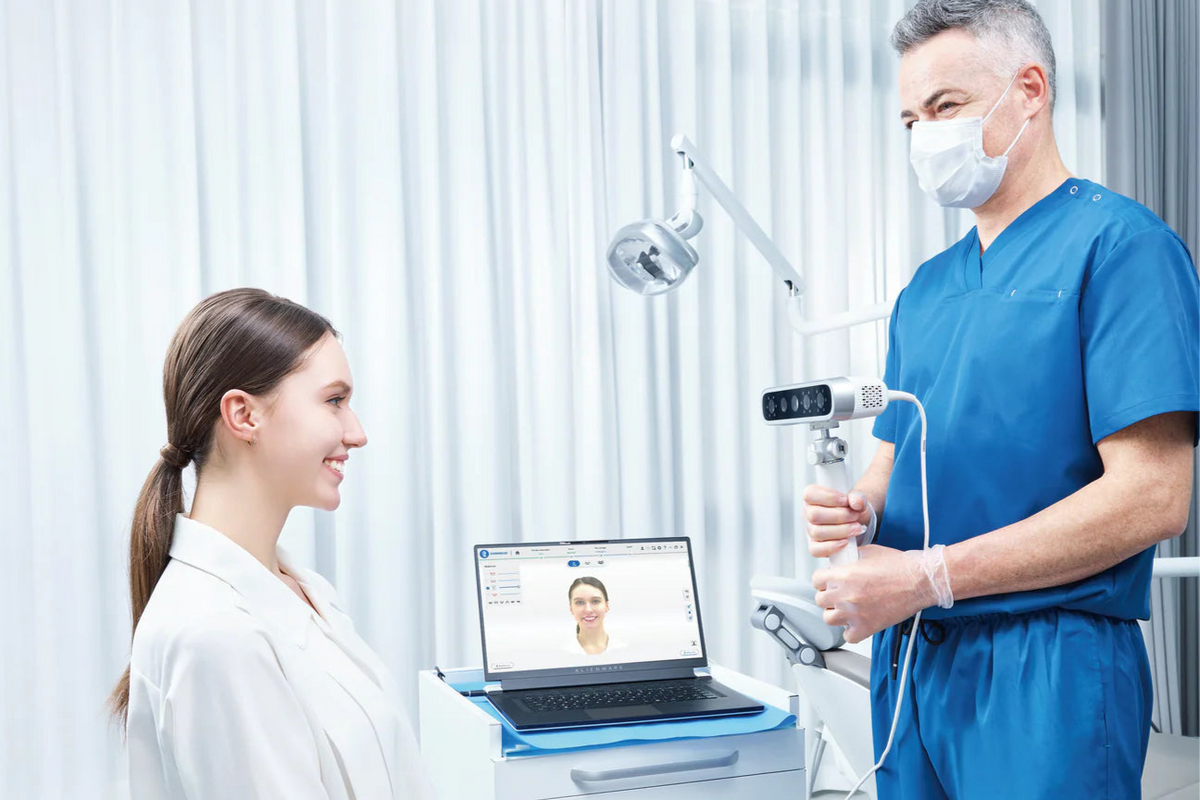

Fast scanning
In just 10 seconds, the sensitive scanner captures images from multiple angles and reconstructs a three-dimensional face model.

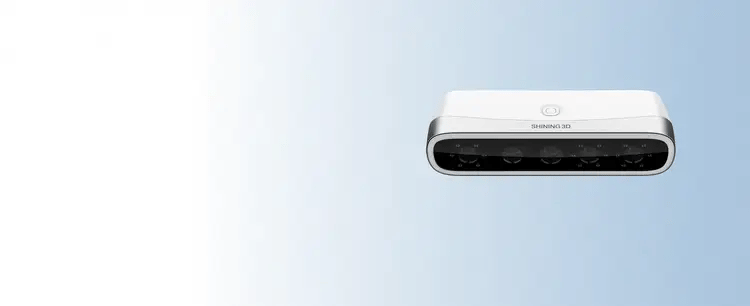

High accuracy
Three data acquisition cameras and one 5.0 MP HD texture camera deliver scanning accuracy of up to 50 μm. MetiSmile also captures very clear tooth details.
Orthodontic treatment simulation
Among other things, the module includes automatic lip extraction and one-click tooth segmentation. The smart before / after presentation of results is complemented by integration of face scan data.
Facial feature measurement and comparison
Intuitive software recognizes three-dimensional facial features, lets you measure distances in 3D data and compare changes before and after treatment. These tools help dentists diagnose and evaluate treatment more effectively.
Technical data
- Model
MetiSmile – MR
- Resolution
data acquisition cameras 1,3 MP; HD texture camera 5,0 MP
- Accuracy
50 μm
- Field of view (FOV)
at 500 mm working distance – 210 × 270 mm
- Output format
PLY, OBJ, STL
- White LED color temperature
5500 K
- Dimensions
215 × 50 × 75 mm
- Weight
800 g
- Power supply
input AC 100–220 V~, 50/60 Hz, 1,5 A; output DC 12 V, 7,0 V
- Recommended computer configuration
- CPU
Intel Core i7-8700 or newer
- Memory
at least 16 GB, 32 GB recommended
- Storage
SSD 256 GB or more
- Display resolution
1920 × 1080, 60 Hz or higher
- Connection
USB 3.0
- GPU
NVIDIA RTX 2060 6 GB or newer
- Operating system
Microsoft Windows 10 (64-bit) or later
Frequently asked questions
How does MetiSmile MR differ from the basic MetiSmile?
In the MR version, mandibular motion recording (Jaw Motion Tracking) is a standard feature – the motion trajectory is captured and exported to exocad or other CAD software.
What are the scanning speed and accuracy?
3D facial data is captured in ~10 s with three 1.3 MP cameras and a 5.0 MP HD texture camera; accuracy 50 μm, field of view 210 × 270 mm at a distance of 500 mm.
Is scanning uncomfortable for patients?
Scanning uses flash-free infrared light, so the process is comfortable for the patient; automatic brightness adjustment ensures natural skin color.
Which accessories are needed for motion recording?
Consumable motion trackers and markers (Jaw Motion Consumables kits) are used and purchased separately. Recommended computer: Intel Core i7-8700+, 32 GB RAM, RTX 2060 6 GB.
