3D Face Scanner MetiSmile
€4.690,00 excl. VAT
Price incl. VAT · VAT invoice with every order
DPD / UPS courier delivery · usually 2–7 business days
EU companies with a valid VAT number buy without VAT – enter your VAT number at checkout.
MetiSmile – SHINING 3D's first 3D face scanner, developed exclusively for dentistry. It captures facial data quickly and creates an accurate 3D model, while smart software supports diagnosis, treatment planning and communication with the patient and the lab. Key benefits:• Fast scanning...
Description- Consultations
- Help choosing the configuration and materials
- Delivery
- In Lithuania, the Baltics and worldwide
Questions about this product?
Our product specialist will help you choose the right configuration.
Description

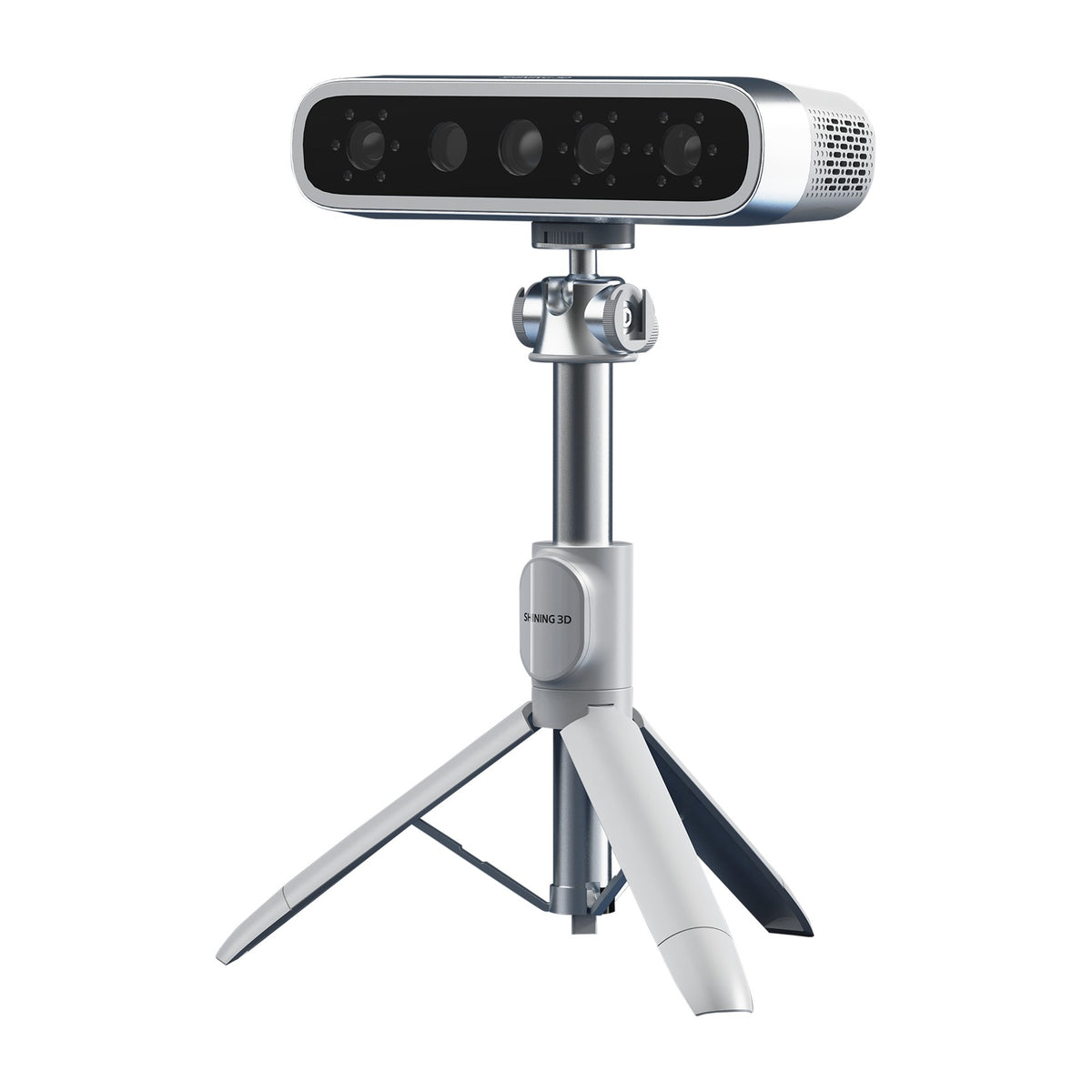

MetiSmile – SHINING 3D's first 3D face scanner, developed exclusively for dentistry. It captures facial data quickly and creates an accurate 3D model, while smart software supports diagnosis, treatment planning and communication with the patient and the lab.
Key benefits:
• Fast scanning – about 10 s to capture 3D facial data
• High accuracy – up to 50 μm; 3 data acquisition cameras + HD 5.0 MP texture camera
• Natural texture – automatic brightness adjustment, lifelike skin color
• Flash-free scanning (IR) – gentle on the eyes, comfortable for the patient
• Ortho Simulation – visualization and planning of orthodontic treatment (“before / after” effect)
• Facial feature measurement and comparison – assessment of esthetic and functional changes
• Automatic data alignment – alignment of face scans with intraoral data
• Open ecosystem – export in STL / OBJ / PLY formats
• Guided workflow – intuitive step-by-step instructions
• Two operating modes – handheld and fixed
Note: MetiSmile does not have the mandibular movement trajectory recording function (Jaw Motion Tracking) – it comes as standard on the MetiSmile MR model.
MetiSmile
The first face scanner developed and manufactured by SHINING 3D exclusively for dentistry. It quickly captures facial information, creates a 3D model and, with advanced software, supports clinical diagnostics.
Fast scanning
In just 10 seconds, the sensitive scanner captures images from multiple angles and reconstructs a three-dimensional face model.
High accuracy
Three data acquisition cameras and one 5.0 MP HD texture camera deliver scanning accuracy of up to 50 μm. MetiSmile also captures very clear tooth details.
Orthodontic treatment simulation
Among other things, the module includes automatic lip extraction and one-click tooth segmentation. The smart before / after presentation of results is complemented by integration of face scan data.
Facial feature measurement and comparison
Intuitive software recognizes three-dimensional facial features, lets you measure distances in 3D data and compare changes before and after treatment. These tools help dentists diagnose and evaluate treatment more effectively.
Technical data
- Model
MetiSmile
- Resolution
data acquisition cameras 1,3 MP; HD texture camera 5,0 MP
- Accuracy
50 μm
- Field of view (FOV)
210 × 270 mm at 500 mm working distance
- Output format
PLY, OBJ, STL
- White LED color temperature
5500 K
- Dimensions
215 × 50 × 75 mm
- Weight
800 g
- Power supply
input AC 100–220 V~, 50/60 Hz, 1,5 A; output DC 12 V, 7,0 V
- Recommended computer configuration
- CPU
Intel Core i7-8700 or newer
- Memory
at least 16 GB, 32 GB recommended
- Storage
SSD 256 GB or more
- Display resolution
1920 × 1080, 60 Hz or higher
- Connection
USB 3.0
- GPU
NVIDIA RTX 2060 6 GB or newer
- Operating system
Microsoft Windows 10 (64-bit) or later
Frequently asked questions
What is a face scanner used for in dentistry?
For diagnosis, treatment planning and communication with the patient and the lab: 3D facial data is aligned with intraoral data, and Ortho Simulation visualizes the “before / after” result of orthodontic treatment.
In which formats is data exported?
STL, OBJ and PLY – an open ecosystem compatible with any CAD software (e.g. exocad).
Can jaw movements be recorded?
In the basic MetiSmile version, this function is purchased as a separate software module; MetiSmile MR includes it as standard.
What computer is needed?
Intel Core i7-8700 or newer, 16–32 GB RAM, SSD 256 GB+, NVIDIA RTX 2060 6 GB or newer, Windows 10 64-bit; the scanner connects via USB 3.0.
