Easy to polish
Clasp surfaces are easy to polish to a smooth, glossy finish.

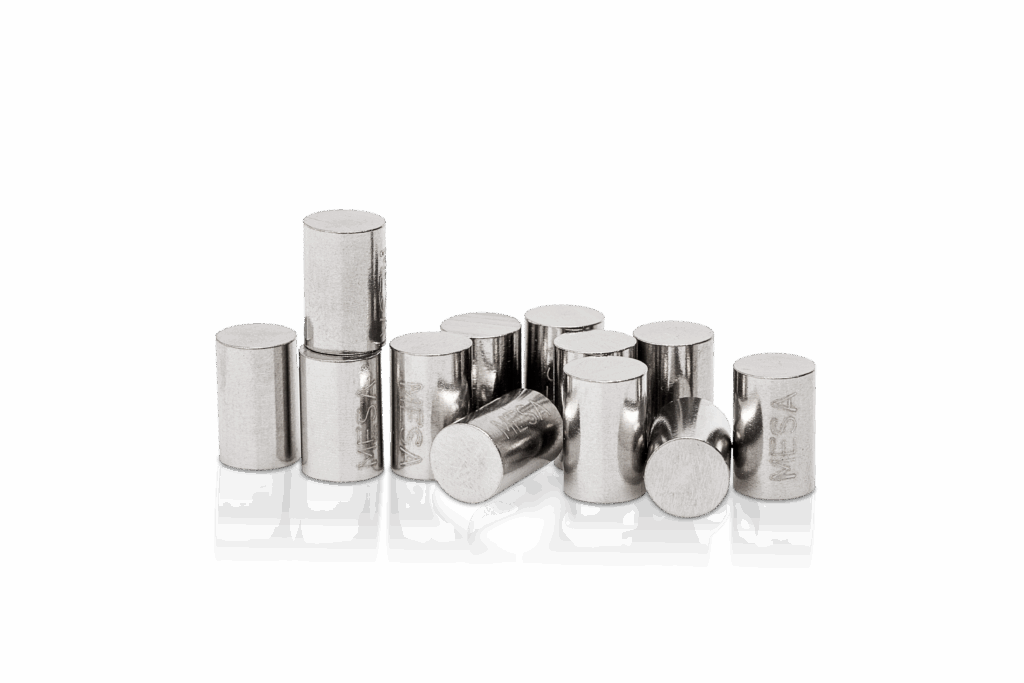

MESA MAGNUM VIP-A – Cr-Co-Mo Alloy for Cast Partial Dentures
€211,75
€175,00 excl. VAT
Price incl. VAT · VAT invoice with every order
DPD / UPS courier delivery · usually 2–7 business days
EU companies with a valid VAT number buy without VAT – enter your VAT number at checkout.
MESA MAGNUM VIP-A – a chromium-cobalt-molybdenum (Cr-Co-Mo) dental alloy for removable partial (cast clasp-retained) denture frameworks with clasps. It is classified as a Type 5 alloy according to ISO 22674.The alloy offers good mechanical properties and is easy to polish to a...
Description- Consultations
- Help choosing the configuration and materials
- Delivery
- In Lithuania, the Baltic states and worldwide
Questions about this product?
Our product specialist will help you choose the right configuration.
Description

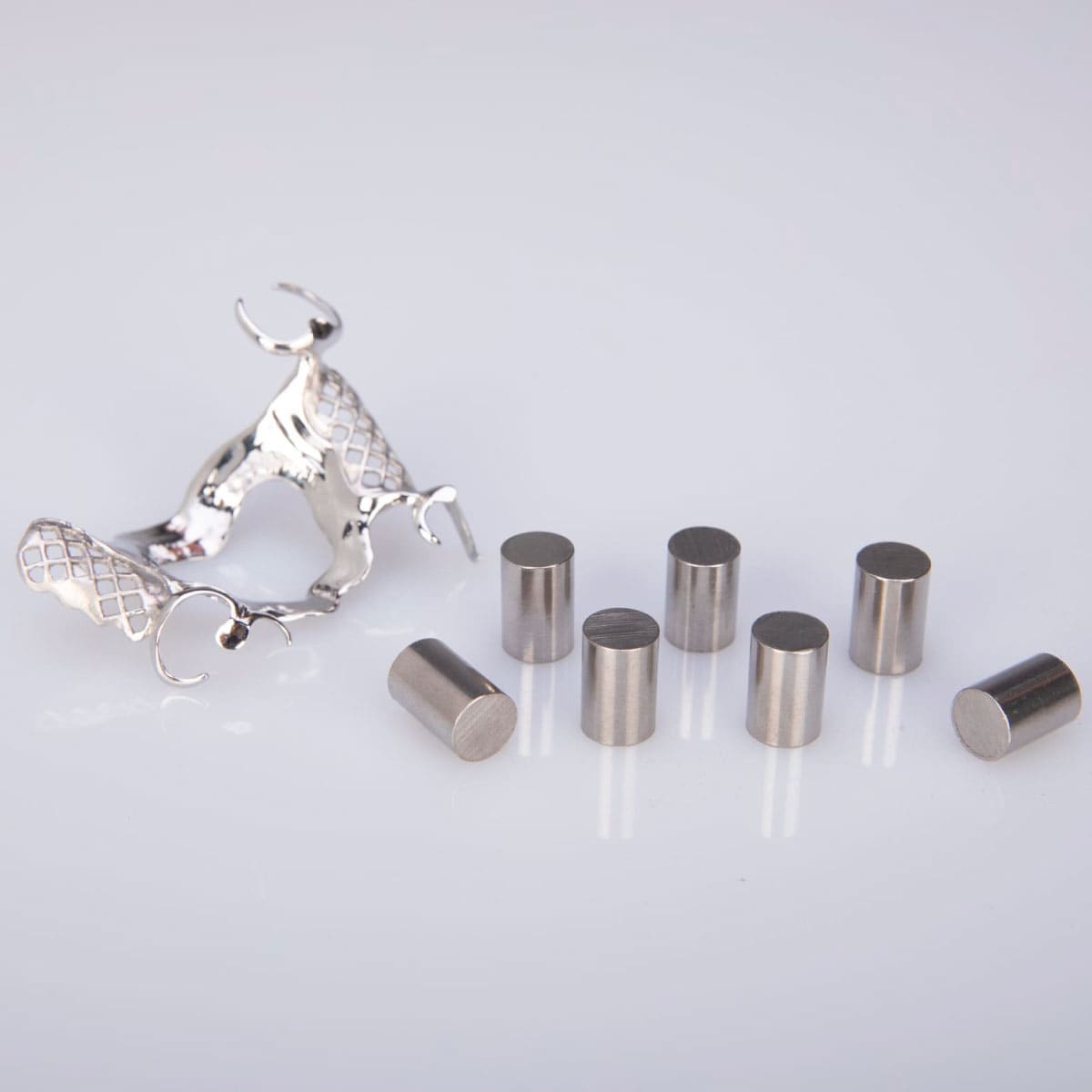

MESA MAGNUM VIP-A – a chromium-cobalt-molybdenum (Cr-Co-Mo) dental alloy for removable partial (cast clasp-retained) denture frameworks with clasps. It is classified as a Type 5 alloy according to ISO 22674.
The alloy offers good mechanical properties and is easy to polish to a high shine, making it well suited for clasps. Although it belongs to the high-strength alloy group, its modulus of elasticity (211 GPa) is not excessively high, so the restoration remains slightly more flexible.
- Type 5 Cr-Co-Mo alloy according to ISO 22674
- For removable partial (cast clasp-retained) denture frameworks with clasps
- Good mechanical properties, easy to polish
- Balanced modulus of elasticity (211 GPa)
- Pack – 1 kg
Balanced rigidity
An elastic modulus of 211 GPa combines strength with a certain degree of flexibility.
High hardness
A hardness of 386 HV10 ensures durability under everyday loads.
Technical data
- Composition
- Cr-Co-Mo
- Type according to ISO 22674
- Type 5
- Purpose
- Frameworks with clasps for removable partial (clasp-retained) dentures
- Solidus–liquidus temperature
- 1350–1406 °C
- Coefficient of thermal expansion
- 14,7–15 × 10⁻⁶ K⁻¹ (25–500/600 °C)
- Casting temperature
- 1460 °C
- Density
- 8,4 g/cm³
- Hardness
- 386 HV10
- Elongation at break
- 6 %
- Yield strength (Rp0,2)
- 580 MPa
- Flexural modulus
- 211 GPa
- Pack
- 1 kg
