High resolution
A true resolution of 24 lp/mm enables accurate diagnosis.
Ray RIOSensor+ Size 1 – Intraoral X-ray Sensor
Price and lead time on request
Delivery and lead time agreed individually
Ray RIOSensor+ – a digital intraoral X-ray sensor for taking periapical and bitewing images in the dental office. Manufacturer: Ray Co., Ltd. (South Korea). Size 1 is the smaller sensor, better suited to narrower mouths or patients for whom a standard-size sensor...
Description- Consultations
- Help choosing the configuration and materials
- Delivery
- In Lithuania, the Baltic states and worldwide
Questions about this product?
Our product specialist will help you choose the right configuration.
Description
Ray RIOSensor+ – a digital intraoral X-ray sensor for taking periapical and bitewing images in the dental office. Manufacturer: Ray Co., Ltd. (South Korea). Size 1 is the smaller sensor, better suited to narrower mouths or patients for whom a standard-size sensor is harder to position. The sensor connects to the computer via USB 2.0 and is used together with an intraoral X-ray unit and imaging software.
The sensor is based on a Super CMOS detector with a fiber optic layer and a CsI scintillator, providing a true resolution of 24 lp/mm. The housing is fully waterproof (verified by a 24-hour immersion test), and the reinforced design withstands impacts, bites and drops. The cable has been tested with a 7 kg load and tens of thousands of bending cycles.

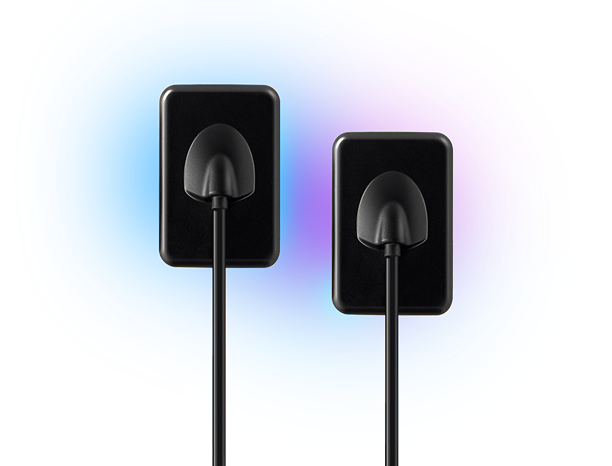

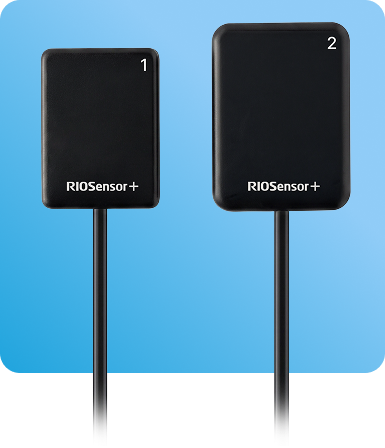

- Available in two sensor sizes – Size 1 (this one) and Size 2
- 24 lp/mm true resolution, CsI scintillator with fiber optic protection
- Fully waterproof housing, suitable for immersion disinfection
- Reinforced, impact-resistant housing and cable
- Preset Endo, Perio and DEJ image filters
- Compatible with popular imaging software via TWAIN
Durability
The reinforced housing withstands impacts, bites and drops, and the cable has been tested for long-term intensive use.
Fully waterproof
The sensor can be disinfected by immersion – verified by a 24-hour immersion test.
More comfortable for the patient
A thin (7.3 mm) housing, rounded edges and a compact cable entry make sensor positioning easier.
Easy integration
Thanks to TWAIN compatibility, the sensor can be used with most popular intraoral imaging software.
Frequently asked questions
What images is RIOSensor+ designed for?
Periapical and bitewing images in the practice; Size 1 is a smaller sensor for narrower mouths or patients for whom a standard sensor is harder to place.
What is the resolution?
A Super CMOS detector with a fiber optic layer and CsI scintillator delivers a true resolution of 24 lp/mm.
Is the sensor durable?
The housing is fully waterproof (24-hour immersion test) and withstands impacts, bites and drops; the cable has been tested with a 7 kg load and tens of thousands of bending cycles.
How does it connect and what does it work with?
Via USB 2.0 to a computer; it is used with an intraoral X-ray unit and imaging software. Manufacturer – Ray Co., Ltd.
Technical data
- Sensor size
- Size 1
- Technology
- Super CMOS + fiber optic plate + CsI scintillator
- True resolution
- 24 lp/mm
- Theoretical resolution
- 26,3 lp/mm
- Active image area
- 22,2 × 29,6 mm
- Pixel matrix
- 1168 × 1562
- Pixel size
- 19 µm
- Sensor thickness
- 7,3 mm
- Housing dimensions
- 27,6 × 37,7 mm
- Connection
- USB 2.0
- Cable length
- ~3,0 m
- Water resistance
- fully waterproof (24-hour immersion test)
- Software compatibility
- TWAIN
