Narrow profile
The 3.5 mm diameter suits the anterior region, where anatomy limits space for a wider implant.

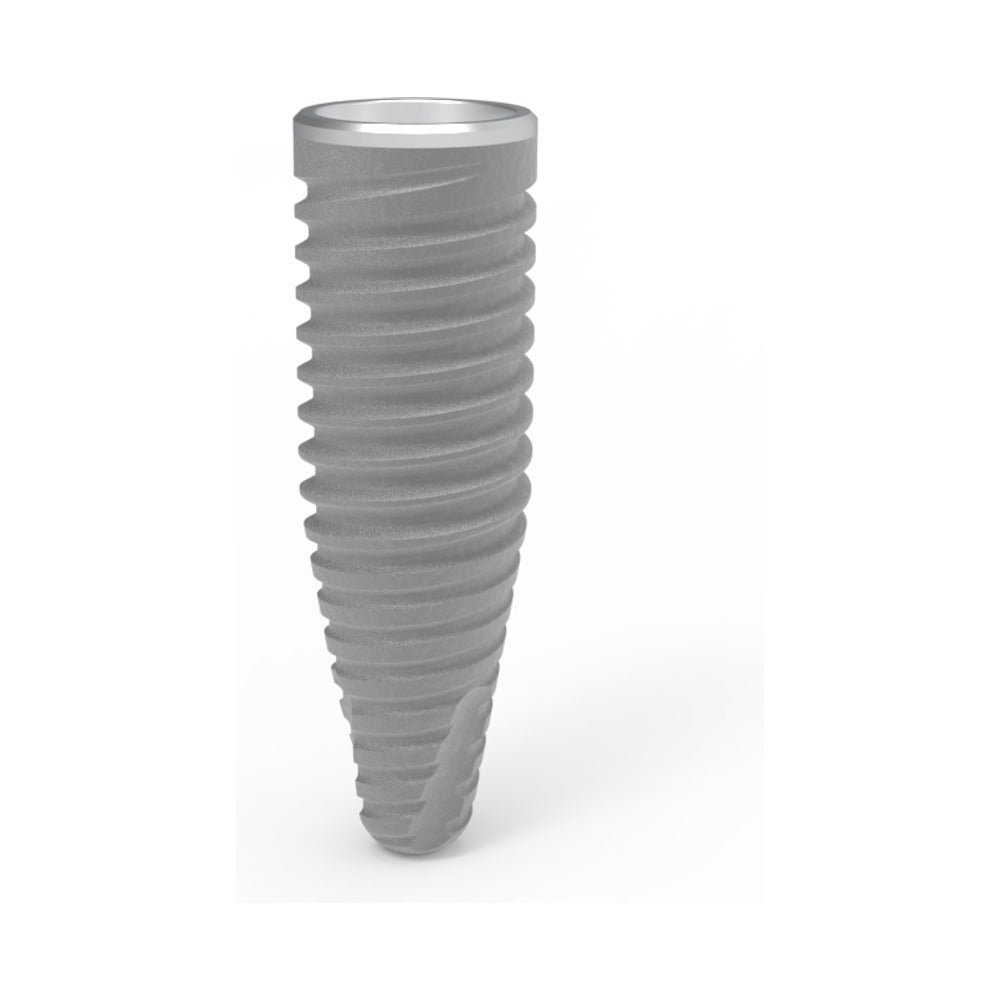

MESA IGEA Narrow Ti4 – Dental Implant 3.5 × 8 mm
€65,34
€54,00 excl. VAT
Price incl. VAT · VAT invoice with every order
DPD / UPS courier delivery · usually 2–7 business days
EU companies with a valid VAT number buy without VAT – enter your VAT number at checkout.
MESA IGEA system Narrow dental implant made of Grade 4 medical titanium, catalog code Ti4-Igea-1003. Neck diameter 3.5 mm, apex diameter 1.6 mm, length 8 mm. It is intended for surgeons placing implants in the anterior region of the jaws, where anatomy...
Description- Consultations
- Help choosing the configuration and materials
- Delivery
- In Lithuania, the Baltic states and worldwide
Questions about this product?
Our product specialist will help you choose the right configuration.
Description
MESA IGEA system Narrow dental implant made of Grade 4 medical titanium, catalog code Ti4-Igea-1003. Neck diameter 3.5 mm, apex diameter 1.6 mm, length 8 mm. It is intended for surgeons placing implants in the anterior region of the jaws, where anatomy and limited space call for a smaller-diameter implant.
The implant features a conical connection with an internal hexagon (12° taper) and platform switching, a 0.3 mm machined collar that allows placement at or below the crestal bone level, and an atraumatic apex. The surface is treated with SLA technology (sandblasted and acid-etched), which promotes osseointegration.
- Grade 4 medical titanium
- Diameter 3,5 mm (Narrow), length 8 mm
- Conical connection with internal hexagon, 12° taper
- SLA surface, platform switching
- Recommended insertion torque – up to 45 Ncm
SLA surface
The sandblasted and acid-etched surface creates micro-roughness that promotes osseointegration.

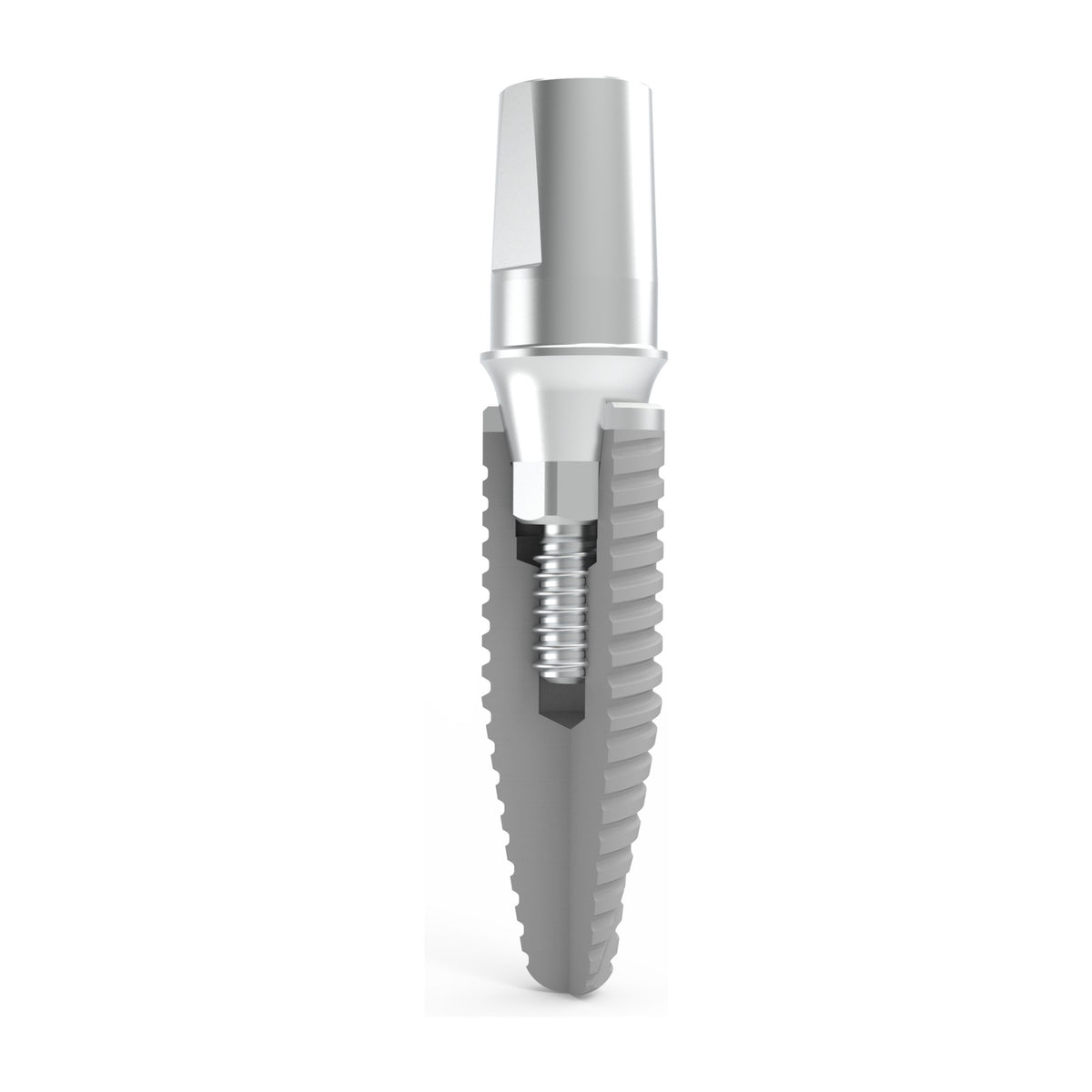

Stable connection
The 12° conical connection with an internal hex distributes the load evenly and helps prevent screw loosening.
Soft tissue protection
Platform switching helps preserve peri-implant tissues.
Technical data
- Material
- Titanium Grade 4
- Code
- Ti4-Igea-1003
- Diameter (D1)
- 3,5 mm (Narrow)
- Apex diameter (D2)
- 1,6 mm
- Length (L)
- 8 mm
- Connection
- Conical, internal hex, 12° taper
- Surface
- SLA (sandblasted and acid-etched)
- Collar
- Machined, 0,3 mm
- Prosthetic screw
- M2
- Recommended insertion torque
- up to 45 Ncm
