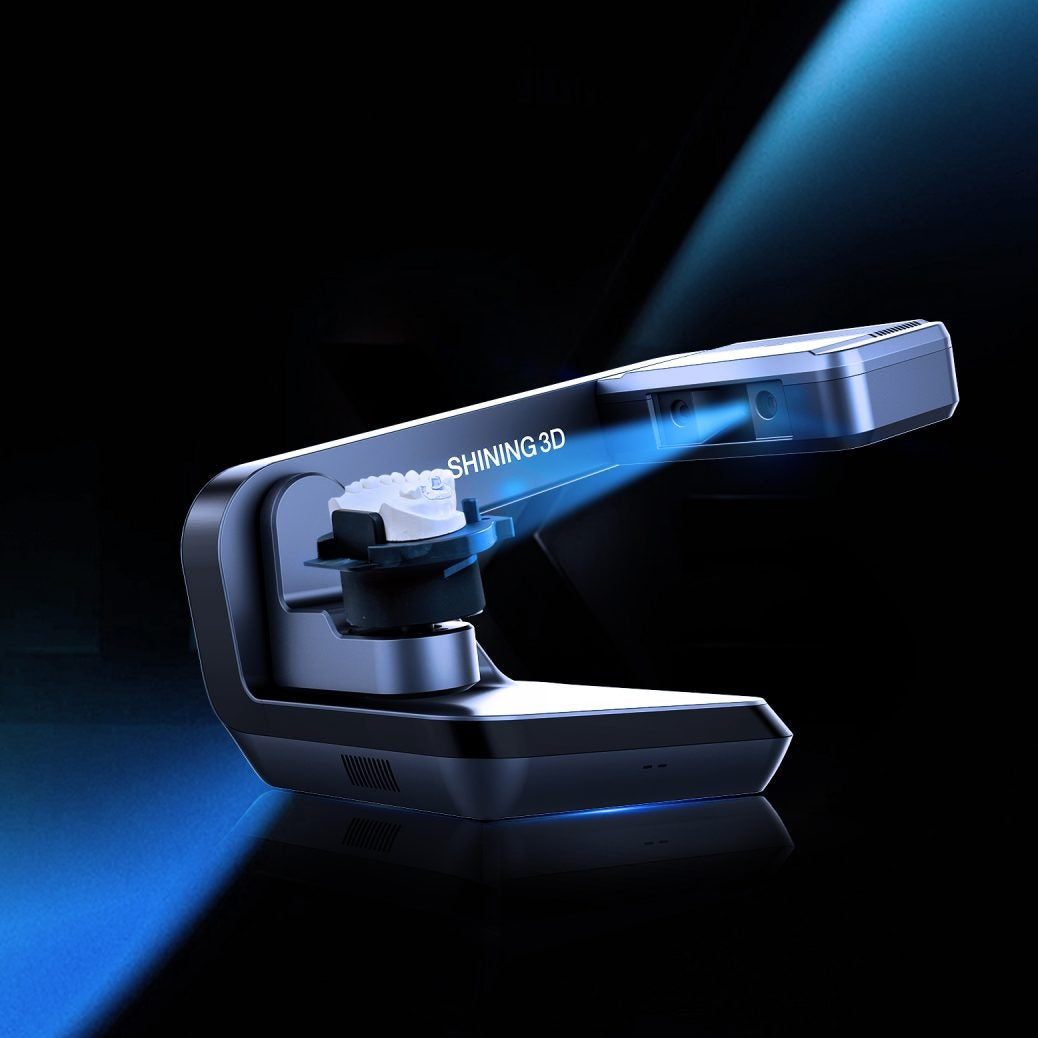

AutoScan-DS-EX Pro(H) Lab Scanner
€5.990,00 excl. VAT
Price incl. VAT · VAT invoice with every order
DPD / UPS courier delivery · usually 2–7 business days
EU companies with a valid VAT number buy without VAT – enter your VAT number at checkout.
AutoScan-DS-EX Pro(H) is a 5.0 MP generation 3D scanner for dental labs. It combines ultra-high accuracy, exceptional detail and excellent scanning speed, and offers a flexible workflow, background data processing and versatile scanning modes. Key benefits:• 5.0 MP generation – clearly captured...
Description- Consultations
- Help choosing the configuration and materials
- Delivery
- In Lithuania, the Baltic states and worldwide
Questions about this product?
Our product specialist will help you choose the right configuration.
Description
AutoScan-DS-EX Pro(H) is a 5.0 MP generation 3D scanner for dental labs. It combines ultra-high accuracy, exceptional detail and excellent scanning speed, and offers a flexible workflow, background data processing and versatile scanning modes.
Key benefits:
• 5.0 MP generation – clearly captured details
• Ultra-high accuracy – predictable fit
• Unmatched detail – clean margins and structures
• Exceptional scanning speed – faster order turnaround
• Flexible workflow – adaptable to lab procedures
• Background data processing – fewer operator steps
• Versatile scanning modes – for a variety of scenarios and needs

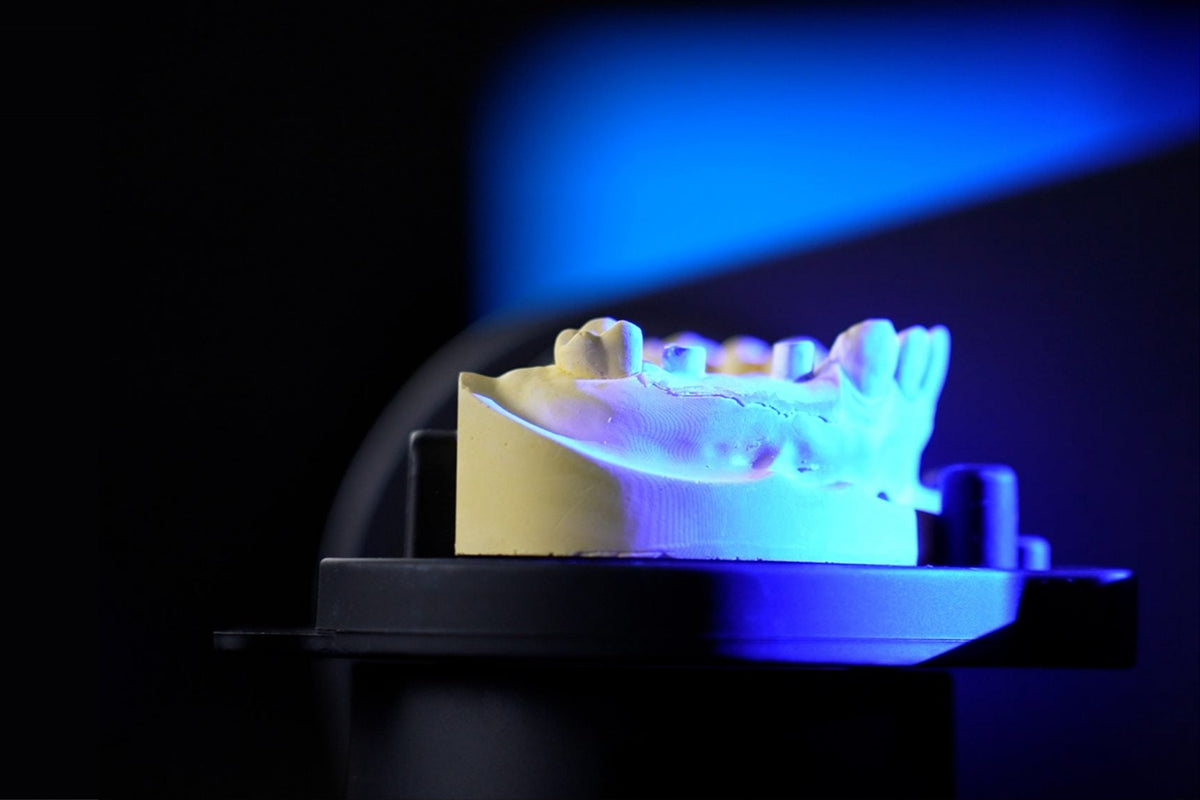

Exceptional accuracy
Scanning accuracy of ≤ 8 μm delivers reliable results and fully meets the requirements of various dental disciplines.

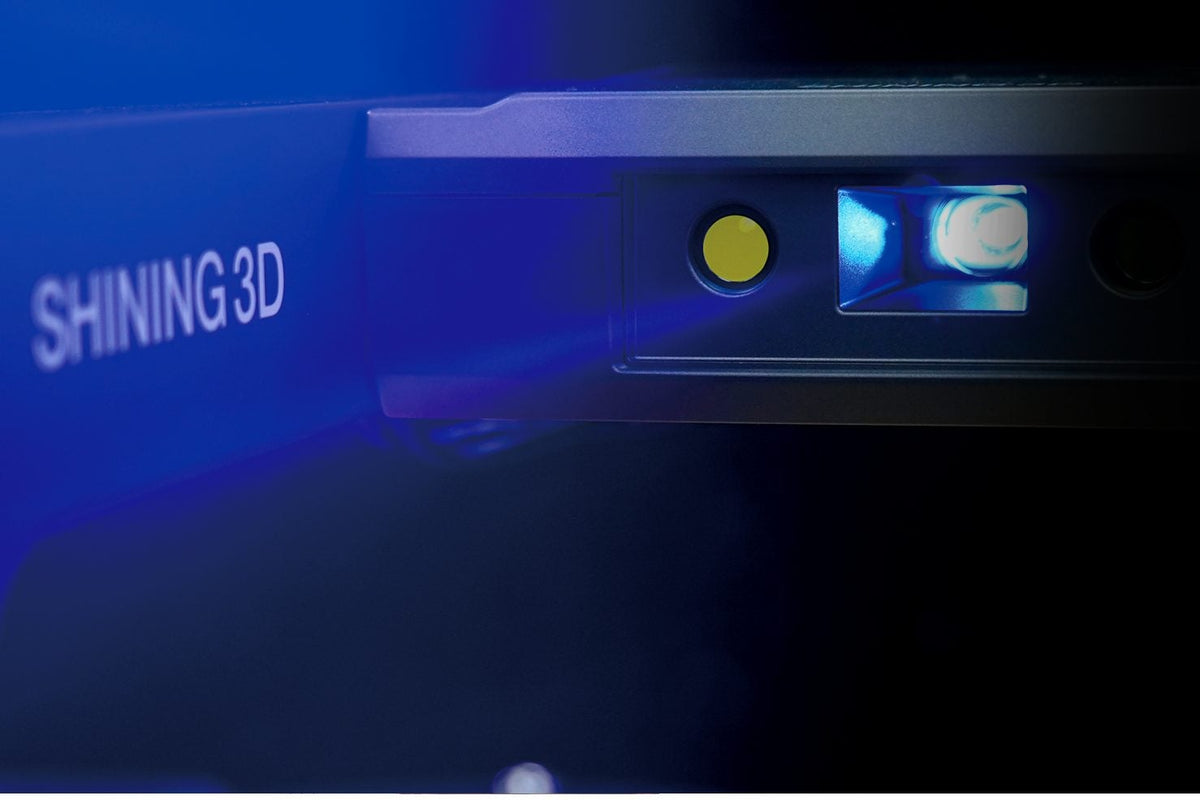

Unmatched detail
With two high-resolution 5.0 MP cameras, AutoScan-DS-EX Pro(H) meticulously captures every detail of the scanned objects.
Excellent scanning speed
• Bite: 6.5 s
• 1–4 dies / 5–8 dies: 21.5 s / 25.5 s
• Upper / lower arch: 14 s
• Impression: 31 s

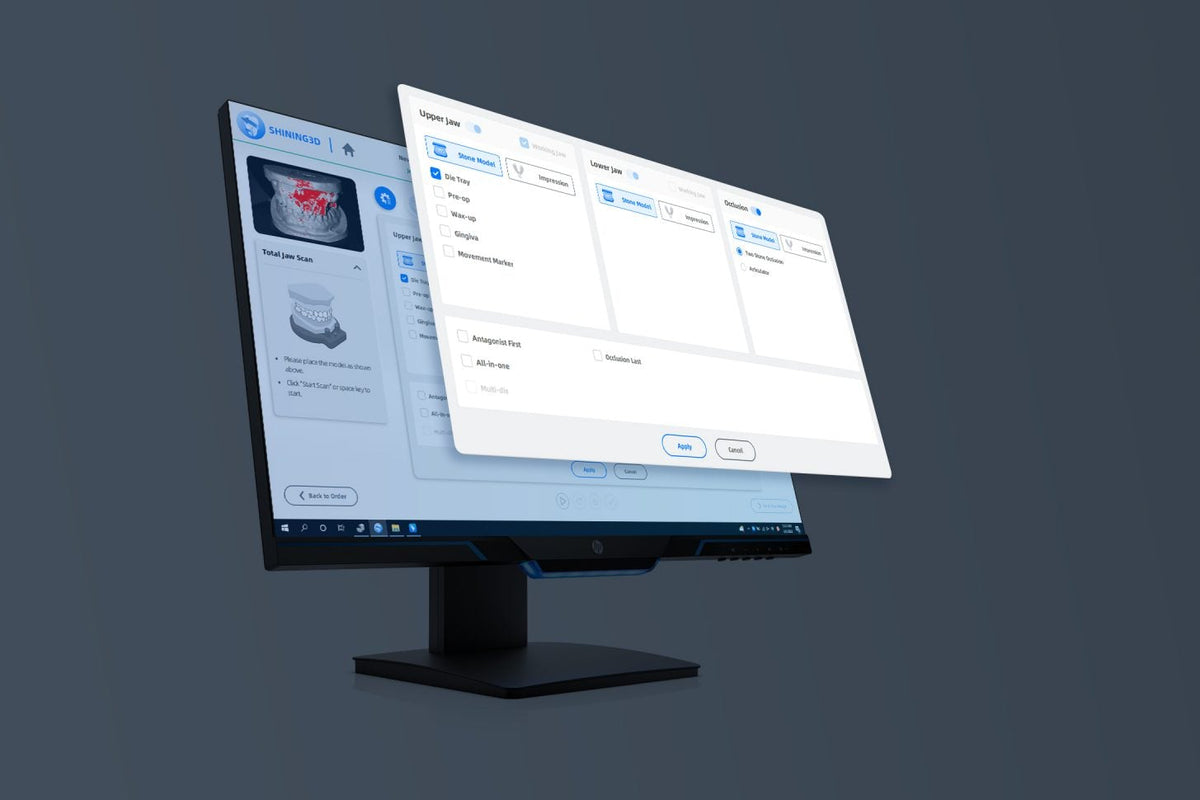

Flexible workflow
Configure the workflow the way that suits you and boost efficiency like never before. The all-in-one and triple tray modes deliver complete scan data in fewer steps.

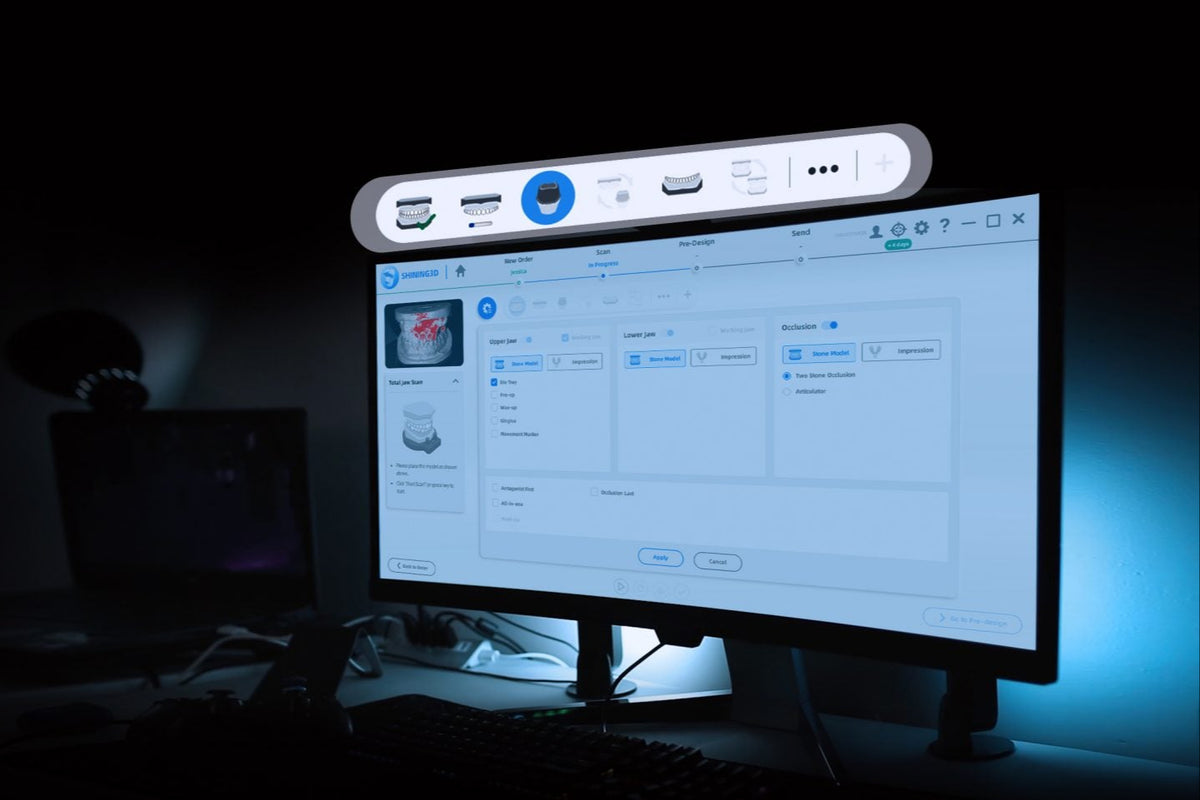

Background data processing
Scanning and background data processing can run simultaneously, increasing the efficiency of the whole process.

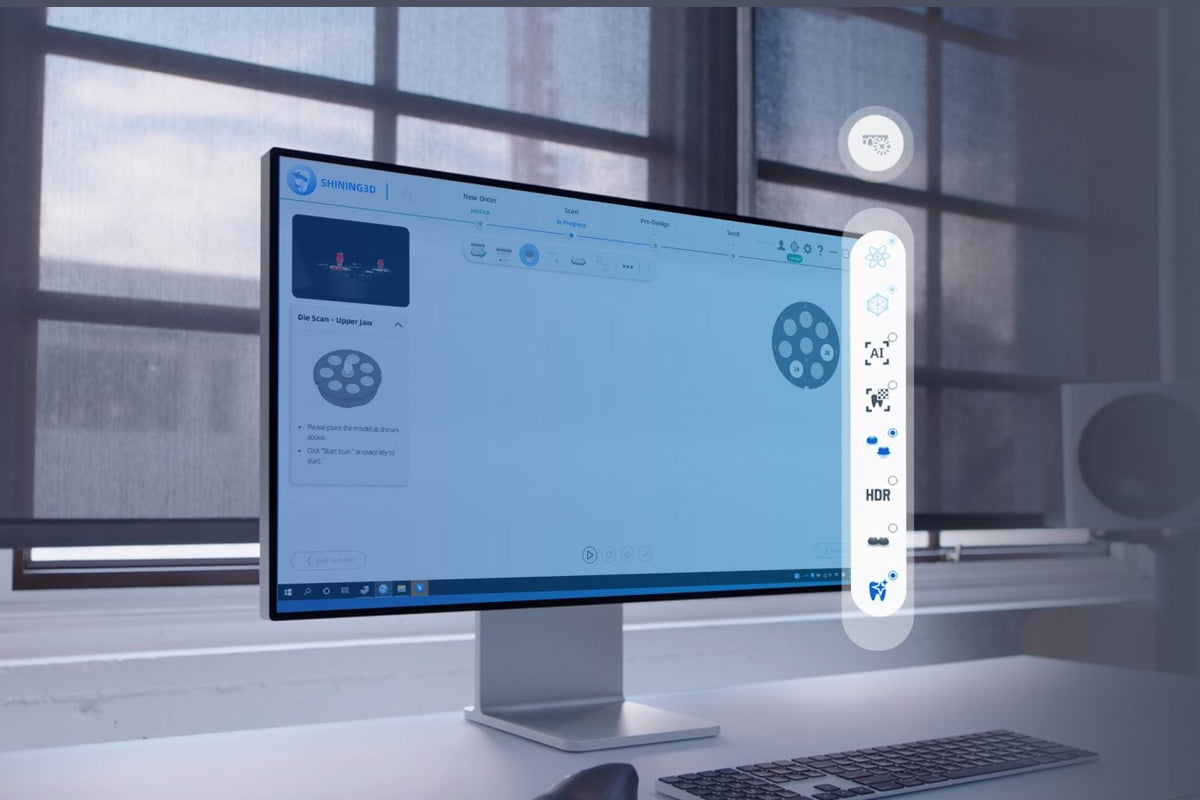

Versatile scanning modes
The new software for AutoScan-DS-EX Pro(H) supports many scanning modes, including:
• Multi Path Scan (multi-path scanning)
• High Quality Scan (high quality)
• AI Scan (AI-assisted)
• Texture Scan (texture / color)
• HDR Mode Scan (high dynamic range)
• Reduce High Brightness Scan (overexposure reduction)

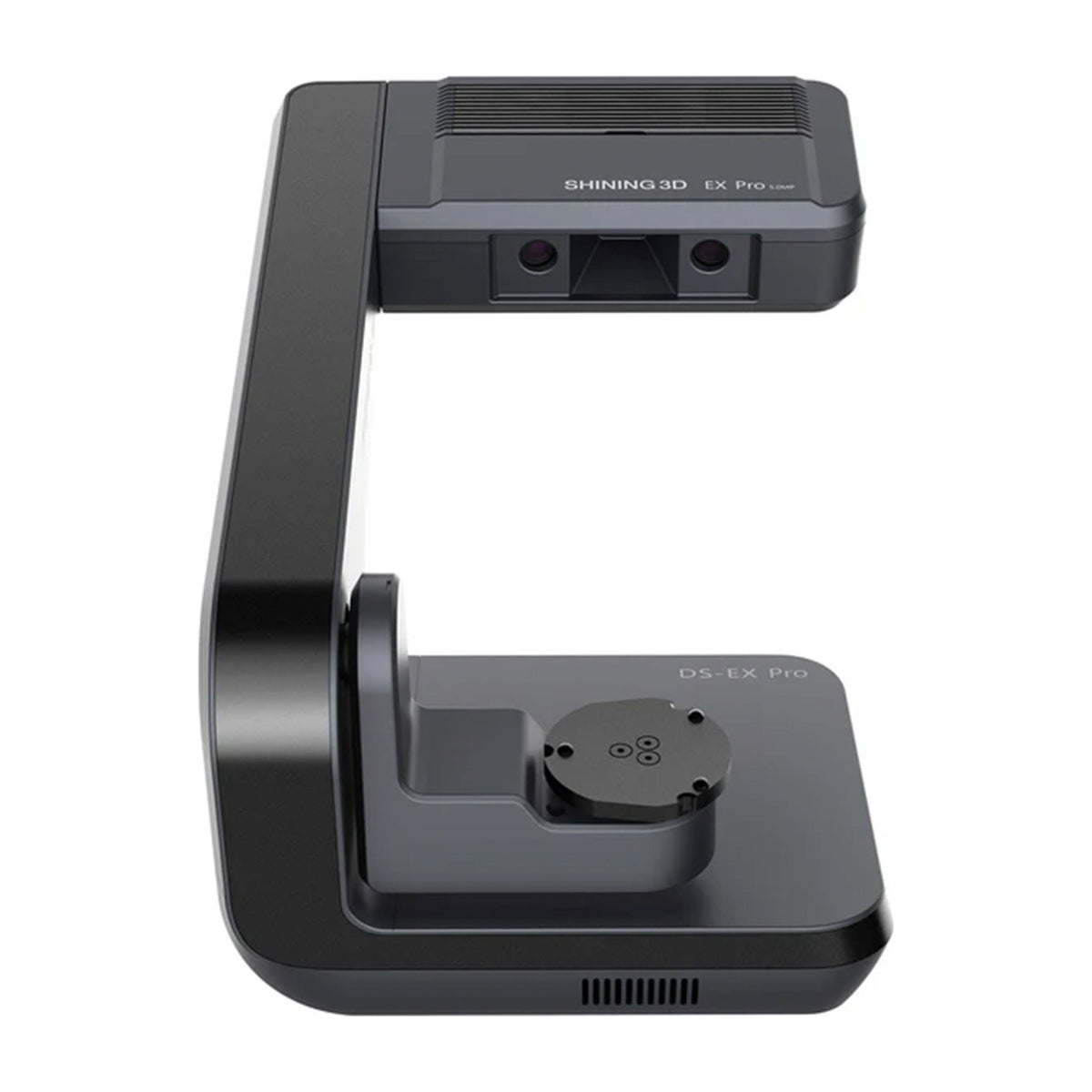

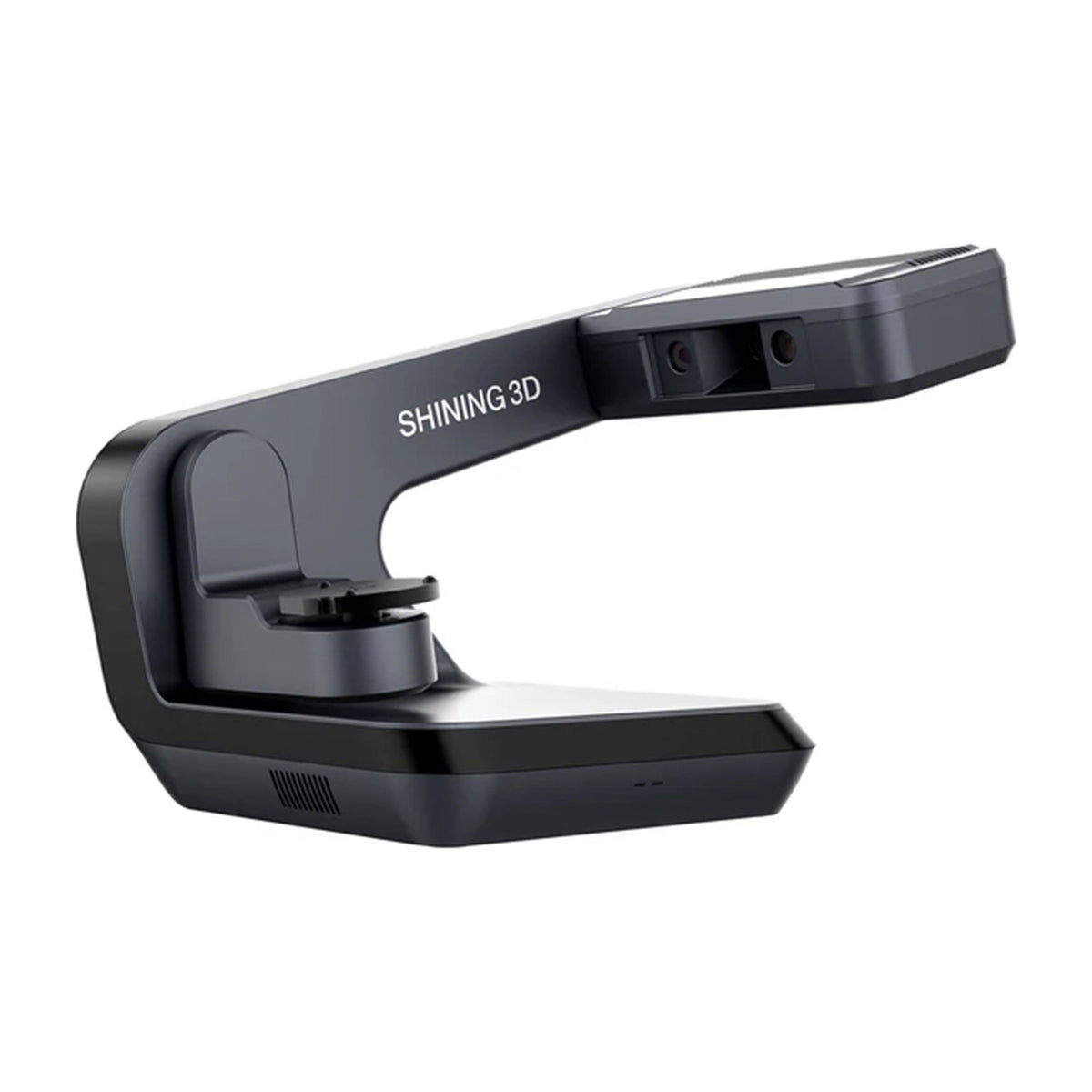

AutoScan-DS-EX Pro(H)

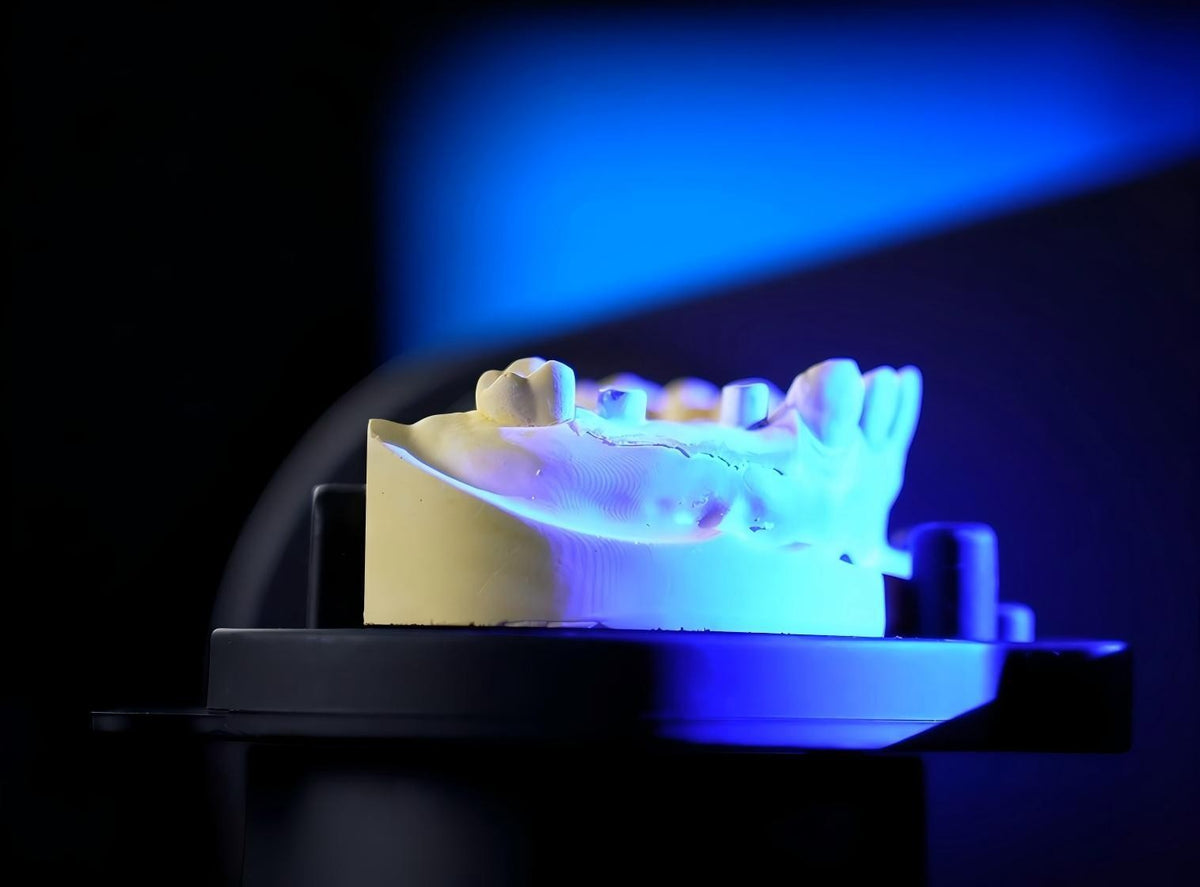

A dental 3D scanner developed and manufactured by SHINING 3D with broad functionality – for scanning impressions, plaster models, articulators, implant abutments and more. High-resolution cameras, advanced algorithms and an intuitive interface ensure excellent data quality and comfortable work.
Technical data
- Camera resolution
2 × 5,0 MP
- Accuracy
8 μm
- Scanning time
- – Bite
6,5 s
- – Upper / lower arch
14 s
- – 1–4 dies
21,5 s
- – 5–8 dies
25,5 s
- – Impression
31 s
- Articulator scanning
articulator transfer supported
- Output format
STL, PLY, OBJ
- Light source
blue light
- Dimensions
420 × 260 × 270 mm
- Weight
5,0 kg
- Interface
USB 3.0
- Power supply
DC 24 V
Frequently asked questions
How does the Pro(H) differ from the standard AutoScan-DS-EX Pro?
The Pro(H) has two 5.0 MP cameras (instead of 2.4 MP) and 8 μm accuracy – preparation margins and fine structures are reproduced better.
How long does scanning take?
Bite – 6.5 s, upper or lower arch – 14 s, 1–4 dies – 21.5 s, 5–8 dies – 25.5 s, impression – 31 s. Data is processed in the background, so you can scan the next model.
Is articulator scanning supported?
Yes – articulator transfer is available, so the jaw relation is transferred to the digital model. Output: STL, PLY, OBJ formats for any CAD software.
What are the computer and connection requirements?
The scanner connects via USB 3.0, power supply DC 24 V; it weighs 5 kg. We will agree on the exact computer configuration during the consultation based on your software.
