Direct printing
The retainer is printed directly from the digital design, without model printing or thermoforming.

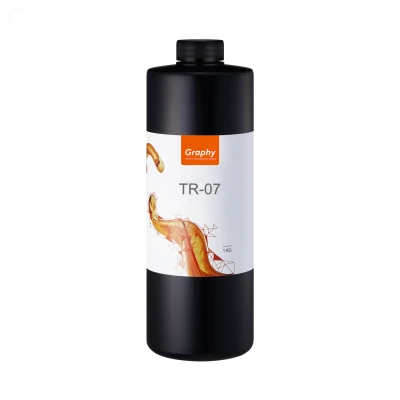

3D Graphy TR-07 Resin
€574,75
€475,00 excl. VAT
Price incl. VAT · VAT invoice with every order
DPD / UPS courier delivery · usually 2–7 business days
EU companies with a valid VAT number buy without VAT – enter your VAT number at checkout.
Graphy TR-07 – a clear, biocompatible photopolymer resin for direct 3D printing of retainers after orthodontic treatment. The retainer is printed directly from the digital design, so there is no need to print a model and thermoform a sheet.Compared with Graphy Tera...
Description- Consultations
- Help choosing the configuration and materials
- Delivery
- In Lithuania, the Baltics and worldwide
Questions about this product?
Our product specialist will help you choose the right configuration.
Description
Graphy TR-07 – a clear, biocompatible photopolymer resin for direct 3D printing of retainers after orthodontic treatment. The retainer is printed directly from the digital design, so there is no need to print a model and thermoform a sheet.
Compared with Graphy Tera Harz TC-85 aligner resin, TR-07 offers higher flexural strength and elastic modulus (according to the manufacturer, ≥ 60 MPa and ≥ 1600 MPa according to ISO 20795-2, vs. ≥ 50 MPa and ≥ 1500 MPa for TC-85). The resin has a limited shape memory function and is highly durable, making it suitable for long-wear retainers that must hold their shape over time.
Washing, removal of residual resin and post-curing are carried out according to the Graphy instructions for use.
- Clear – esthetic, barely noticeable retainer
- Stiffer than TC-85 – holds tooth position better
- Limited shape memory function
- Hardness ≥ 85 Shore D
- Direct printing without thermoforming steps
Higher stiffness
Flexural strength ≥ 60 MPa and elastic modulus ≥ 1600 MPa: higher than the TC-85 aligner resin.
For long-term wear
High durability and limited shape memory make it suitable for retainers worn after active treatment.
Technical data
- Indication
- retainers after orthodontic treatment
- Color
- clear
- Density
- 1,064 ± 0,02 g/cm³ (25 °C)
- Viscosity
- 800 ± 200 cps (25 °C, Brookfield)
- Solids content
- ≥ 98 % (80 °C × 1 h)
- Hardness (Shore D)
- ≥ 85
- Flexural strength
- ≥ 60 MPa (ISO 20795-2)
- Elastic modulus
- ≥ 1600 MPa (ISO 20795-2)
- Water solubility
- 1,0 μg/mm³ (ISO 20795-2)
